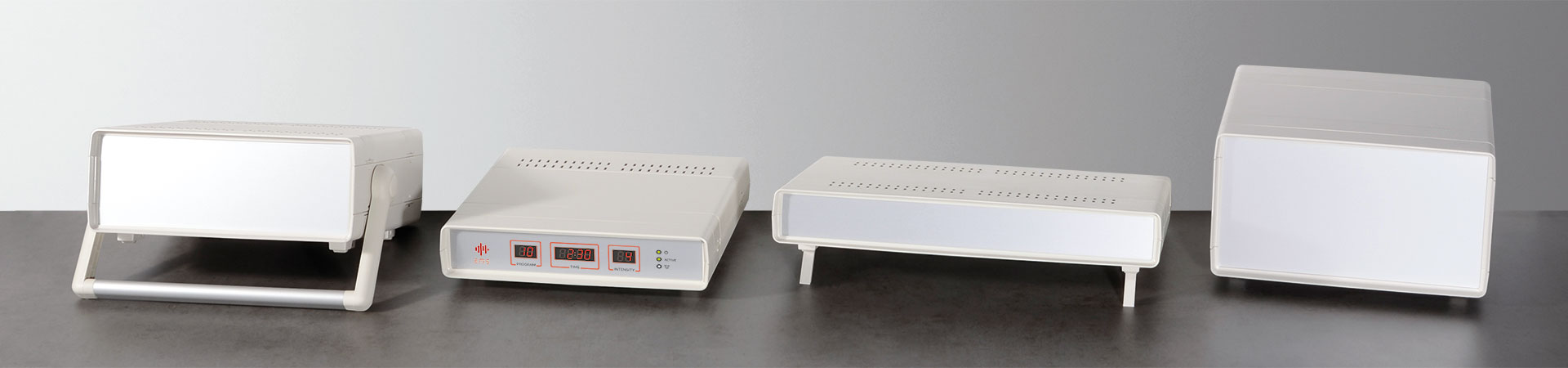

Euro Case 欧型机盒

Euro Case 欧型机盒

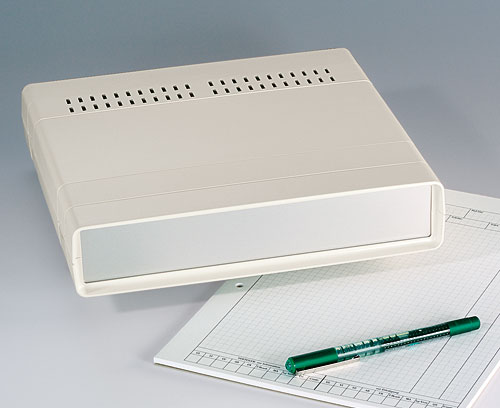

大格式桌面用机盒

Euro Case 欧型机盒提供最大的组装简易性: 毫不需要螺钉,机盒外壳、边条及侧板只通过压力就稳固卡紧

  • 广泛的桌面或移动式应用
  • 充足的操作和接口区域界面

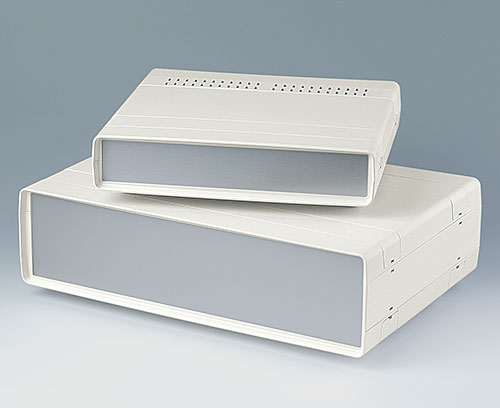

  • 2 个标准宽度 42 TE 和 63 TE

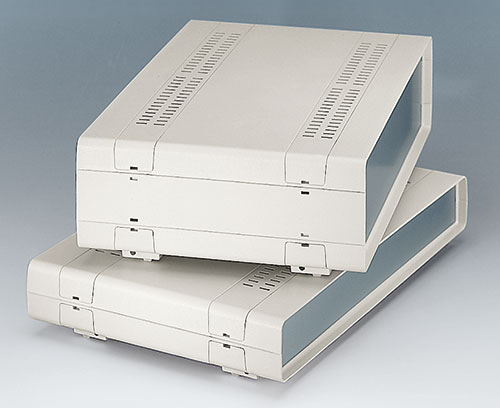

  • 4 个标准高度 1 HE、 2 HE、3 HE、 6 HE; 可选配并可相互组合的侧板具备 3 个高度单位 (0,5 HE, 1 HE 和 2 HE),由此可根据空间要求提供更多的机盒类型

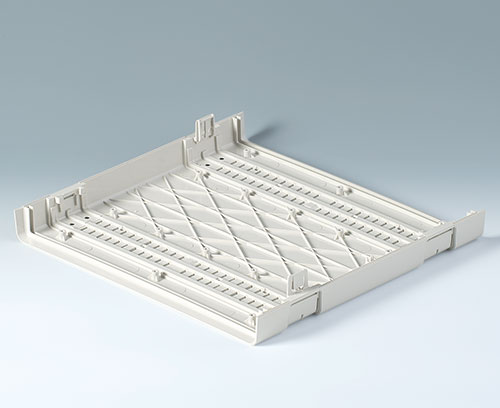

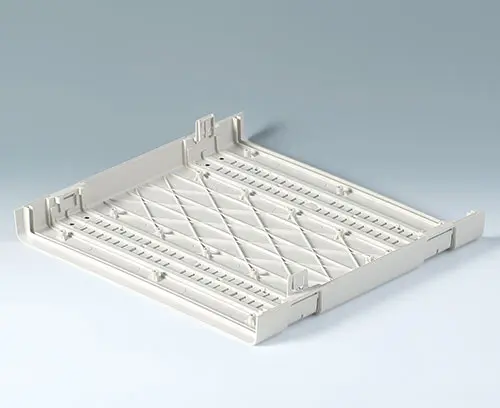

  • 内设的注塑加强肋使怡人的轻重量机盒非常稳固并防扭转

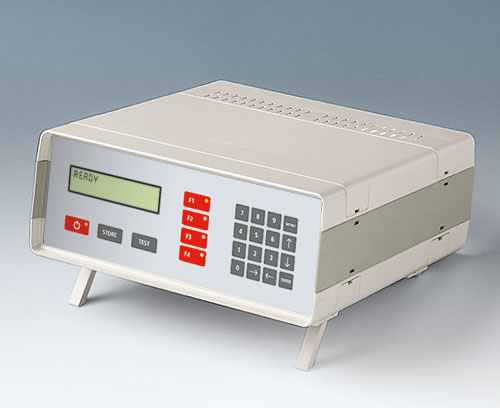

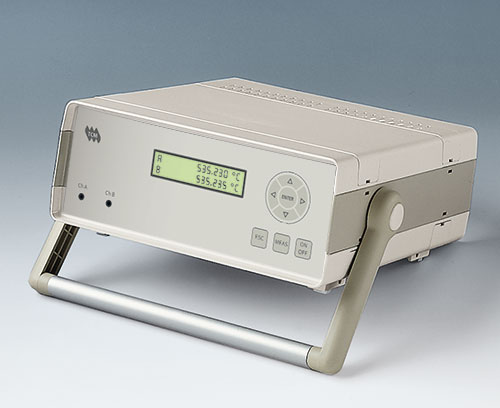

  • 通过可折盒脚或坚固的支架使机盒达到符合人体工程学的倾斜方位,也可用作为携带手柄
  • 带通风槽的板条解决机盒的通风问题
  • 通过独特的 OKW 卡扣结构达到组装机盒的最小量装配工作
  • 铝前板和后板提供简易的插入装配
  • 通过选择外壳饰条或侧面部件,如配合您公司的颜色,可以创建达到符合您公司特殊形象的产品
  • 防护等级 < IP 40
  • 固定柱用于固定电路板和元器件
  • 安全稳固的橡胶脚包括在供货范围内

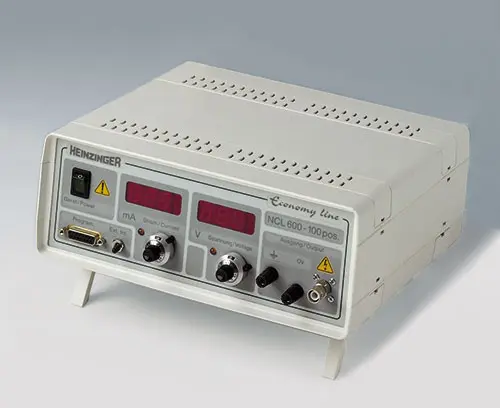

  • 应用示例

应用范围

  • 计算机外围设备、调制解调器和界面接口
  • 网络技术
  • 工艺工程控制

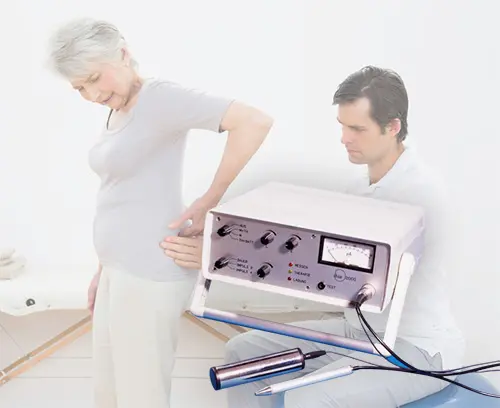

  • 电子医疗器械的数据采集
  • 测量控制技术
  • 类型
  • 配件

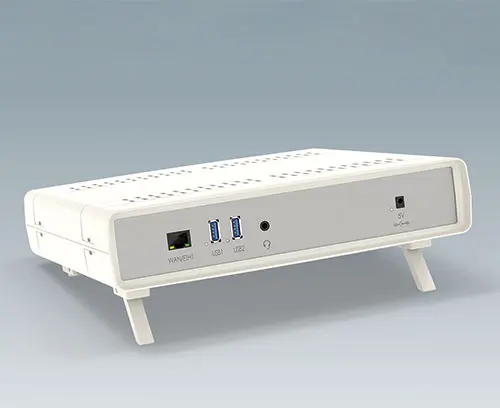

  • 按客户要求修改加工

选择类型和规格大小,然后点击“选择”。



完整机盒

EURO CASE 完整机盒

定制组合用零配件

EURO CASE 定制组合用零配件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)

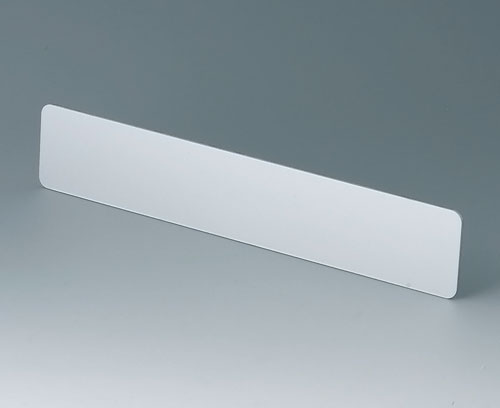

A0314270 Front / rear panel 42 TE 1 HE

A0314270

Front / rear panel 42 TE 1 HE Front/rear panel for case 42 TE 1 HE.

Supply 1 front panel

关闭

A0314270

Front / rear panel 42 TE 1 HE Aluminium
matt anodised
250.8x46.3x2mm

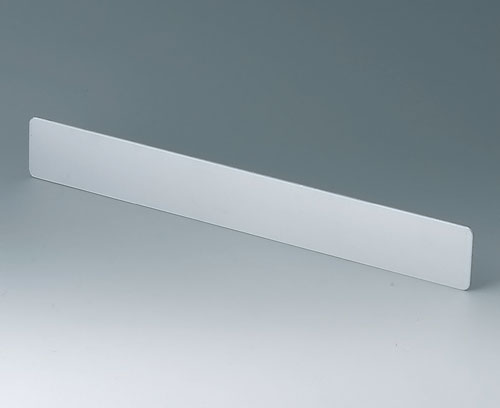

A0316370 Front / rear panel 63 TE 1 HE

A0316370

Front / rear panel 63 TE 1 HE Front/rear panel for case 63 TE 1 HE.

Supply 1 front panel

关闭

A0316370

Front / rear panel 63 TE 1 HE Aluminium
matt anodised
357.8x46.3x2mm
A0324270 Front / rear panel 42 TE 2 HE

A0324270

Front / rear panel 42 TE 2 HE Front/rear panel for case 42 TE 2 HE.

Supply 1 front panel

关闭

A0324270

Front / rear panel 42 TE 2 HE Aluminium
matt anodised
250.8x90.7x2mm
A0326370 Front / rear panel 63 TE 2 HE

A0326370

Front / rear panel 63 TE 2 HE Front/rear panel for case 63 TE 2 HE.

Supply 1 front panel

关闭

A0326370

Front / rear panel 63 TE 2 HE Aluminium
matt anodised
357.8x90.7x2mm
A0334270 Front / rear panel 42 TE 3 HE

A0334270

Front / rear panel 42 TE 3 HE Front/rear panel for case 42 TE 3 HE.

Supply 1 front panel

关闭

A0334270

Front / rear panel 42 TE 3 HE Aluminium
matt anodised
250.8x135.2x2mm
A0336370 Front / rear panel 63 TE 3 HE

A0336370

Front / rear panel 63 TE 3 HE Front/rear panel for case 63 TE 3 HE.

Supply 1 front panel

关闭

A0336370

Front / rear panel 63 TE 3 HE Aluminium
matt anodised
357.8x135.2x2mm

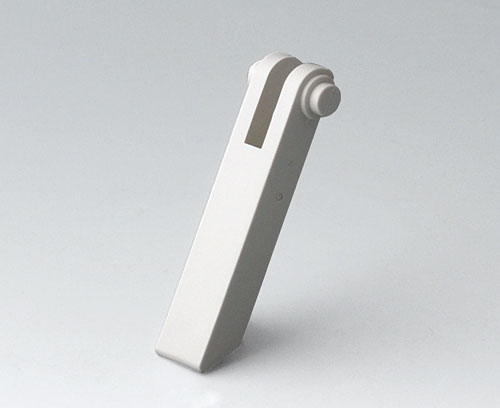

A0350007 Tilt foot

A0350007

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

关闭

A0350007

Tilt foot ABS (UL 94 HB)
off-white RAL 9002

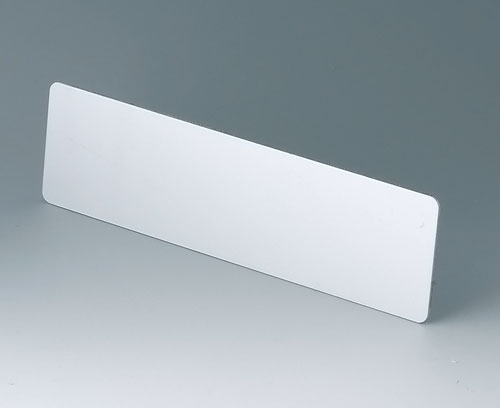

A0354270 Front / rear panel 42 TE 1.5 HE

A0354270

Front / rear panel 42 TE 1.5 HE Front/rear panel for case 42 TE 1.5 HE.

Supply 1 front panel

关闭

A0354270

Front / rear panel 42 TE 1.5 HE Aluminium
matt anodised
250.8x68.5x2mm
A0366370 Front / rear panel 63 TE 6 HE

A0366370

Front / rear panel 63 TE 6 HE Front/rear panel for case 63 TE 6 HE.

Supply 1 front panel

关闭

A0366370

Front / rear panel 63 TE 6 HE Aluminium
matt anodised
268.6x357.8x2mm

产品类型用于 Euro Case 欧型机盒

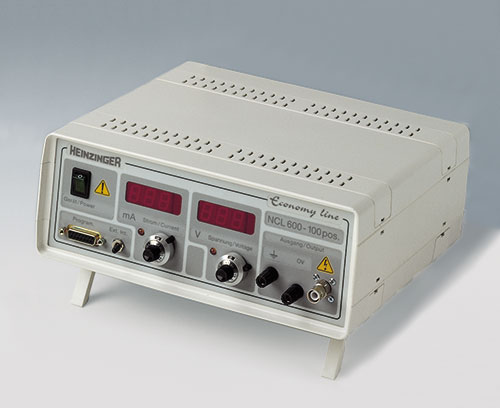

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
