A0324270
Front / rear panel 42 TE 2 HE
Front/rear panel for case 42 TE 2 HE.
Supply1 front panel
添加到购物车内
A0110270
Side panel 1 HE
Side panel 1 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0110270
Side panel 1 HE产品已添加到关注清单中
off-white RAL 9002
250x44.45mm
A0110280
Side panel 1 HE
Side panel 1 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0110280
Side panel 1 HE产品已添加到关注清单中
pebble grey RAL 7032
250x44.45mm
A0111270
Side panel 1 HE, for handle mounting
Side panel 1 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0111270
Side panel 1 HE, for handle mounting产品已添加到关注清单中
off-white RAL 9002
250x44.45mm
A0111280
Side panel 1 HE, for handle mounting
Side panel 1 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0111280
Side panel 1 HE, for handle mounting产品已添加到关注清单中
pebble grey RAL 7032
250x44.45mm
A0114170
Shell 42 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).
Supply 1 shell
A0114170
Shell 42 TE产品已添加到关注清单中
off-white RAL 9002
260x250x27mm
A0114370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0114370
Snap-in panel, without slots产品已添加到关注清单中
off-white RAL 9002
A0124370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0124370
Snap-in panel, with slots产品已添加到关注清单中
off-white RAL 9002
A0134370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).
Supply 1 snap-in panel without slots, with feet
A0134370
Snap-in panel, without slots, with feet产品已添加到关注清单中
off-white RAL 9002
A0144370
Snap-in panel with, slots, with feet
Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0144370
Snap-in panel with, slots, with feet产品已添加到关注清单中
off-white RAL 9002

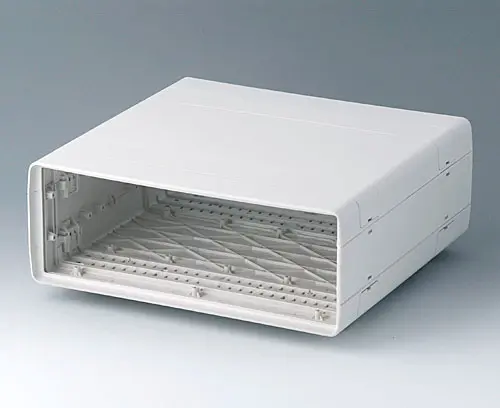

A0224070
EURO CASE 42 TE, without handle
Modular construction without screws. Fixing support in the shells and side panels.
Supply 2 shells, 2 side panels 1 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet
A0224070
EURO CASE 42 TE, without handle产品已添加到关注清单中
off-white RAL 9002
260x250x98.5mm
A0224170
EURO CASE 42 TE, without handle
Modular construction without screws. Fixing support in the shells and side panels.
Supply 2 shells, 2 side panels 1 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each
A0224170
EURO CASE 42 TE, without handle产品已添加到关注清单中
off-white RAL 9002
260x250x98.5mm
A0224270
EURO CASE 42 TE, without handle
Modular construction without screws. Fixing support in the shells and side panels.
Supply 2 shells, 2 side panels 1 HE, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet
A0224270
EURO CASE 42 TE, without handle产品已添加到关注清单中
off-white RAL 9002
260x250x98.5mm

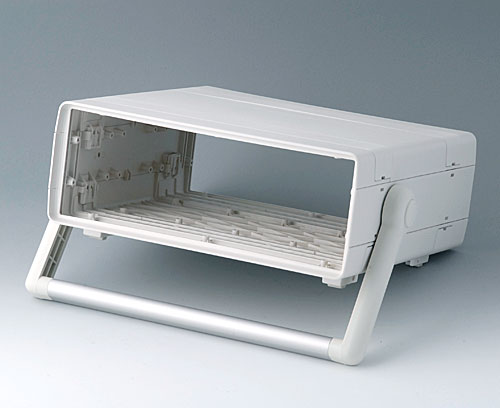

A0224470
EURO CASE 42 TE, with handle
Modular construction without screws with handle. Fixing support in the shells and side panels.
Supply 2 shells, 2 side panels 1 HE with hole, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet, 1 handle
A0224470
EURO CASE 42 TE, with handle产品已添加到关注清单中
off-white RAL 9002
260x250x98.5mm
A0224570
EURO CASE 42 TE, with handle
Modular construction without screws with handle. Fixing support in the shells and side panel.
Supply 2 shells, 2 side panels 1 HE with hole, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each, 1 handle
A0224570
EURO CASE 42 TE, with handle产品已添加到关注清单中
off-white RAL 9002
260x250x98.5mm
A0224670
EURO CASE 42 TE, with handle
Modular construction without screws with handle. Fixing support in the shells and side panels.
Supply 2 shells, 2 side panels 1 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle
A0224670
EURO CASE 42 TE, with handle产品已添加到关注清单中
off-white RAL 9002
260x250x98.5mm
A0344216
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344216
Handle 42 TE产品已添加到关注清单中
off-white RAL 9002
A0344217
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344217
Handle 42 TE产品已添加到关注清单中
off-white RAL 9002
A0344218
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344218
Handle 42 TE产品已添加到关注清单中
pebble grey RAL 7032
- 技术数据
-
图纸或资料
- 采购有关数据
宽度
250.8 mm
高度
90.7 mm
厚度
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 420 KB
- AutoCAD DWG-File 1,009 KB
- AutoCAD DXF-File 4,008 KB
Weight/1 part
121 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A0324270请务必索取报价！
