DIN 标准导轨接线盒

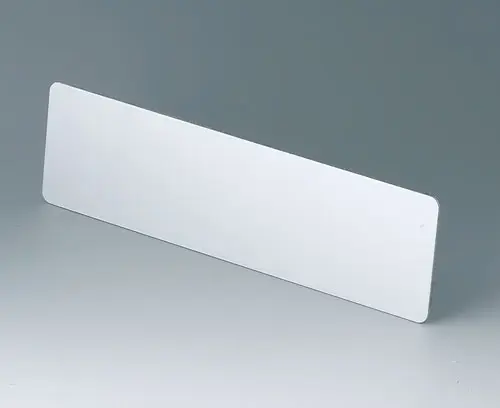

A0354270
Front / rear panel 42 TE 1.5 HE
Front/rear panel for case 42 TE 1.5 HE.
Supply1 front panel
添加到购物车内
A0105270
Side panel 0.5 HE
Side panel 0.5 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0105270
Side panel 0.5 HE产品已添加到关注清单中
off-white RAL 9002
250x22.25mm
A0105280
Side panel 0.5 HE
Side panel 0.5 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0105280
Side panel 0.5 HE产品已添加到关注清单中
pebble grey RAL 7032
250x22.25mm

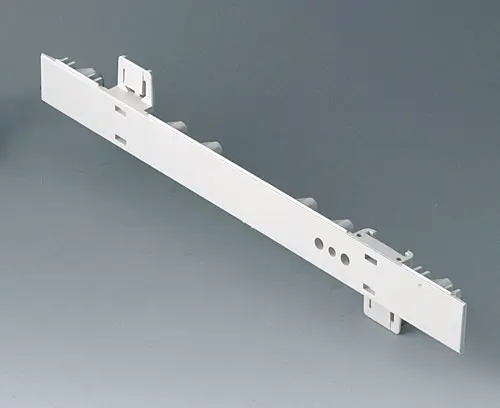

A0106270
Side panel 0.5 HE, for handle mounting
Side panel 0.5 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0106270
Side panel 0.5 HE, for handle mounting产品已添加到关注清单中
off-white RAL 9002
250x22.25mm

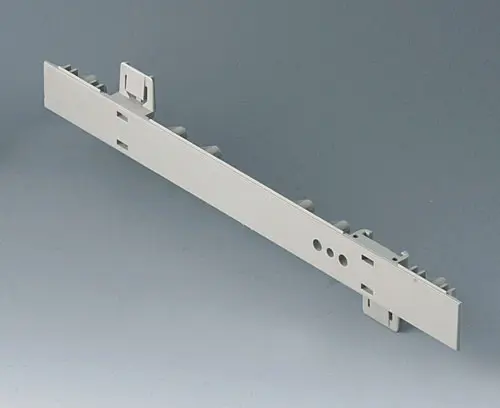

A0106280
Side panel 0.5 HE, for handle mounting
Side panel 0.5 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).
Supply 1 side panel
A0106280
Side panel 0.5 HE, for handle mounting产品已添加到关注清单中
pebble grey RAL 7032
250x22.25mm
A0114170
Shell 42 TE
The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).
Supply 1 shell
A0114170
Shell 42 TE产品已添加到关注清单中
off-white RAL 9002
260x250x27mm
A0114370
Snap-in panel, without slots
Snap-in panel without slots for the top. For locking in the case shells.
Supply 1 snap-in panel without slots
A0114370
Snap-in panel, without slots产品已添加到关注清单中
off-white RAL 9002

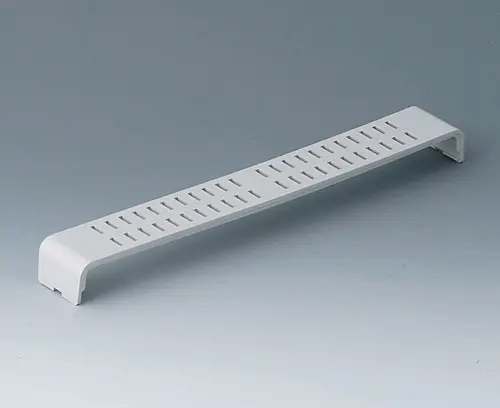

A0124370
Snap-in panel, with slots
Snap-in panel with slots for the top. For locking in the case shells.
Supply 1 snap-in panel with slots
A0124370
Snap-in panel, with slots产品已添加到关注清单中
off-white RAL 9002

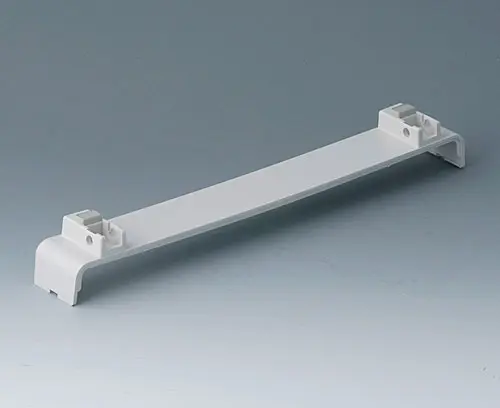

A0134370
Snap-in panel, without slots, with feet
Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).
Supply 1 snap-in panel without slots, with feet
A0134370
Snap-in panel, without slots, with feet产品已添加到关注清单中
off-white RAL 9002

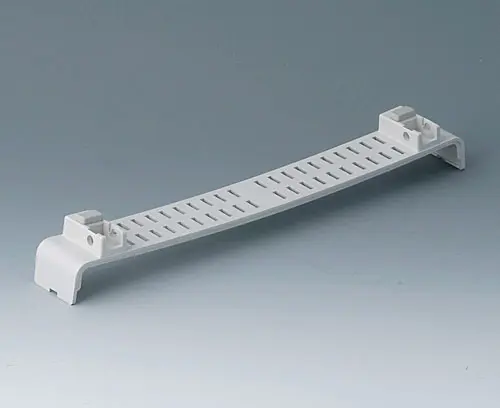

A0144370
Snap-in panel with, slots, with feet
Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).
Supply 1 snap-in panel with slots
A0144370
Snap-in panel with, slots, with feet产品已添加到关注清单中
off-white RAL 9002

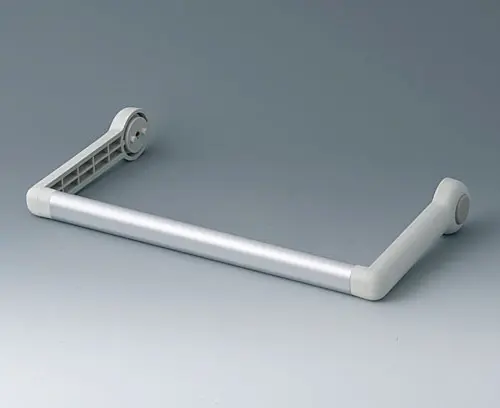

A0344216
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344216
Handle 42 TE产品已添加到关注清单中
off-white RAL 9002

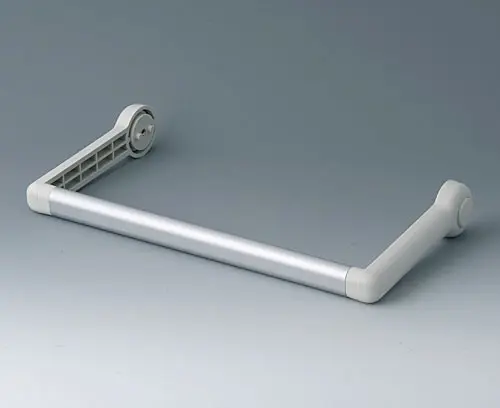

A0344217
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344217
Handle 42 TE产品已添加到关注清单中
off-white RAL 9002
A0344218
Handle 42 TE
For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.
Supply 2 side arms, 1 aluminium section, 2 fastenings screws
A0344218
Handle 42 TE产品已添加到关注清单中
pebble grey RAL 7032
- 技术数据
-
图纸或资料
- 采购有关数据
宽度
250.8 mm
高度
68.5 mm
厚度
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 76 KB
- AutoCAD DWG-File 273 KB
- AutoCAD DXF-File 669 KB
Weight/1 part
92 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Germany
