DIN 标准导轨接线盒
A9020265

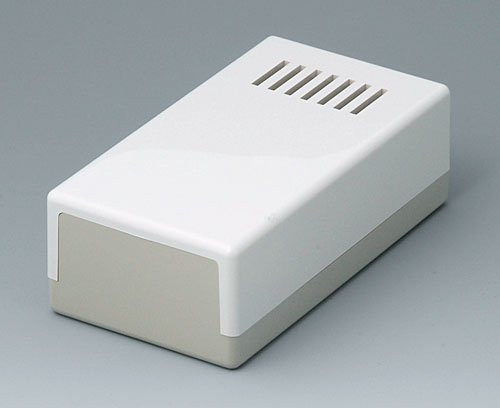

FLAT-PACK CASE 120 S
Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.
Supply1 top and base part, assembly kit and 4 screws for the mounting of PCBs
“挂墙支架” 配件
A9120000
Supply 1 assembly kit with 4/2 screws and counternuts
A9120000
Assembly kit for wall mounting
B1350048
Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit
B1350048
Wall suspension elementspebble grey RAL 7032
“螺钉” 附件
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)附件
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mm
A9250807
Supply 1 tilt foot bar, assembly kit
A9250807
Tilt foot baroff-white RAL 9002
A9250817
Supply 1 tilt foot bar, assembly kit
A9250817
Tilt foot baroff-white RAL 9002
Bottom part pebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 172 KB
- AutoCAD DWG-File 364 KB
- AutoCAD DXF-File 817 KB
- 3 维 PDF 版 (Acrobat Reader 软件) (产品旋转 360°,部件显示或隐藏等功能) 1,036 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008669.x_t 931 KB
- 00008669.STEP 2,291 KB
- 00008669.SAT 2,163 KB
(OKW product)
特制机盒:我们可根据您的需求,对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒,仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9020265请务必索取报价!
