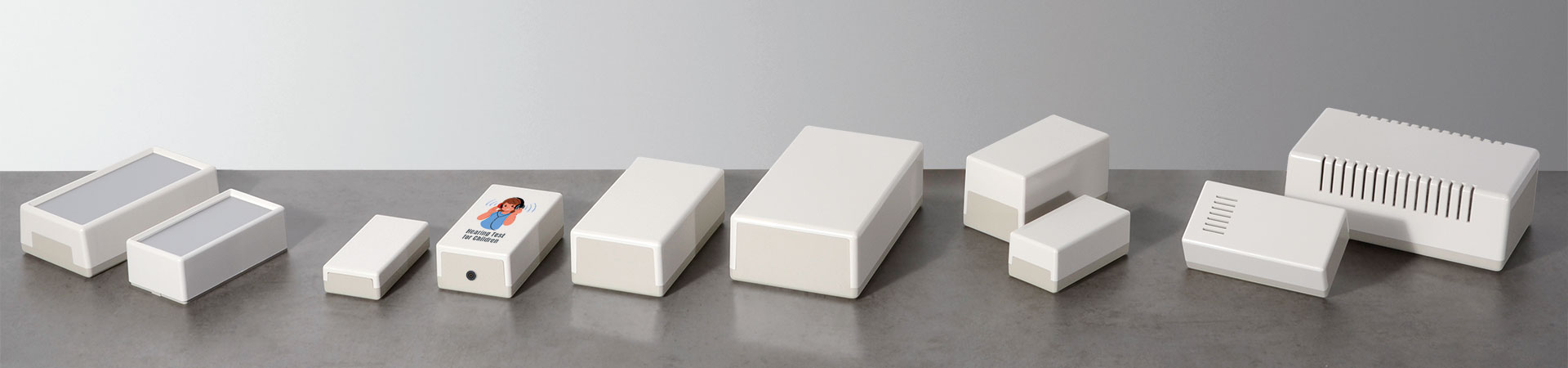

Flat-Pack Case 扁平机盒

普通塑料机盒

OKW- Flat-Pack Case 扁平机盒是一款非常经济实惠的用于封装电子产品的机盒。

  • 具备不同的尺寸、高度和类型的桌式和墙挂机盒

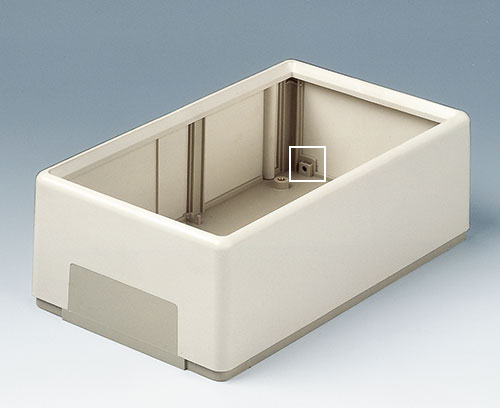

  • 下盒侧面敞开，特别方便所有装配和服务工作

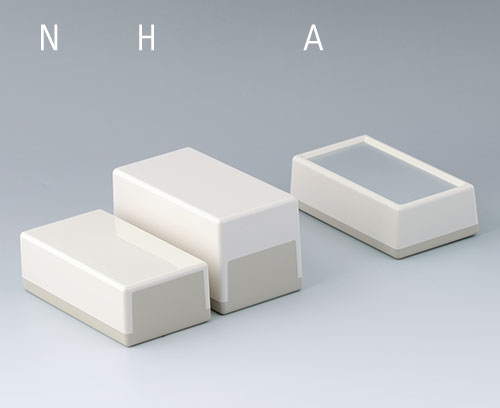

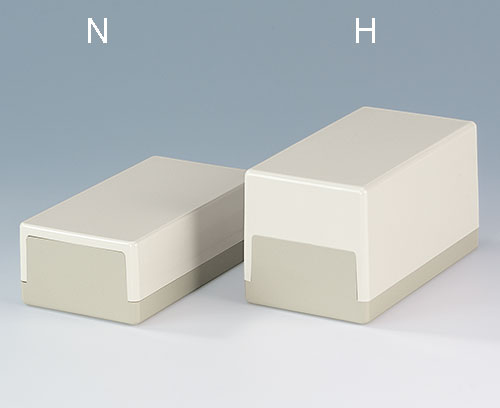

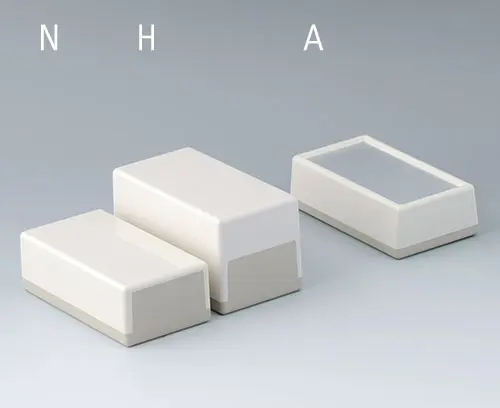

  • 提供较低上盒 (N) 和较高上盒 (H) 款式

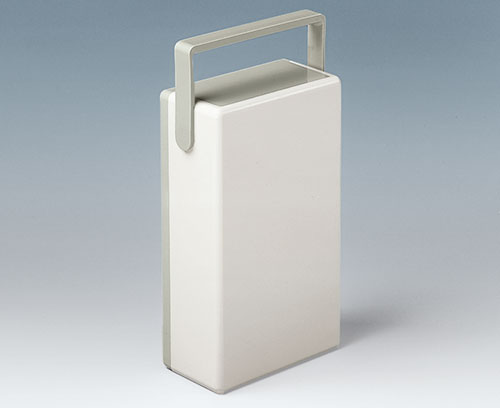

  • 带手柄的类型易于倾斜放置或舒适携带

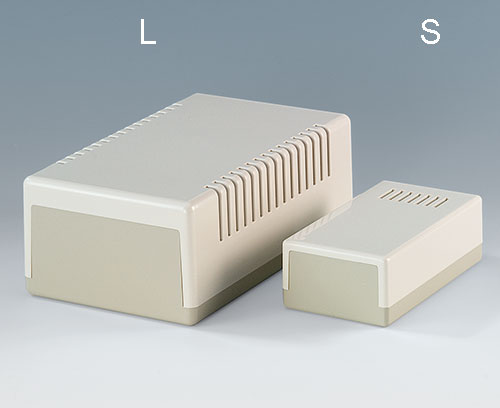

  • 提供带通风槽部件利于强发热件的散热 （189L）
  • 提供带有音槽的顶部件适合用于发音的小机盒 （120 S）

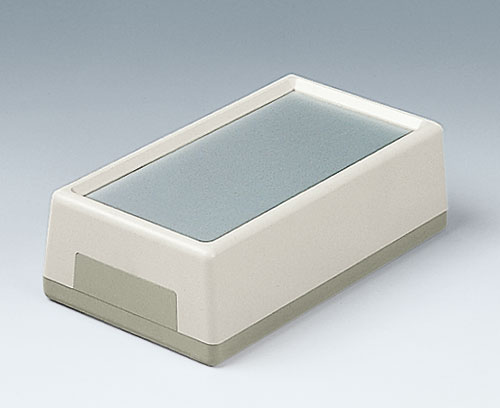

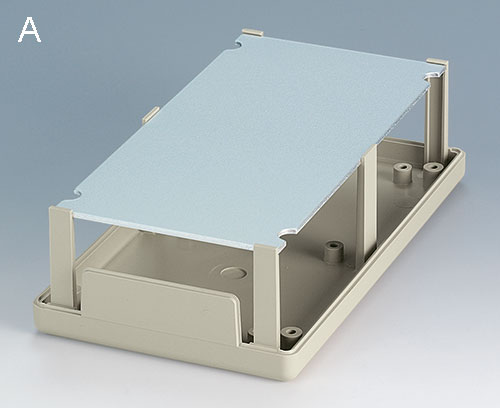

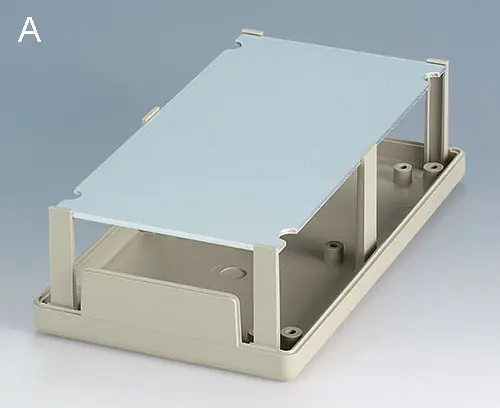

  • A 型适合铝前面板应用; 加高的机盒边框保护操作件和字标
  • 防护等级 IP 40 （无槽）

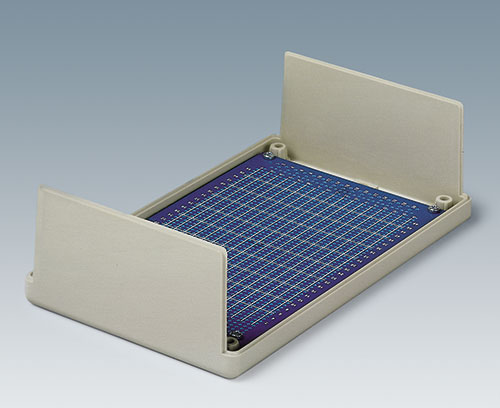

  • 固定柱用于固定电路板和元器件
PDF 导出

应用范围

用于电子和电气设备的通用机盒，例如，在监控技术中作为控制设备， 信号和控制系统，医疗和实验室技术， 电脑外设， 工业自动化。

A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9010065

FLAT-PACK CASES 100 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
100x50x25mm
A9011065 FLAT-PACK CASES 100 H, Vers. I

A9011065

FLAT-PACK CASES 100 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9011065

FLAT-PACK CASES 100 H, Vers. I
产品已添加到关注清单中

off-white RAL 9002
100x50x40mm
A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9020065

FLAT-PACK CASES 120 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
120x65x40mm
A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9020265

FLAT-PACK CASE 120 S
产品已添加到关注清单中

off-white RAL 9002
120x65x40mm
A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9021065

FLAT-PACK CASE 120 H, Vers. I
产品已添加到关注清单中

off-white RAL 9002
120x65x65mm
A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9030065

FLAT-PACK CASES 150 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
150x80x50mm
A9030165 FLAT-PACK CASES 150 N, Vers. II

A9030165

FLAT-PACK CASES 150 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9030165

FLAT-PACK CASES 150 N, Vers. II
产品已添加到关注清单中

off-white RAL 9002
150x80x50mm
A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version without handle bar.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9031065

FLAT-PACK CASE 150 H, Vers. I
产品已添加到关注清单中

off-white RAL 9002
150x80x80mm
A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

A9032065

FLAT-PACK CASES 150 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
150x80x55mm
A9040065 FLAT-PACK CASES 189 N, Vers. I

A9040065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9040065

FLAT-PACK CASES 189 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
189x110x60mm
A9040165 FLAT-PACK CASES 189 N, Vers. II

A9040165

FLAT-PACK CASES 189 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9040165

FLAT-PACK CASES 189 N, Vers. II
产品已添加到关注清单中

off-white RAL 9002
189x110x60mm
A9041065 FLAT-PACK CASE 189 H, Vers. I

A9041065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9041065

FLAT-PACK CASE 189 H, Vers. I
产品已添加到关注清单中

off-white RAL 9002
189x110x97mm
A9041165 FLAT-PACK CASE 189 H, Vers. II

A9041165

FLAT-PACK CASE 189 H, Vers. II Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9041165

FLAT-PACK CASE 189 H, Vers. II
产品已添加到关注清单中

off-white RAL 9002
189x110x97mm
A9042065 FLAT-PACK CASE 189 H, Vers. I

A9042065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9042065

FLAT-PACK CASE 189 H, Vers. I
产品已添加到关注清单中

off-white RAL 9002
189x110x120mm
A9043065 FLAT-PACK CASES 189 N, Vers. I

A9043065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9043065

FLAT-PACK CASES 189 N, Vers. I
产品已添加到关注清单中

off-white RAL 9002
189x110x70mm
A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

A9043265

FLAT-PACK CASE 189 L
产品已添加到关注清单中

off-white RAL 9002
189x110x70mm
A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

A9520165

FLAT-PACK CASE 120 A
产品已添加到关注清单中

off-white RAL 9002
120x65x40mm
A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

A9530165

FLAT-PACK CASE 150 A
产品已添加到关注清单中

off-white RAL 9002
150x85x45mm
A9540165 FLAT-PACK CASE 210 A

A9540165

FLAT-PACK CASE 210 A Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

A9540165

FLAT-PACK CASE 210 A
产品已添加到关注清单中

off-white RAL 9002
210x125x70mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
产品已添加到关注清单中
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
产品已添加到关注清单中
A9100008 Snap-lock

A9100008

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

A9100008

Snap-lock
产品已添加到关注清单中

natural-coloured
A9120000 Assembly kit for wall mounting

A9120000

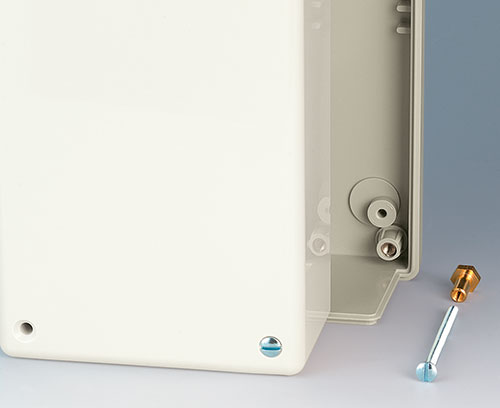

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9120000

Assembly kit for wall mounting
产品已添加到关注清单中
A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9130000

Assembly kit for wall mounting
产品已添加到关注清单中
A9132000 Assembly kit for wall mounting

A9132000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9132000

Assembly kit for wall mounting
产品已添加到关注清单中
A9140000 Assembly kit for wall mounting

A9140000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

A9140000

Assembly kit for wall mounting
产品已添加到关注清单中
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

A9172107

Belt/Pocket clip
产品已添加到关注清单中

off-white RAL 9002
62x30mm
A9195201 Front panel 120 A

A9195201

Front panel 120 A Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

A9195201

Front panel 120 A
产品已添加到关注清单中

matt anodised
113x58x1mm
A9195301 Front panel 150 A

A9195301

Front panel 150 A Front panel for FLAT-PACK CASE A9530165.

Supply 1 front panel

A9195301

Front panel 150 A
产品已添加到关注清单中

matt anodised
141.8x71.6x1.5mm
A9195401 Front panel 210 A

A9195401

Front panel 210 A Front panel for FLAT-PACK CASE A9540165.

Supply 1 front panel

A9195401

Front panel 210 A
产品已添加到关注清单中

matt anodised
201x116x1.5mm
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
产品已添加到关注清单中
transparent
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
产品已添加到关注清单中
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250807

Tilt foot bar
产品已添加到关注清单中

off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250817

Tilt foot bar
产品已添加到关注清单中

off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

B1350048

Wall suspension elements
产品已添加到关注清单中

pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

B1360048

Wall suspension elements
产品已添加到关注清单中

pebble grey RAL 7032

产品类型用于 Flat-Pack Case 扁平机盒

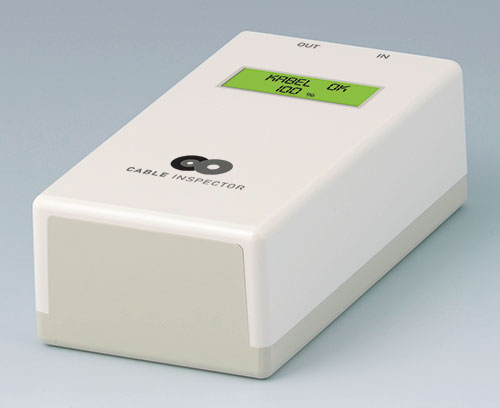

如何体现您的特殊产品？ 如有需要，我们执行所有必要的修改和精加工，提供组装完毕的机盒。
