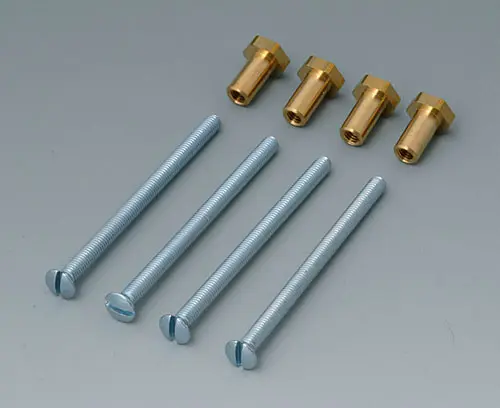

A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting

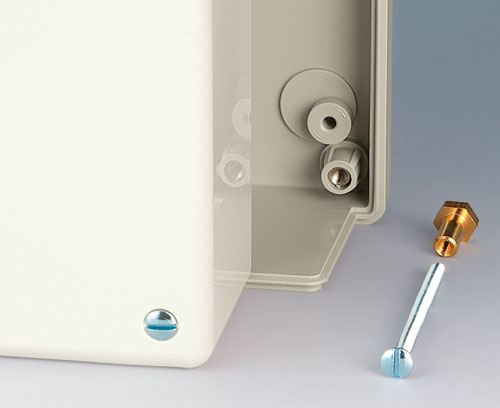

Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply

1 assembly kit with 4/2 screws and counternuts

  • 应用于

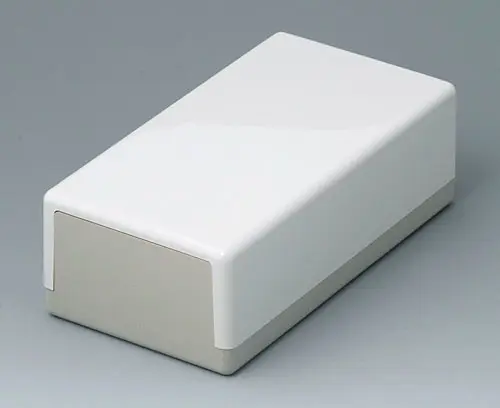

A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

关闭

A9030065

FLAT-PACK CASES 150 N, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40
  • 技术数据
  • 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
14 g
Customs tariff number
(OKW product)
73181595
Country of manufacture
Germany
