DIN 标准导轨接线盒
A9520165
FLAT-PACK CASE 120 A
Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.
Supply1 top and base part, assembly kit
需加附件使产品完整
A9195201

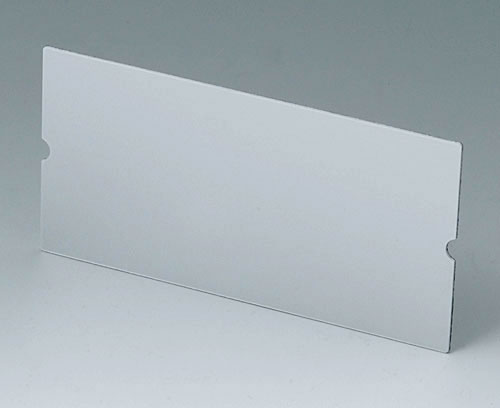

Supply 1 front panel
A9195201
Front panel 120 Amatt anodised
113x58x1mm
“挂墙支架” 配件
B1350048
Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit
B1350048
Wall suspension elementspebble grey RAL 7032
“螺钉” 附件
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)附件
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mm
A9250807
Supply 1 tilt foot bar, assembly kit
A9250807
Tilt foot baroff-white RAL 9002
A9250817
Supply 1 tilt foot bar, assembly kit
A9250817
Tilt foot baroff-white RAL 9002
Bottom part pebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 168 KB
- AutoCAD DWG-File 369 KB
- AutoCAD DXF-File 840 KB
- 3 维 PDF 版 (Acrobat Reader 软件) (产品旋转 360°,部件显示或隐藏等功能) 335 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009896.x_t 486 KB
- 00009896.STEP 1,227 KB
- 00009896.SAT 1,025 KB
(OKW product)
特制机盒:我们可根据您的需求,对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒,仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9520165请务必索取报价!
