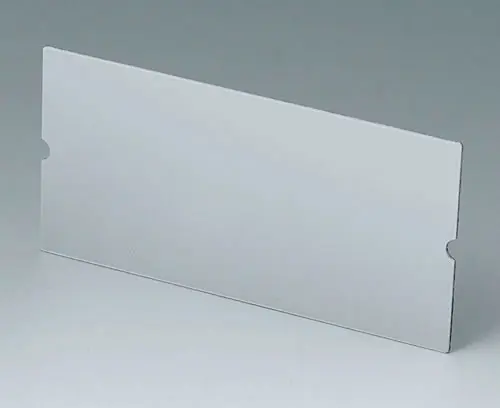

A9195201 Front panel 120 A

A9195201

Front panel 120 A

Front panel for FLAT-PACK CASE A9520165.

Supply

1 front panel

  • 应用于
  • 按客户要求修改加工
A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

关闭

A9520165

FLAT-PACK CASE 120 A
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40

Customising options for A9195201

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
matt anodised
Length
113 mm
Width
58 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
17 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
