A9030165

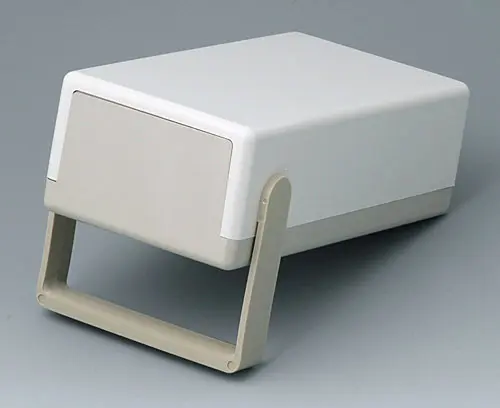

FLAT-PACK CASES 150 N, Vers. II
Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.
VersionWith handle bar
Supply1 top and base part, assembly kit and 4 screws for the mounting of PCBs
“螺钉” 附件
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
A0308031
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
A0308132
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)附件
A9210290
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmBottom part pebble grey RAL 7032
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 183 KB
- AutoCAD DWG-File 379 KB
- AutoCAD DXF-File 884 KB
- 3 维 PDF 版 (Acrobat Reader 软件) (产品旋转 360°,部件显示或隐藏等功能) 1,198 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009884.x_t 1,200 KB
- 00009884.STEP 2,451 KB
- 00009884.SAT 3,368 KB
(OKW product)
特制机盒:我们可根据您的需求,对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒,仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9030165请务必索取报价!
