C7025091 IN-BOX

C7025091

IN-BOX

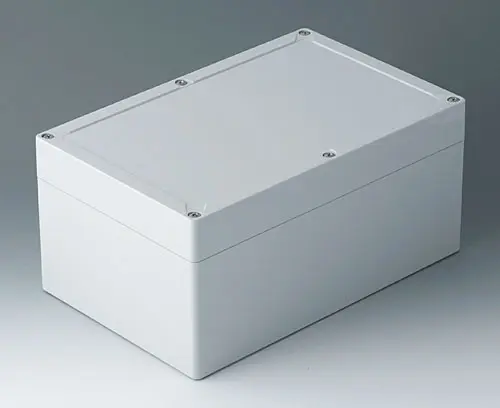

Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply

1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

  • 适配系统部件
  • 按客户要求修改加工

“保护等级” 附件

C2306917 Pressure equalisation element M6x0.75

C2306917

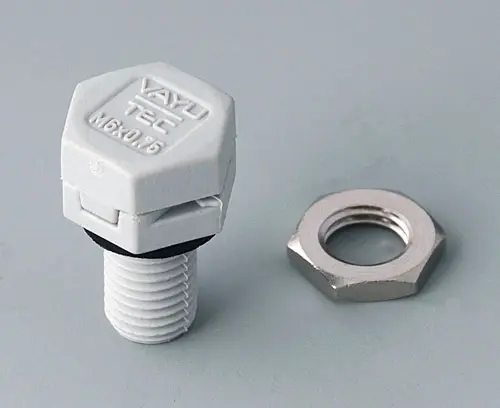

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2306917

Pressure equalisation element M6x0.75
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

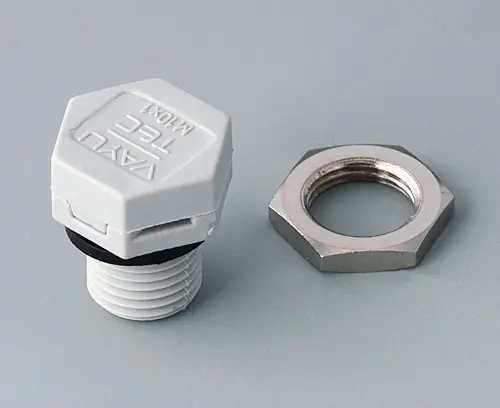

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2310917

Pressure equalisation element M10x1
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2320137

C2320137

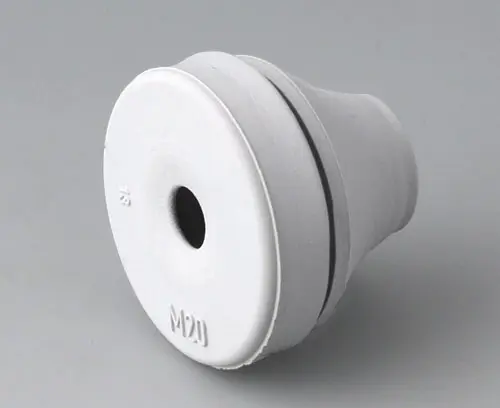

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

关闭

C2320137

Cable grommet
产品已添加到关注清单中
EPDM
light grey RAL 7035
IP 67
C7100138 Security kit

C7100138

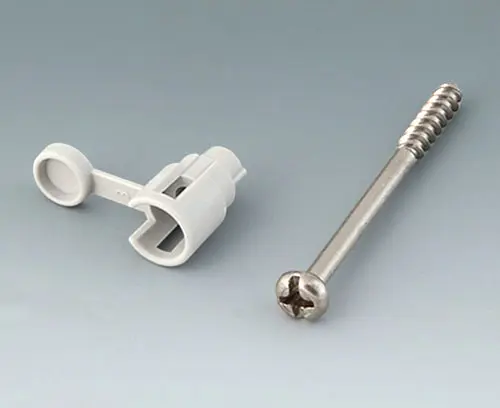

Security kit To secure the enclosure against unauthorised access.

Supply 1 security kit

关闭

C7100138

Security kit
产品已添加到关注清单中
PP

“挂墙支架” 配件

C7100092 Wall-mounting brackets

C7100092

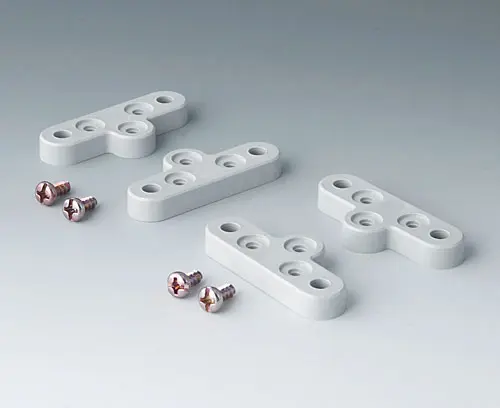

Wall-mounting brackets Wall-mounting brackets made of plastic for external wall mounting. Installation above, below or laterally, as required.

Supply 4 wall-mounting brackets incl. fasteners

关闭

C7100092

Wall-mounting brackets
产品已添加到关注清单中
PC GF15
C7100142 Inside hinge

C7100142

Inside hinge For converting the top part of the enclosure into a folding door.

Supply 2 hinges, fastening screws with drill template

关闭

C7100142

Inside hinge
产品已添加到关注清单中
PC

“螺钉” 附件

C7100167 Screw 3.9 x 9 mm

C7100167

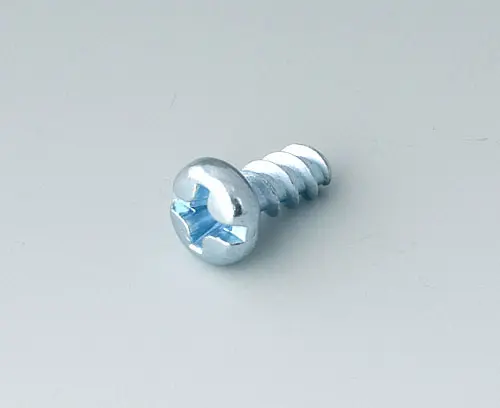

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

关闭

C7100167

Screw 3.9 x 9 mm
产品已添加到关注清单中

附件

C7117056 Mounting plate

C7117056

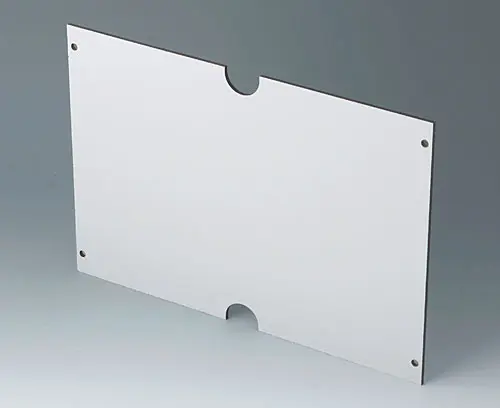

Mounting plate Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply 1 mounting plate

关闭

C7117056

Mounting plate
产品已添加到关注清单中
220.5x152.5x2.5mm
C7117077 Standard DIN rail, Type TH 35

C7117077

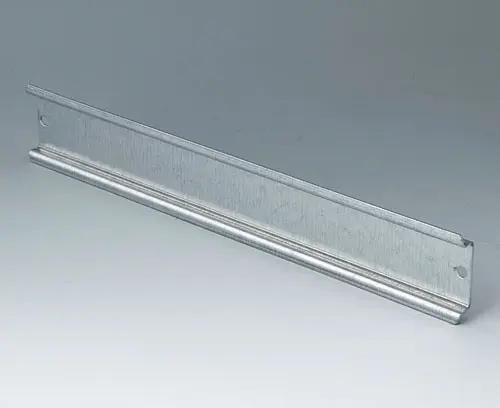

Standard DIN rail, Type TH 35 Standard DIN-rail in accordance with DIN EN 60715, 35 x 7.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 35

关闭

C7117077

Standard DIN rail, Type TH 35
产品已添加到关注清单中
Steel
220x35x7.5mm
C7117087 Standard DIN rail, Type TH 15

C7117087

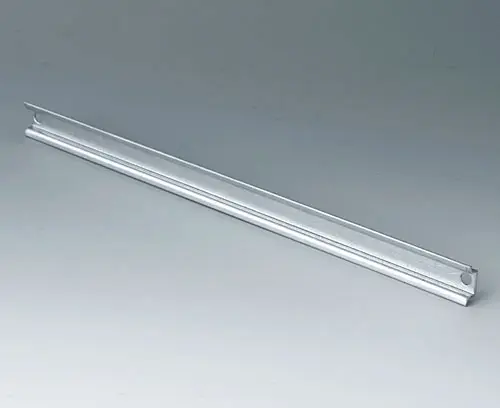

Standard DIN rail, Type TH 15 Standard DIN-rail in accordance with DIN EN 60715, 15 x 5.5 mm. For mounting terminal blocks and components in the enclosure.

Supply 1 standard DIN rail TH 15

关闭

C7117087

Standard DIN rail, Type TH 15
产品已添加到关注清单中
Steel
220x15x5.5mm

Customising options for C7025091

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
颜色
light grey RAL 7035
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
252 mm
Width
162 mm
Height
120 mm
电路板长度,下盒
220.5 mm
电路板宽度,下盒
152.5 mm
Keypad length
224.65 mm
Keypad width
134.65 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
679 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
