B3015137 MOTEC S, high/high

B3015137

MOTEC S, high/high

Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply

1 top and base part, 4 self-adhesive case feet

  • 适配系统部件
  • 按客户要求修改加工

需加附件使产品完整

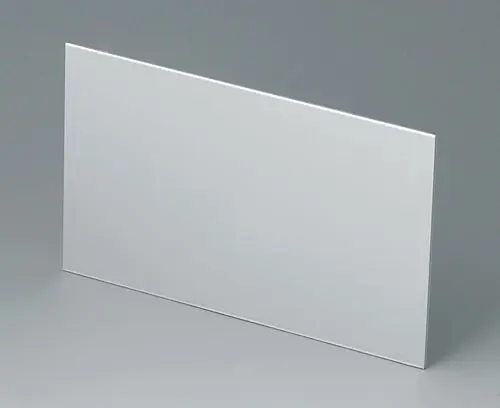

B3115120 Front / rear panel S

B3115120

Front / rear panel S Suitable for MOTEC S B3015137 with high base and top part.

Supply 1 front panel

关闭

B3115120

Front / rear panel S
产品已添加到关注清单中
Aluminium
matt anodised
136x82x1.5mm

“螺钉” 附件

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

关闭

A9199008

Set of screws
产品已添加到关注清单中

Customising options for B3015137

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
防护等级
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
155 mm
Depth
105 mm
Height
90 mm
电路板长度,下盒
128 mm
电路板宽度,下盒
90 mm
Keypad length
132 mm
Keypad width
78 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
174 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
