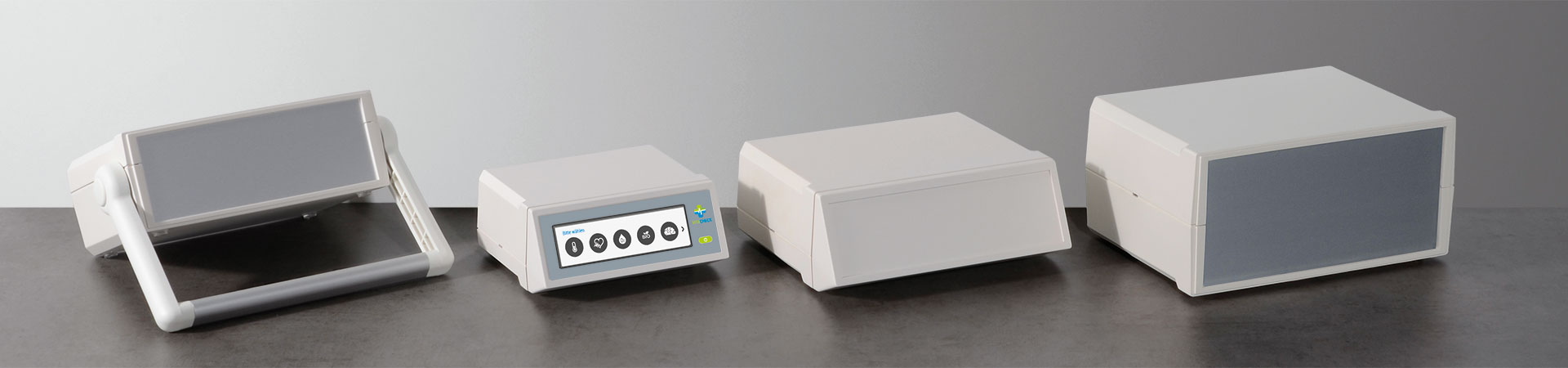

Motec 大接口面机盒

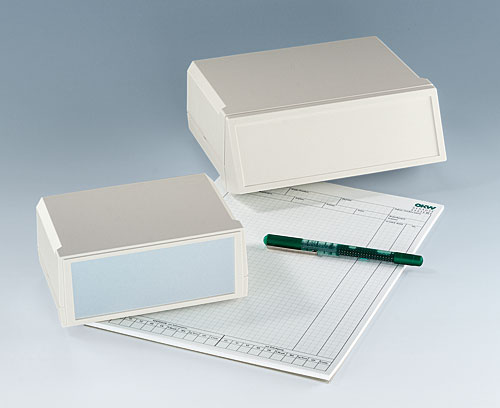

接口面积特大的机盒
具备宽敞舒适的操作和接口表面是 MOTEC 大接口面桌式机盒与传统机盒系统的主要区别。
- 现代化、 时兴的设计款式

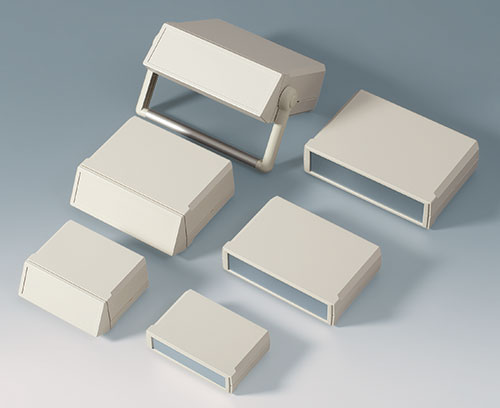

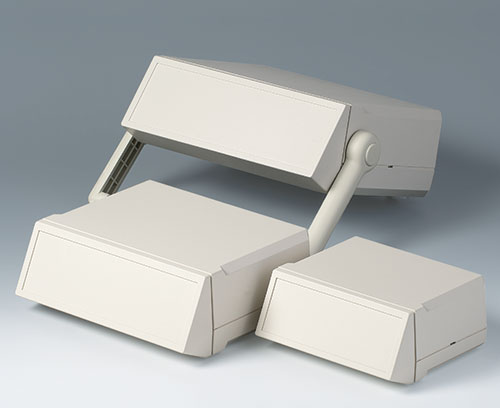

- 3 种规格
- 不同的机盒高度达到不同的应用配置
- 优质材料 ABS (UL 94 HB)

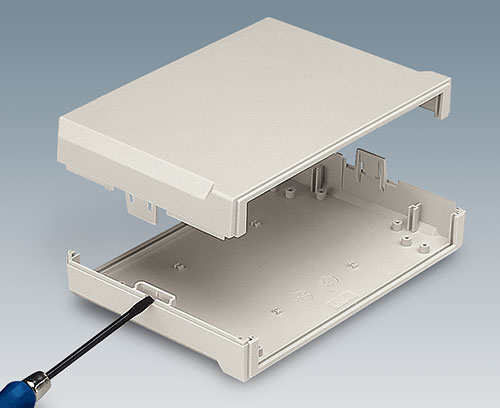

- 通过无螺钉的外壳组装方式，达到最小的装配工作量; 利用扁头螺丝刀解锁

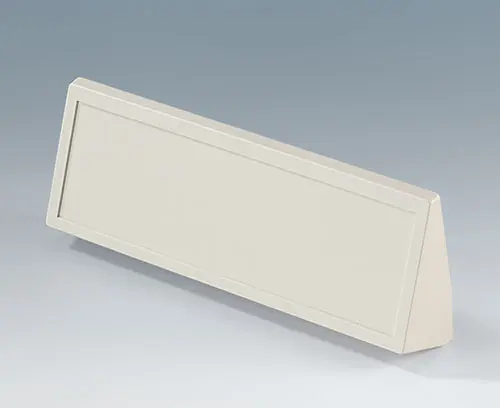

- 符合人体工程学的倾斜操作面板具有用于保护膜键盘的凹槽表面，作为附件

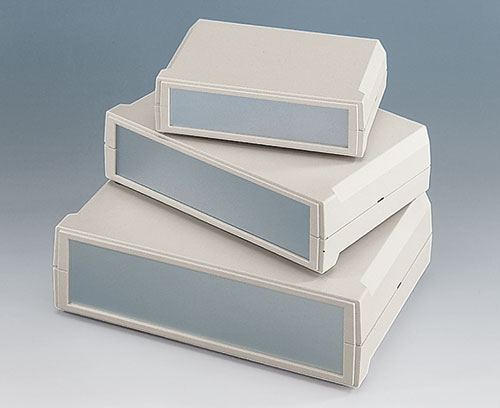

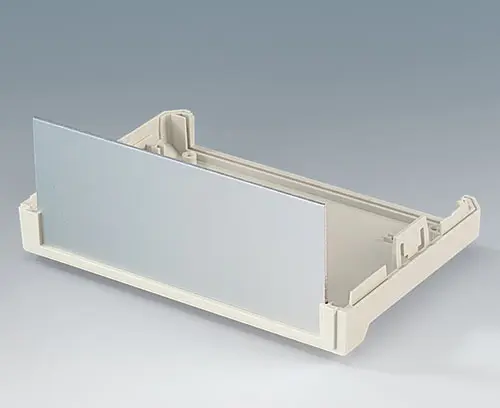

- 铝合金前面板作为附件

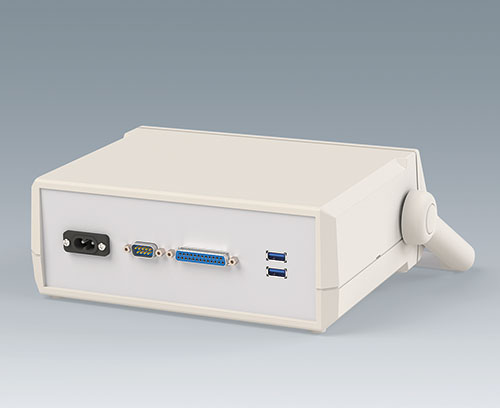

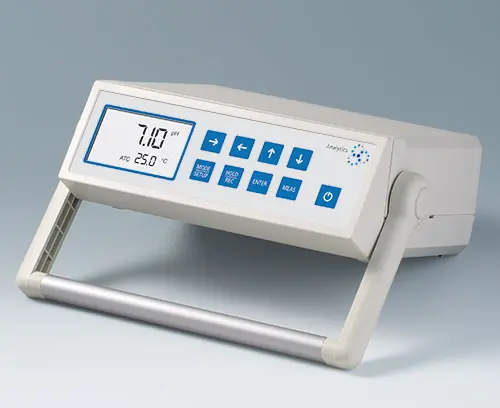

- 携带提手可用作为机盒的桌面支架和移动提手
- 自粘、透明的盒脚确保机盒的安全稳立
- 防护等级 IP 40
- 导槽用于分隔板和电路板的垂直插入安装
- 固定柱用于固定电路板等
应用范围
测量和控制技术。 工艺工程控制。 计算机外围设备和界面接口。 开关控制和调制解调器。 医疗和实验室技术领域。
B3015117
MOTEC S, flat/flat
Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3015117
MOTEC S, flat/flat产品已添加到关注清单中
off-white RAL 9002
155x105x40mm
B3015127
MOTEC S, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3015127
MOTEC S, flat/high产品已添加到关注清单中
off-white RAL 9002
155x105x65mm
B3015137
MOTEC S, high/high
Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3015137
MOTEC S, high/high产品已添加到关注清单中
off-white RAL 9002
155x105x90mm
B3020117
MOTEC M, flat/flat
Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3020117
MOTEC M, flat/flat产品已添加到关注清单中
off-white RAL 9002
205x140x50mm
B3020127
MOTEC M, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3020127
MOTEC M, flat/high产品已添加到关注清单中
off-white RAL 9002
205x140x75mm
B3020137

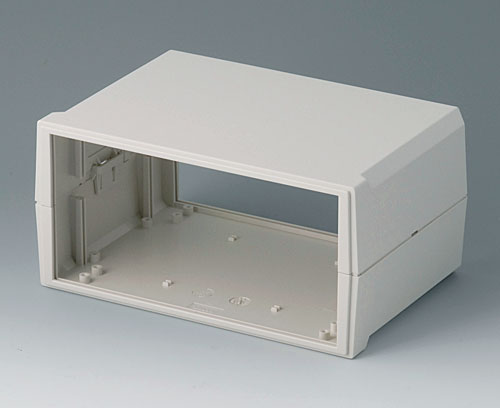

MOTEC M, high/high
Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3020137
MOTEC M, high/high产品已添加到关注清单中
off-white RAL 9002
205x140x100mm
B3020147

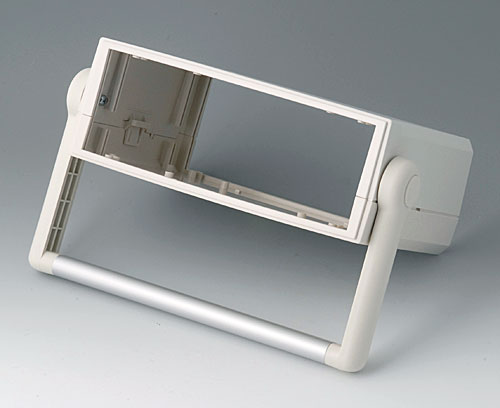

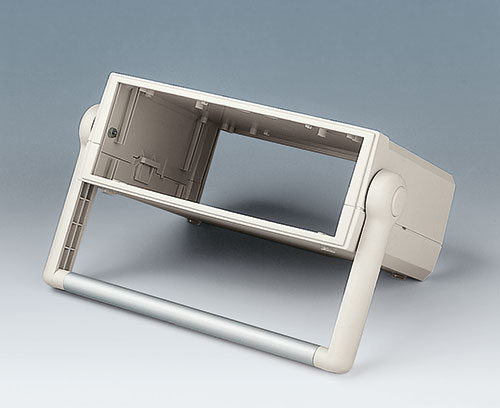

MOTEC M, with handle bar
Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.
Supply 1 top and base part, handle bar, 4 self-adhesive case feet
B3020147
MOTEC M, with handle bar产品已添加到关注清单中
off-white RAL 9002
205x140x75mm

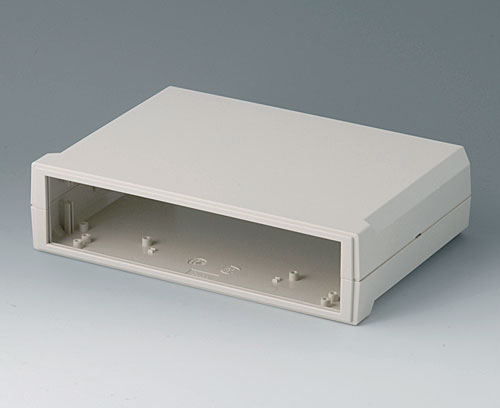

B3023117
MOTEC-L, flat/flat
Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3023117
MOTEC-L, flat/flat产品已添加到关注清单中
off-white RAL 9002
235x165x60mm
B3023127
MOTEC L, flat/high
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3023127
MOTEC L, flat/high产品已添加到关注清单中
off-white RAL 9002
235x165x85mm
B3023137
MOTEC L, high/high
Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.
Supply 1 top and base part, 4 self-adhesive case feet
B3023137
MOTEC L, high/high产品已添加到关注清单中
off-white RAL 9002
235x165x110mm
B3023147
MOTEC L, with handle bar
Desk top case with handle bar in version with flat base and high top part. With 30 degress indexing. Front and rear part open. Screw tower for PCBs and vertical guides for mounting panels. Front panels as accessory.
Supply 1 top and base part, handle bar, 4 self-adhesive case feet
B3023147
MOTEC L, with handle bar产品已添加到关注清单中
off-white RAL 9002
235x165x85mm
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screws产品已添加到关注清单中
B3115100
Front / rear panel S
Suitable for MOTEC S B3015117 with flat base and top part.
Supply 1 front panel
B3115100
Front / rear panel S产品已添加到关注清单中
matt anodised
136x32x1.5mm
B3115110
Front / rear panel S
Suitable for MOTEC S B3015127 with flat base and high top part.
Supply 1 front panel
B3115110
Front / rear panel S产品已添加到关注清单中
matt anodised
136x57x1.5mm
B3115120
Front / rear panel S
Suitable for MOTEC S B3015137 with high base and top part.
Supply 1 front panel
B3115120
Front / rear panel S产品已添加到关注清单中
matt anodised
136x82x1.5mm
B3115167

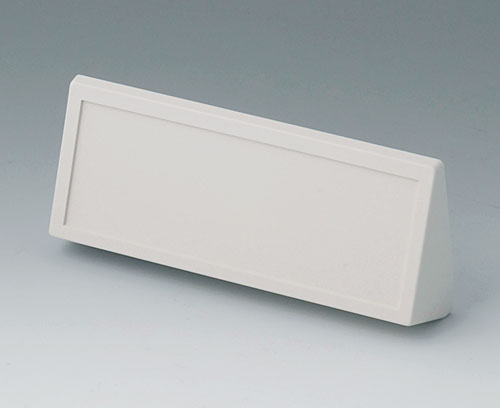

Sloping control panel S, flat/high
Suitable for MOTEC S B3015127 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply 1 sloping control panel
B3115167
Sloping control panel S, flat/high产品已添加到关注清单中
off-white RAL 9002
B3120100
Front / rear panel M
Suitable for MOTEC M B3020117 with flat base and top part.
Supply 1 front panel
B3120100
Front / rear panel M产品已添加到关注清单中
matt anodised
185x42x1.5mm

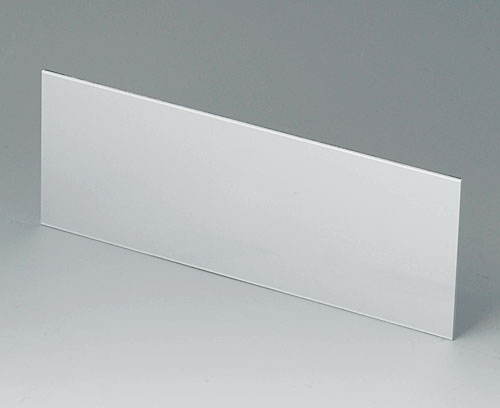

B3120110
Front / rear panel M
Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part.
Supply 1 front panel
B3120110
Front / rear panel M产品已添加到关注清单中
matt anodised
185x67x1.5mm

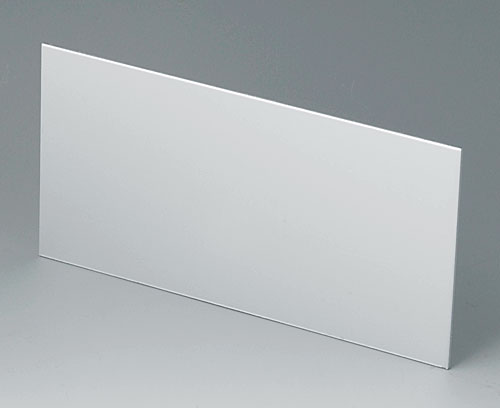

B3120120
Front / rear panel M
Suitable for MOTEC M B3020137 with high base and top part.
Supply 1 front panel
B3120120
Front / rear panel M产品已添加到关注清单中
matt anodised
185x92x1.5mm
B3120167

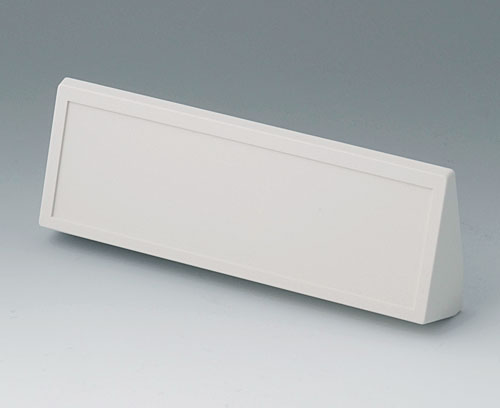

Sloping control panel M, flat/high
Suitable for MOTEC M B3020127 and B3020147 with flat base and high top part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply 1 sloping control panel
B3120167
Sloping control panel M, flat/high产品已添加到关注清单中
off-white RAL 9002
B3123100
Front / rear panel L
Suitable for MOTEC L B3023117 with flat base and top part.
Supply 1 front panel
B3123100
Front / rear panel L产品已添加到关注清单中
matt anodised
214x52x1.5mm
B3123110
Front / rear panel L
Suitable for MOTEC L B3023127 and B3023147 with flat base and high top part.
Supply 1 front panel
B3123110
Front / rear panel L产品已添加到关注清单中
matt anodised
214x77x1.5mm
B3123120

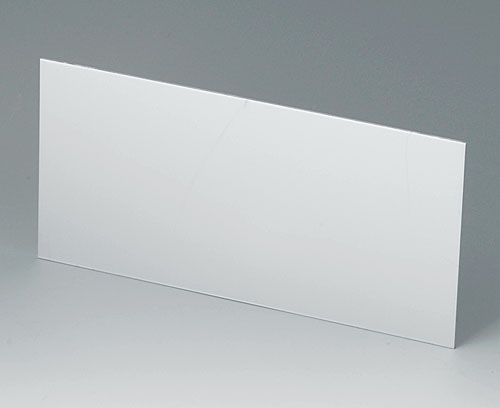

Front / rear panel L
Suitable for MOTEC L B3023137 with high base and top part.
Supply 1 front panel
B3123120
Front / rear panel L产品已添加到关注清单中
matt anodised
214x102x1.5mm
B3123167
Sloping control panel L, flat/high
Suitable for MOTEC L B3023127 and B3023147 with high top and flat base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply 1 sloping control panel
B3123167
Sloping control panel L, flat/high产品已添加到关注清单中
off-white RAL 9002
B3123177

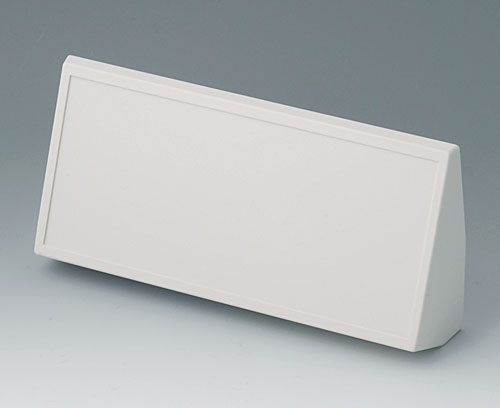

Sloping control panel L, high/high
Suitable for MOTEC L B3023137 with high top and base part. The ergonomically sloped control front with resecced area for membrane keyboards will be slided in the guiding groove.
Supply 1 sloping control panel
B3123177
Sloping control panel L, high/high产品已添加到关注清单中
off-white RAL 9002
