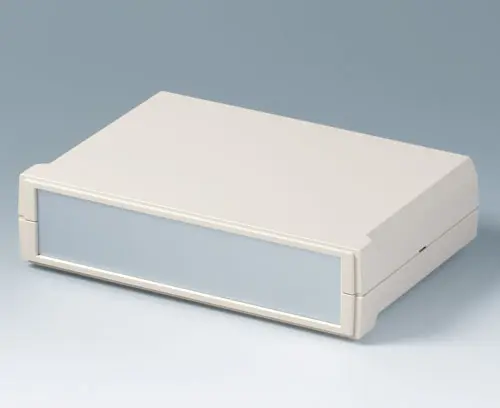

B3120100

Front / rear panel M

Suitable for MOTEC M B3020117 with flat base and top part.

Supply

1 front panel

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B3120100

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
B3020117 MOTEC M, flat/flat

B3020117

MOTEC M, flat/flat Desk top case with flat base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory.

Supply 1 top and base part, 4 self-adhesive case feet

B3020117

MOTEC M, flat/flat
产品已添加到关注清单中

off-white RAL 9002
205x140x50mm

Customising options for B3120100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

颜色
matt anodised
标准根据
RoHS compliant
REACH compliant
宽度
185 mm
高度
42 mm
厚度
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
30 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B3120100请务必索取报价！
