DIN 标准导轨接线盒
B3218101

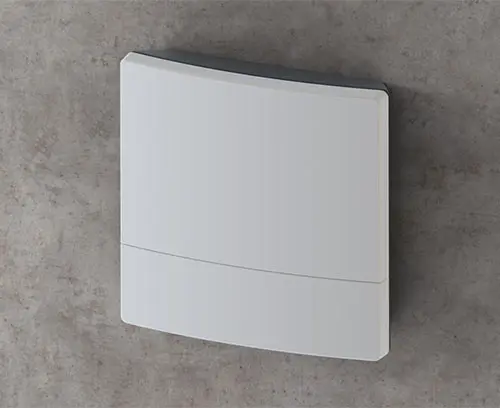

NET-BOX 180, Vers. I

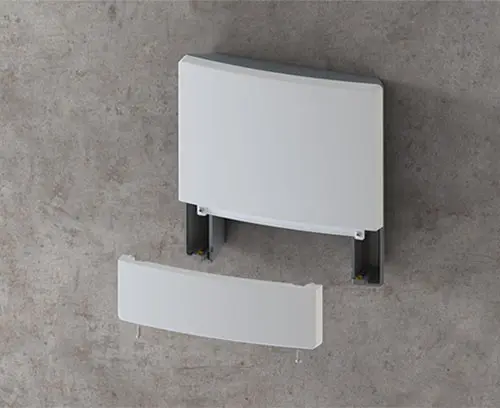

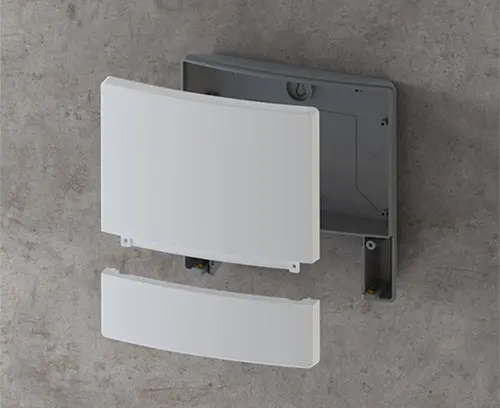

Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.
VersionBottom part without openings.
Supply1 bottom part and 1 top cover, 1 lid and 1 assembly kit
添加到购物车内
“保护等级” 附件
B3318159

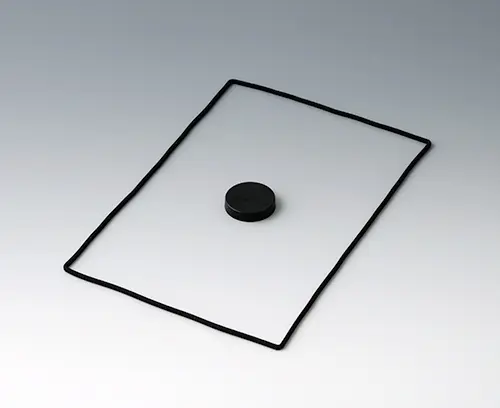

Sealing kit 180
Application: for increasing the protection class, of NET-BOX 180.
Supply 1 sealing kit
B3318159
Sealing kit 180产品已添加到关注清单中
black
“挂墙支架” 配件
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracket产品已添加到关注清单中
anthracite grey RAL 7016
100x100x20mm
“螺钉” 附件
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)产品已添加到关注清单中
附件
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mm产品已添加到关注清单中
B3318918
Infill cover 180
With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.
Supply 1 infill cover
B3318918
Infill cover 180产品已添加到关注清单中
lava
Customising options for B3218101
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 应用示例
- 采购有关数据
材料
防护等级
Necessary accessories: sealing kit,
颜色
Top cover and lid
light grey RAL 7035,
Bottom part lava
Bottom part lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
宽度
180 mm
高度
180 mm
深度
48.5 mm
电路板长度，下盒
112 mm
电路板宽度，下盒
154 mm
电路板长度，上盒
114 mm
电路板宽度，上盒
168 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 348 KB
- AutoCAD DWG-File 1,111 KB
- AutoCAD DXF-File 4,044 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 1,513 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015143.x_t 5,411 KB
- 00015143.step 14,079 KB
- 00015143.sat 13,894 KB
Weight/1 part
302 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B3218101请务必索取报价！
