Net-Box 控制机盒

Net-Box 控制机盒

雅观的控制中心

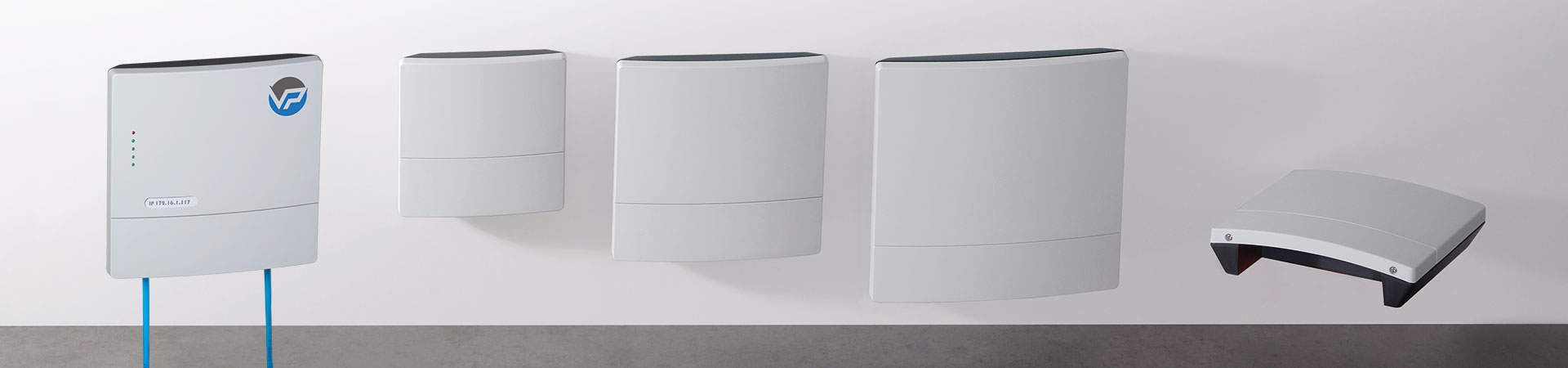

新型墙挂机盒系列 NET-BOX 控制机盒,提供一个新颖并令人注目的弧线形状。

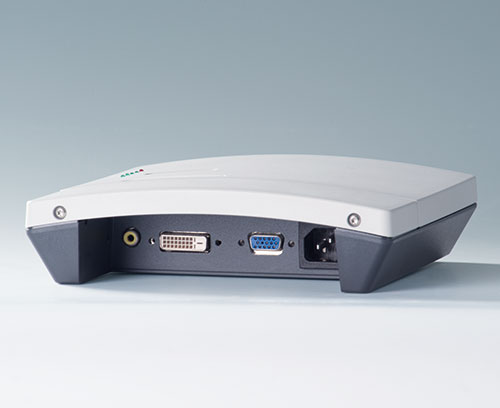

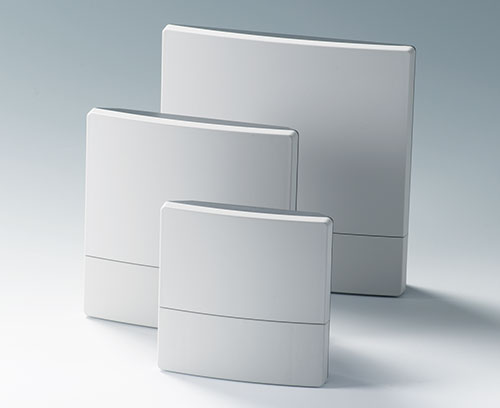

  • 三种规格提供足够的空间用于安装电子产品和接口

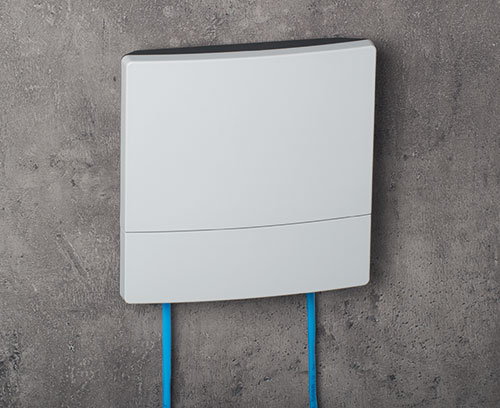

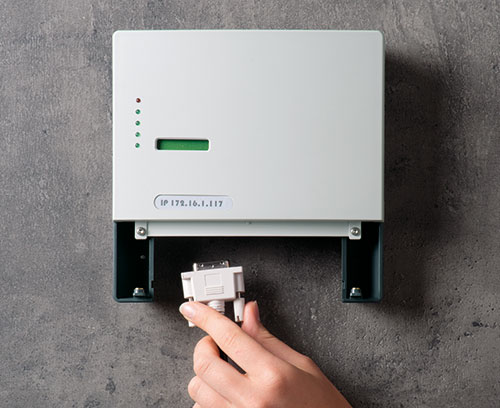

  • 螺钉和插头连接隐避

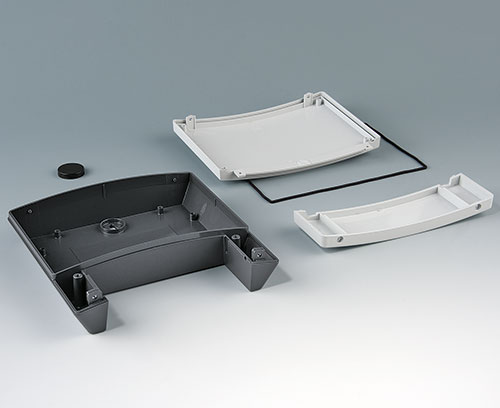

  • 高质的 V0 材料和可选的保护等级为 IP 65 (密封套件作为附件)的室外用终端机盒

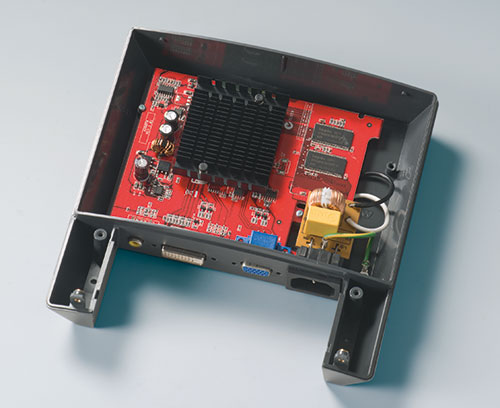

  • 可安装两个电路板的密封隔室

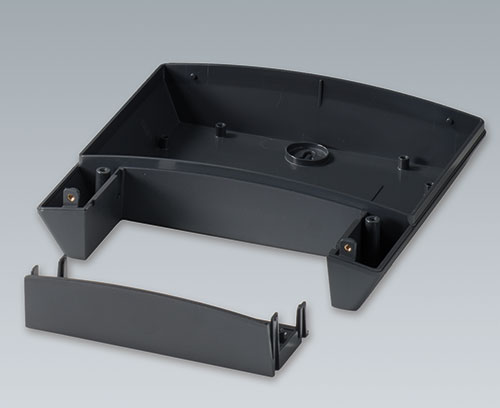

  • 可选的向下盒盖使机盒密封,并允许再增加安装一个电路板

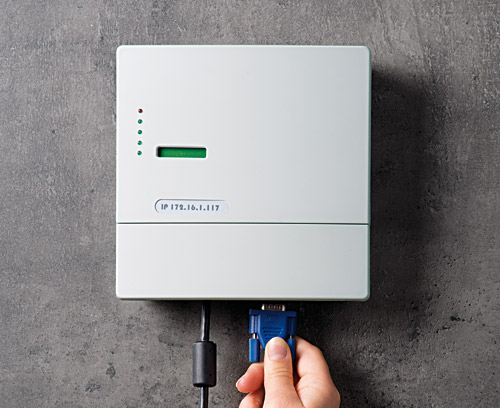

  • 简单、平齐的三点式壁安装
  • 梅花头不锈钢螺钉固定
  • NET-BOX 控制机盒也可桌面使用(防滑脚作为附件)

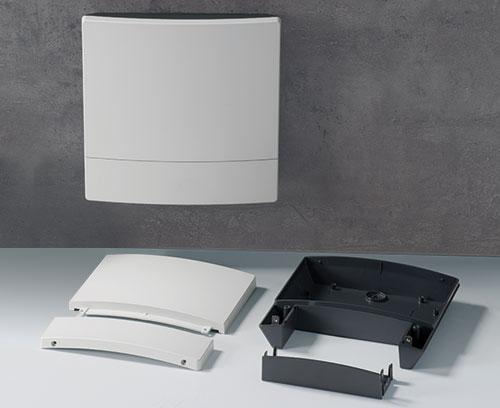

  • 三部件组成的壳体包括底盒,上盒和盖板
  • 录像
  • 应用示例

应用范围

  • 建筑技术领域
  • 控制中心
  • IoT/IIoT
  • Smart Factory
  • Industry 4.0
  • 监控系统
  • 出入口控制
  • 数据收集系统
  • 电脑外设
  • 测量和控制技术
  • 医疗技术
  • 选择所有项目
  • 配件
  • 按客户要求修改加工
B3214101 NET-BOX 140

B3214101

NET-BOX 140 Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

关闭

B3214101

NET-BOX 140 ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
140x140x46.5mm
IP 65 opt.
B3218101 NET-BOX 180

B3218101

NET-BOX 180 Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

关闭

B3218101

NET-BOX 180 ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
180x180x48.5mm
IP 65 opt.
B3222101 NET-BOX 220

B3222101

NET-BOX 220 Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

关闭

B3222101

NET-BOX 220 ASA+PC-FR (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt.
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

关闭

A0399T10

Torx T10 screwdriver
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

关闭

A9207150

Anti-slide feet 6.5 x 2 mm transparent
B3314159 Sealing kit 140

B3314159

Sealing kit 140 For raising the protection class IP 65.

Supply 1 sealing kit

关闭

B3314159

Sealing kit 140 Silicone
black
B3314918 Infill cover 140

B3314918

Infill cover 140 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

关闭

B3314918

Infill cover 140 ASA+PC-FR (UL 94 V-0)
lava
B3318159 Sealing kit 180

B3318159

Sealing kit 180 For raising the protection class IP 65.

Supply 1 sealing kit

关闭

B3318159

Sealing kit 180 Silicone
black
B3318918 Infill cover 180

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

关闭

B3318918

Infill cover 180 ASA+PC-FR (UL 94 V-0)
lava
B3322159 Sealing kit 220

B3322159

Sealing kit 220 For raising the protection class IP 65.

Supply 1 sealing kit

关闭

B3322159

Sealing kit 220 Silicone
black
B3322918 Infill cover 220

B3322918

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

关闭

B3322918

Infill cover 220 ASA+PC-FR (UL 94 V-0)
lava

产品类型用于 Net-Box 控制机盒

如何体现您的特殊产品? 如有需要,我们执行所有必要的修改和精加工,提供组装完毕的机盒。
