B6505119 RAILTEC B, 9 modules, Vers. V

B6505119

RAILTEC B, 9 modules, Vers. V

Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version

With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply

1 base part with locking clip, 1 top part

  • 适配系统部件
  • 按客户要求修改加工

“挂墙支架” 配件

B6600334 Wall suspension elements

B6600334

Wall suspension elements For direct mounting on walls. Assembly without screws in the base part (RAILTEC B).

Supply 2 pieces as kit

关闭

B6600334

Wall suspension elements
产品已添加到关注清单中
PPO (UL 94 V-0)
black

“端子” 配件

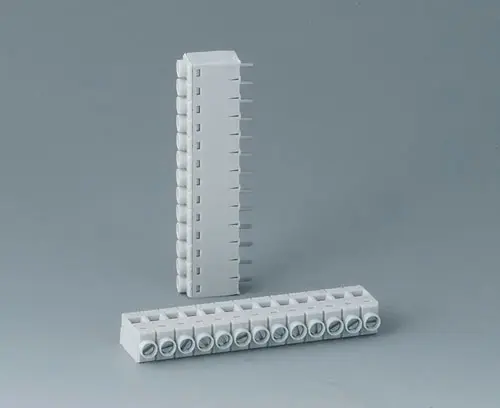

B6605111 Terminal block, block 5.0

B6605111

Terminal block, block 5.0 PCB terminal block, 5.0. 13-pin.

Supply 1 piece

关闭

B6605111

Terminal block, block 5.0
产品已添加到关注清单中
PA 68 (UL 94 V-0)
B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

关闭

B6605222

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)
B6605223 Plug header, block 5.08

B6605223

Plug header, block 5.08 Female terminal block, 5.08. 13-pin.

Supply 1 piece

关闭

B6605223

Plug header, block 5.08
产品已添加到关注清单中
PA 6 (UL 94 V-0)

“螺钉” 附件

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
产品已添加到关注清单中

附件

B6605100 Lid, 9 modules

B6605100

Lid, 9 modules Locking lid for protecting the display and operating elements.

Supply 1 lid

关闭

B6605100

Lid, 9 modules
产品已添加到关注清单中
PC (UL 94 V-0)
transparent

Customising options for B6505119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
颜色
Top part light grey RAL 7035,
Bottom part black,
Locking clip black
标准根据
RoHS compliant
DIN EN 60715 TH35
DIN VDE 0470-1
DIN 43880 unit 1
REACH compliant
VBG 4
IEC 529
Width
157 mm
Height
86 mm
Depth
59 mm
电路板长度,下盒
82.4 mm
电路板宽度,下盒
151.2 mm
Poles
≤ 52
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
108 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Denmark
