DIN 标准导轨接线盒
B6701100
RAILTEC C, 2 modules, Vers. I

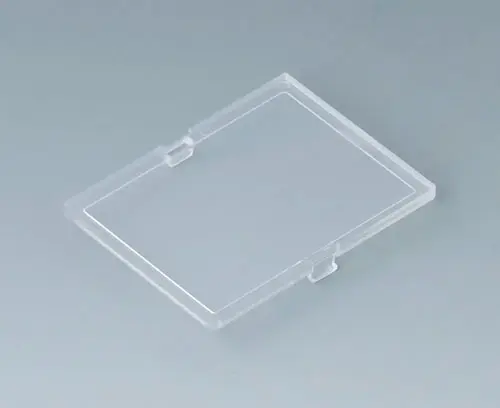

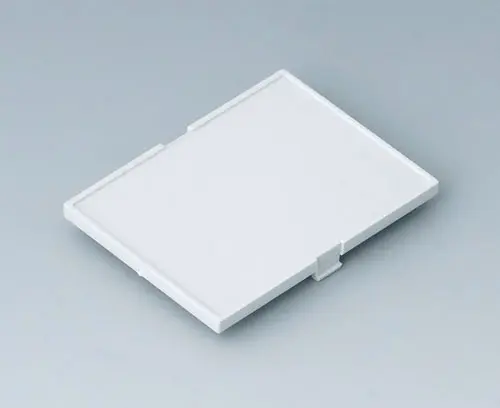

Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
VersionFront open, connection side with free through passage
Supply1 bottom part, 2 clips, 1 top part
添加到购物车内
“挂墙支架” 配件
B6811542
Adapter
Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).
Supply 1 piece
B6811542
Adapter产品已添加到关注清单中
light grey
“端子” 配件
B6601222
Plug header, block 5.08
Male terminal block, 5.08. 5-pin.
Supply 1 piece
B6601222
Plug header, block 5.08产品已添加到关注清单中
B6601223
Plug header, block 5.08
Female terminal block, 5.08. 5-pin.
Supply 1 piece
B6601223
Plug header, block 5.08产品已添加到关注清单中
B6606222
Plug header, block 5.08
Male terminal block, 5.08. 2-pin.
Supply 1 piece
B6606222
Plug header, block 5.08产品已添加到关注清单中
B6606223
Plug header, block 5.08
Female terminal block, 5.08. 2-pin.
Supply 1 piece
B6606223
Plug header, block 5.08产品已添加到关注清单中
B6801650
Terminal block, block 5.08
PCB terminal block, 5.08. 6-pin.
Supply 1 piece
B6801650
Terminal block, block 5.08产品已添加到关注清单中
light grey
“端子盖” 配件
B6801111
Terminal guards, closed
Easy assembly through snap-in installation of the case parts.
Version Closed
Supply 1 piece
B6801111
Terminal guards, closed产品已添加到关注清单中
light grey
B6801112

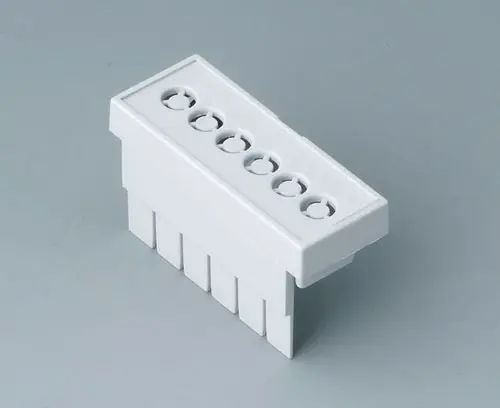

Terminal guards, perforated, 5.08
Easy assembly through snap-in installation of the case parts.
Version 6 poles (designed to allow the use of terminals, block 5.08)
Supply 1 piece
B6801112
Terminal guards, perforated, 5.08产品已添加到关注清单中
light grey
B6801113

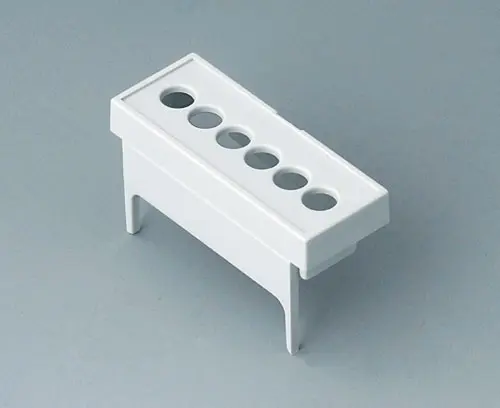

Terminal guards, with holes, 5.08
Easy assembly through snap-in installation of the case parts.
Version 6 poles (designed to allow the use of terminals, block 5.08)
Supply 1 piece
B6801113
Terminal guards, with holes, 5.08产品已添加到关注清单中
light grey
B6801114
Terminal guards, with holes, 7.5 & 7.62
Easy assembly through snap-in installation of the case parts.
Version 4 poles (designed to allow the use of terminals, block 7.5 & 7.62)
Supply 1 piece
B6801114
Terminal guards, with holes, 7.5 & 7.62产品已添加到关注清单中
light grey
B6801115

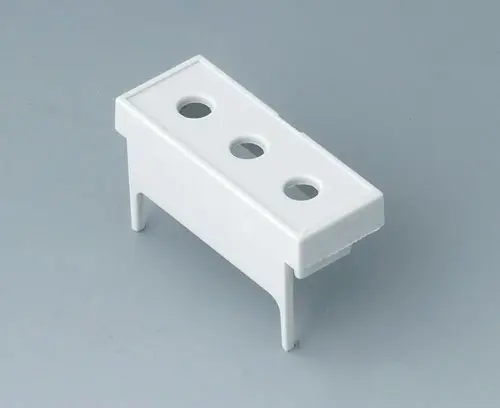

Terminal guards, with holes, 10.16
Easy assembly through snap-in installation of the case parts.
Version 3 poles (designed to allow the use of terminals, block 10.16)
Supply 1 piece
B6801115
Terminal guards, with holes, 10.16产品已添加到关注清单中
light grey
- 技术数据
-
图纸或资料
- 采购有关数据
材料
颜色
Bottom and top part
light grey,
Locking clip black/translucent
Locking clip black/translucent
标准根据
宽度
36 mm
高度
90 mm
深度
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 290 KB
- AutoCAD DWG-File 777 KB
- AutoCAD DXF-File 2,945 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 421 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011208.x_t 3,312 KB
- 00011208.STEP 6,969 KB
- 00011208.SAT 5,829 KB
Miscellaneous information
- Max. size of PCB in mm 285 KB
Weight/1 part
32 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B6701100请务必索取报价！
