DIN 标准导轨接线盒
B6703102
RAILTEC C, 4 modules, Vers. II
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.
VersionFront open, connection side with free through passage, with ventilations slots
Supply1 bottom part, 2 clips, 1 top part
添加到购物车内
“挂墙支架” 配件
B6811542
Adapter
Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).
Supply 1 piece
B6811542
Adapter产品已添加到关注清单中
light grey
“端子” 配件
B6601222
Plug header, block 5.08
Male terminal block, 5.08. 5-pin.
Supply 1 piece
B6601222
Plug header, block 5.08产品已添加到关注清单中
B6601223
Plug header, block 5.08
Female terminal block, 5.08. 5-pin.
Supply 1 piece
B6601223
Plug header, block 5.08产品已添加到关注清单中
B6602222
Plug header, block 5.08
Male terminal block, 5.08. 9-pin.
Supply 1 piece
B6602222
Plug header, block 5.08产品已添加到关注清单中
B6602223
Plug header, block 5.08
Female terminal block, 5.08. 9-pin.
Supply 1 piece
B6602223
Plug header, block 5.08产品已添加到关注清单中
B6603222
Plug header, block 5.08
Male terminal block, 5.08. 12-pin.
Supply 1 piece
B6603222
Plug header, block 5.08产品已添加到关注清单中
B6603223
Plug header, block 5.08
Female terminal block, 5.08. 12-pin.
Supply 1 piece
B6603223
Plug header, block 5.08产品已添加到关注清单中
B6606222
Plug header, block 5.08
Male terminal block, 5.08. 2-pin.
Supply 1 piece
B6606222
Plug header, block 5.08产品已添加到关注清单中
B6606223
Plug header, block 5.08
Female terminal block, 5.08. 2-pin.
Supply 1 piece
B6606223
Plug header, block 5.08产品已添加到关注清单中
B6803650

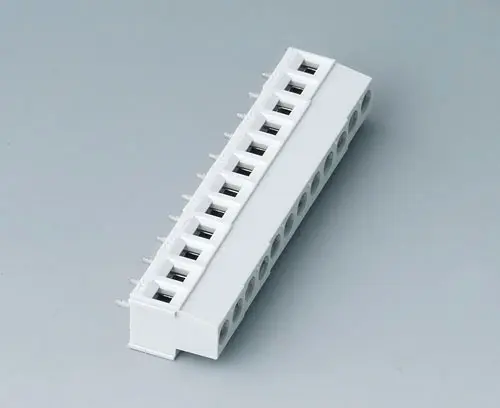

Terminal block, block 5.08
PCB terminal block, 5.08. 12-pin.
Supply 1 piece
B6803650
Terminal block, block 5.08产品已添加到关注清单中
light grey
“端子盖” 配件
B6803111

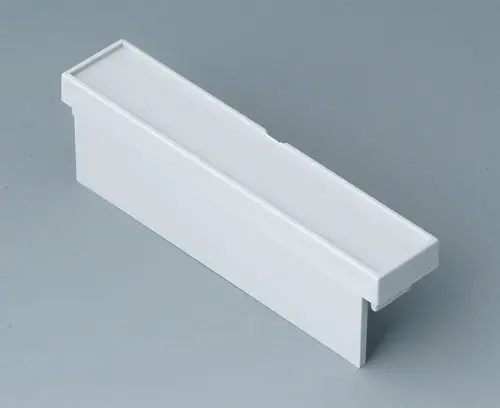

Terminal guards, closed
Easy assembly through snap-in installation of the case parts.
Version Closed
Supply 1 piece
B6803111
Terminal guards, closed产品已添加到关注清单中
light grey
B6803112

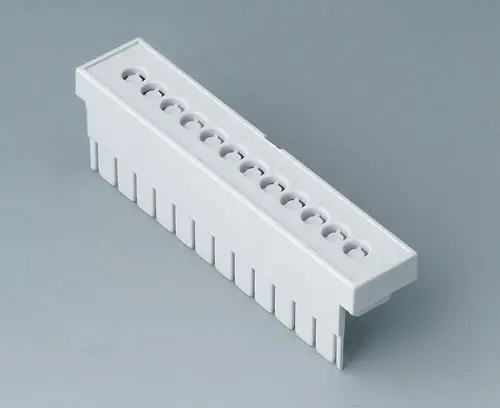

Terminal guards, perforated, 5.08
Easy assembly through snap-in installation of the case parts.
Version 12 poles (designed to allow the use of terminals, block 5.08)
Supply 1 piece
B6803112
Terminal guards, perforated, 5.08产品已添加到关注清单中
light grey
B6803113

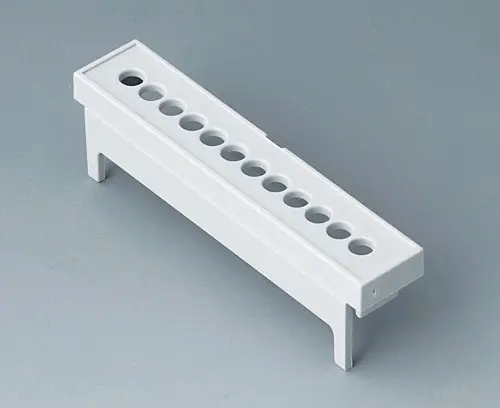

Terminal guards, with holes, 5.08
Easy assembly through snap-in installation of the case parts.
Version 12 poles (designed to allow the use of terminals, block 5.08)
Supply 1 piece
B6803113
Terminal guards, with holes, 5.08产品已添加到关注清单中
light grey
B6803114

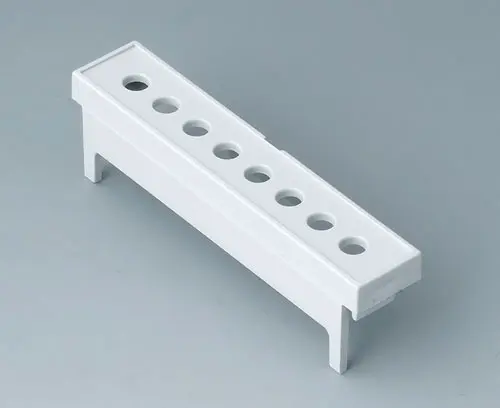

Terminal guards, with holes, 7.5 & 7.62
Easy assembly through snap-in installation of the case parts.
Version 8 poles (designed to allow the use of terminals, block 7.5 & 7.62)
Supply 1 piece
B6803114
Terminal guards, with holes, 7.5 & 7.62产品已添加到关注清单中
light grey
B6803115

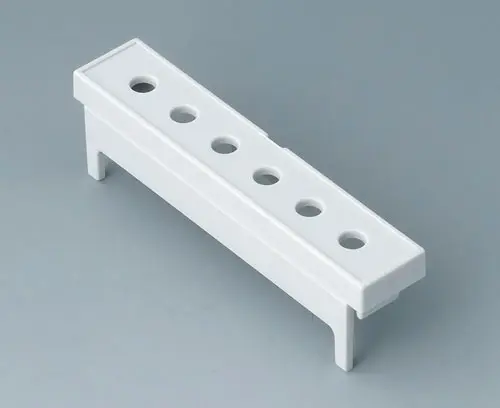

Terminal guards, with holes, 10.16
Easy assembly through snap-in installation of the case parts.
Version 6 poles (designed to allow the use of terminals, block 10.16)
Supply 1 piece
B6803115
Terminal guards, with holes, 10.16产品已添加到关注清单中
light grey
- 技术数据
-
图纸或资料
- 采购有关数据
材料
颜色
Bottom and top part
light grey,
Locking clip black/translucent
Locking clip black/translucent
标准根据
宽度
71 mm
高度
90 mm
深度
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 288 KB
- AutoCAD DWG-File 720 KB
- AutoCAD DXF-File 2,772 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 596 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00011357.x_t 4,939 KB
- 00011357.STEP 10,636 KB
- 00011357.SAT 8,712 KB
Miscellaneous information
- Max. size of PCB in mm 285 KB
Weight/1 part
46 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
