B6724333 RAILTEC SUP. 72, end section

B6724333

RAILTEC SUP. 72, end section

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 end section

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

B6724330 RAILTEC SUP. 72, intermediate part

B6724330

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

关闭

B6724330

RAILTEC SUP. 72, intermediate part
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
82x11.25x16mm

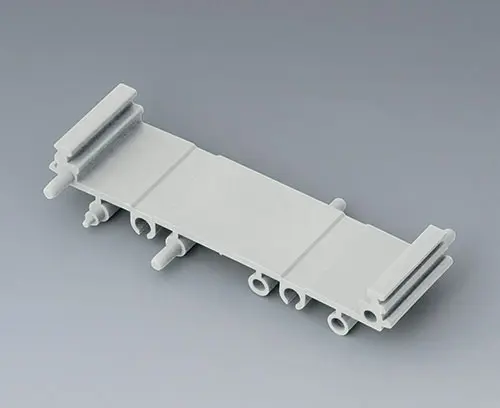

B6724331 RAILTEC SUP. 72, intermediate part

B6724331

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

关闭

B6724331

RAILTEC SUP. 72, intermediate part
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
82x22.5x16mm

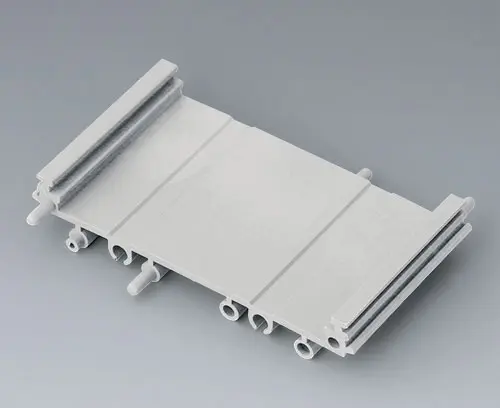

B6724332 RAILTEC SUP. 72, intermediate part

B6724332

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

关闭

B6724332

RAILTEC SUP. 72, intermediate part
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
82x45x16mm
B6724337 RAILTEC SUP. 72, foot

B6724337

RAILTEC SUP. 72, foot Can be used for intermediate part and end section without foot. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 foot

关闭

B6724337

RAILTEC SUP. 72, foot
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey

“挂墙支架” 配件

B6824532 Wall suspension element for SUP. 72

B6824532

Wall suspension element for SUP. 72 Allows direct wall-mounting, suitable for end section.

Supply 2 pieces as set

关闭

B6824532

Wall suspension element for SUP. 72
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey

Customising options for B6724333

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
Length
82 mm
Width
11.2 mm
Height
16 mm
电路板长度,下盒
72 mm
电路板宽度,下盒
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Other country
