B6724444 RAILTEC SUP. 107, end section

B6724444

RAILTEC SUP. 107, end section

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 end section

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

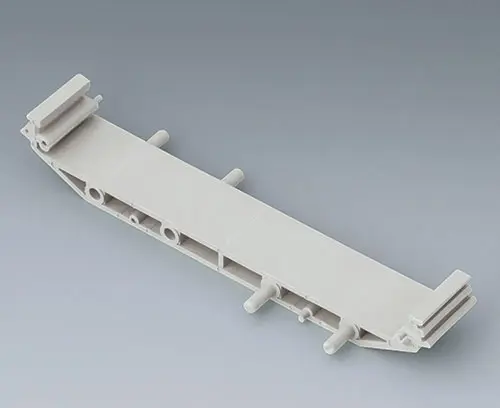

B6724440 RAILTEC SUP. 107, intermediate part

B6724440

RAILTEC SUP. 107, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

关闭

B6724440

RAILTEC SUP. 107, intermediate part
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
118x18.5x17.5mm

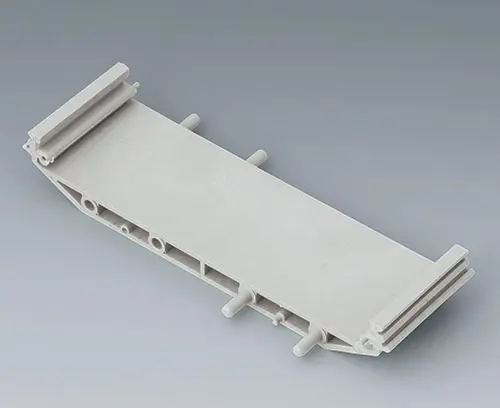

B6724441 RAILTEC SUP. 107, intermediate part

B6724441

RAILTEC SUP. 107, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

关闭

B6724441

RAILTEC SUP. 107, intermediate part
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
118x35x17.5mm

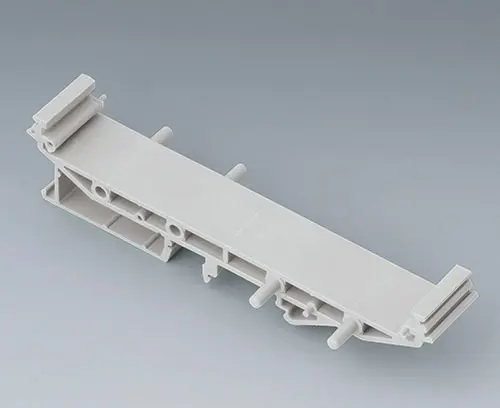

B6724442 RAILTEC SUP. 107, intermediate p. + foot

B6724442

RAILTEC SUP. 107, intermediate p. + foot Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 intermediate part with foot

关闭

B6724442

RAILTEC SUP. 107, intermediate p. + foot
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
118x18.5x27.5mm

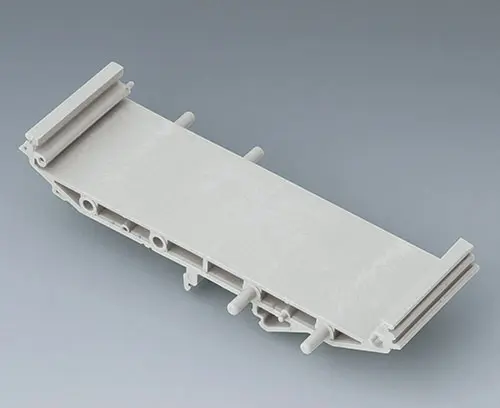

B6724443 RAILTEC SUP. 107, intermediate p. + foot

B6724443

RAILTEC SUP. 107, intermediate p. + foot Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 intermediate part with foot

关闭

B6724443

RAILTEC SUP. 107, intermediate p. + foot
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey
118x35x27.5mm

“挂墙支架” 配件

B6824542 Wall suspension element for SUP. 107

B6824542

Wall suspension element for SUP. 107 Allows direct wall mounting, suitable for end section.

Supply 2 pieces as set

关闭

B6824542

Wall suspension element for SUP. 107
产品已添加到关注清单中
PA 6 (30) (UL 94 V-0)
light grey

Customising options for B6724444

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
Length
118 mm
Width
11.5 mm
Height
17.5 mm
电路板长度,下盒
107 mm
电路板宽度,下盒
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
