CIME/E/EC0000E

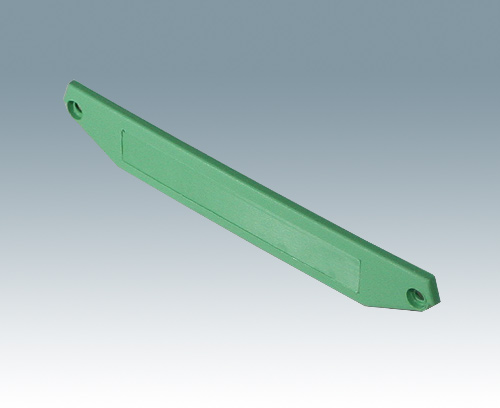

RAILTEC SUP. EXT 107, end cover

End cover for extruded base section (107 mm PCB), fixed by two self-tapping screws. Minimum components for one support: base section, 2 end covers, 2 DIN rail feet (add more for PCBs >150 mm) and 4 end cover self-tapping screws.

Supply

1 end cover

2D PDF 视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 CIME/E/EC0000E

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车
材料

颜色
green
标准根据
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
宽度
2.5 mm
高度
17.5 mm
深度
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
3.6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
