AltText

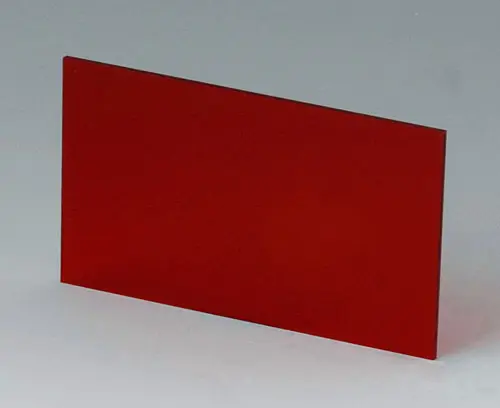

A9106123

Front / rear panel V 110

Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply

1 front panel

  • 应用于
  • 按客户要求修改加工
AltText

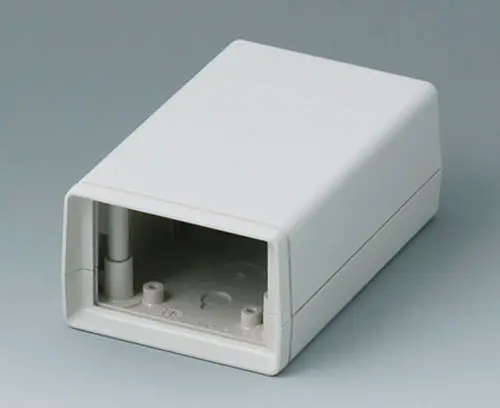

A9406343

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

关闭

A9406343

SHELL-TYPE CASES V 110, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
AltText

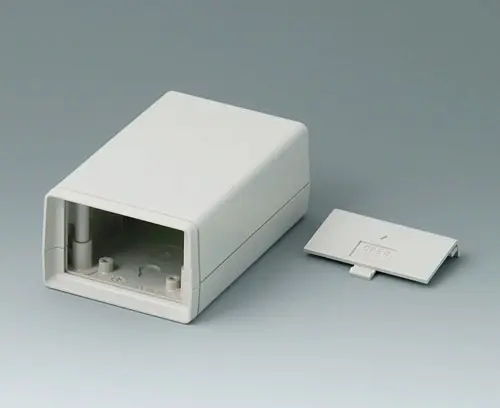

A9406344

SHELL-TYPE CASES V 110, Vers. II Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

关闭

A9406344

SHELL-TYPE CASES V 110, Vers. II
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm

Customising options for A9106123

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
red transparent
Width
59.3 mm
Height
37 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1.8 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
