Shell-Type Cases 壳状盒
通用仪器盒
Shell-Type Cases 壳状盒产品系列提供不同的大小规格、高度和类型。请选择满足您独特要求的机盒！
- 3 种类型 51 款式机盒:
类型 V – 端面敞开，后面封闭
类型 O – 端面敞开，后面敞开

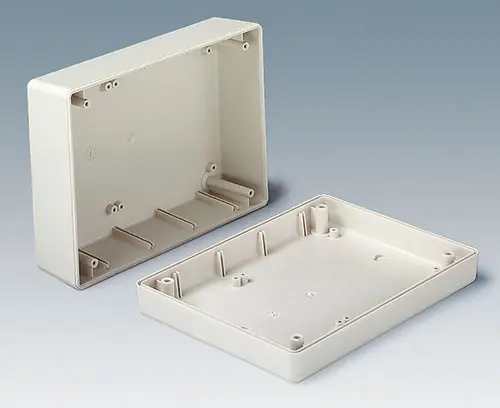

类型 G – 端面封闭，后面封闭 - 由于周向榫槽连接达到高度稳定性
- 导槽用于垂直安装分隔板和电路板
- 上盒和下盒都设有安装用固定柱

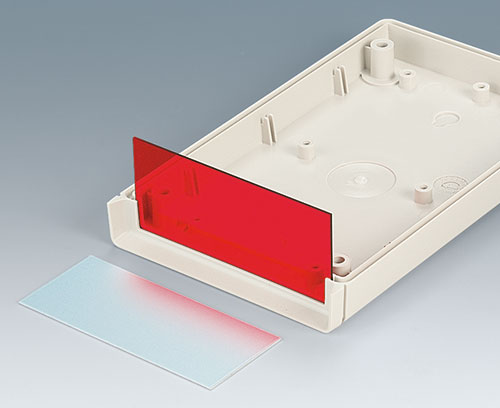

- 前面板和后面板为铝材质或红色 PMMA (acrylic glass)作为附件

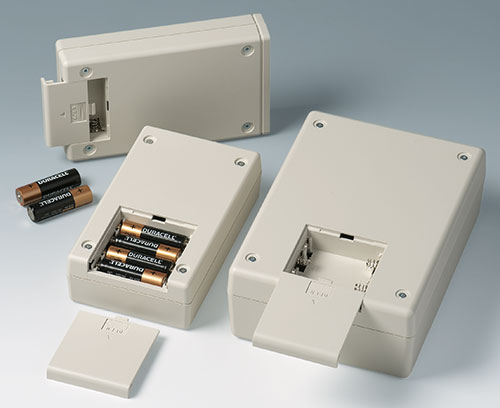

- 带适配 4 个 AA, 2 个 AA, 1 个 9 V 或 2 个 9 V 电池的电池仓的类型可选(类型 V 和 G)

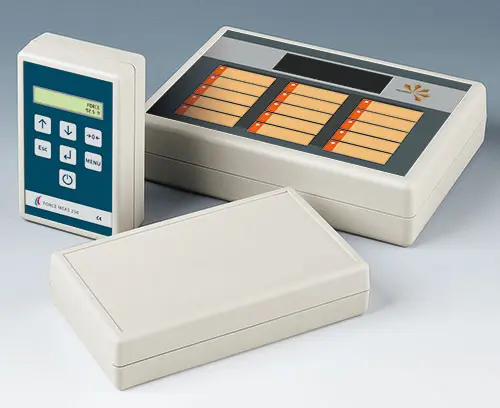

- 封闭式类型 (类型 G) 也可带有凹陷的操作面板，以保护膜键盘
- 使用密封套件（附件）时，不带电池仓的封闭型（G 型）防护等级达到 IP 65

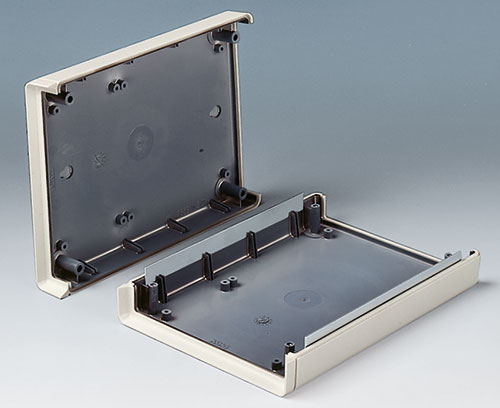

- EMC： 根据要求，您可以选择镀铝的机盒; 通过提供的接触板条（附件）达到改善接触效果
- 墙壁安装片或墙壁支架设置套件作为附件
- 通过增加通用附件达到附加功能
应用范围
测量调控技术，控制技术。 医疗和实验室技术。 外围设备和接口设备。 开关设施和调制解调器。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)产品已添加到关注清单中
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyelet产品已添加到关注清单中
volcano
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyelet产品已添加到关注清单中
volcano
A9104073
Contact-strips V, G 85
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9104073
Contact-strips V, G 85产品已添加到关注清单中
A9104111
Front / rear panel V 85
Front panel for SHELL-TYPE CASE V and O. For case A940433.
Supply 1 front panel
A9104111
Front / rear panel V 85产品已添加到关注清单中
matt anodised
36x14.6x1mm
A9104113
Front / rear panel V 85
Front panel for SHELL-TYPE CASE V and O. For case A940433.
Supply 1 front panel
A9104113
Front / rear panel V 85产品已添加到关注清单中
red transparent
36x14.6x1mm
A9104250

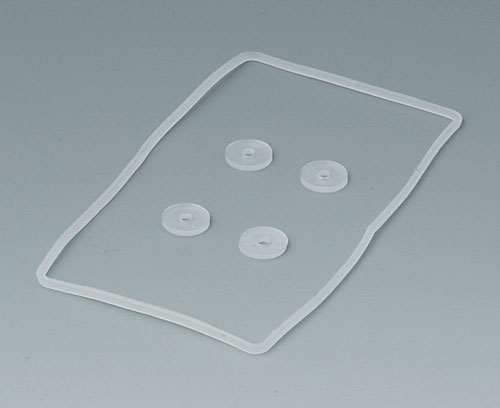

Sealing kit G 85
