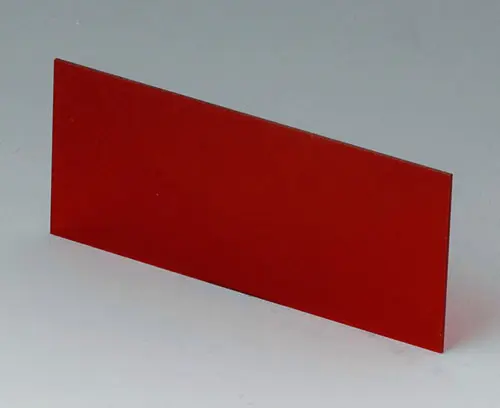

A9108123 Front / rear panel V, O 155

A9108123

Front / rear panel V, O 155

Front panel for SHELL-TYPE CASE V and O. For case A940834.

Supply

1 front panel

  • 应用于
  • 按客户要求修改加工

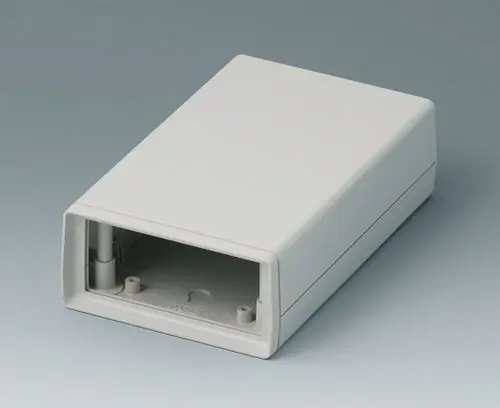

A9408340 SHELL-TYPE CASES O 155, Vers. I

A9408340

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

关闭

A9408340

SHELL-TYPE CASES O 155, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408343 SHELL-TYPE CASES V 155, Vers. I

A9408343

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

关闭

A9408343

SHELL-TYPE CASES V 155, Vers. I
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm

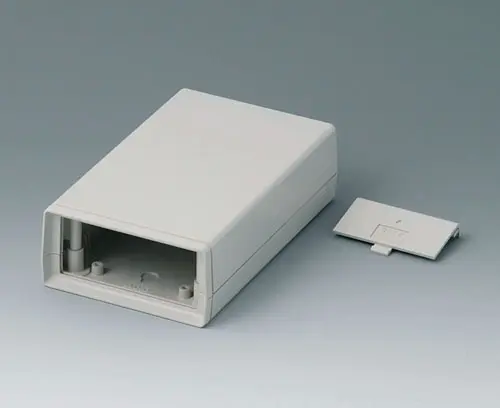

A9408346 SHELL-TYPE CASES V 155, Vers. IV

A9408346

SHELL-TYPE CASES V 155, Vers. IV Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cells (AA)

Supply 1 top and base part, battery compartment lid, assembly kit

关闭

A9408346

SHELL-TYPE CASES V 155, Vers. IV
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm
A9408648 SHELL-TYPE CASES V 155, Vers. V

A9408648

SHELL-TYPE CASES V 155, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

关闭

A9408648

SHELL-TYPE CASES V 155, Vers. V
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
95x158x45mm

Customising options for A9108123

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
red transparent
Width
81.9 mm
Height
35.6 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4.1 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
