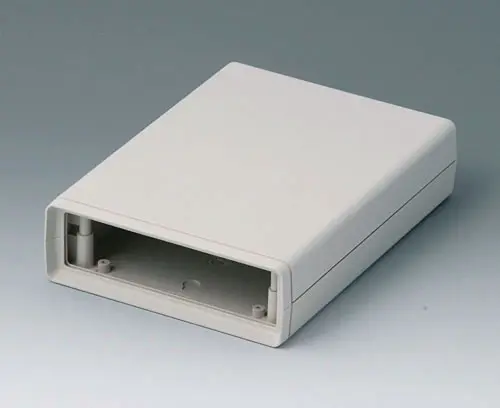

A9413330
SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413330
SHELL-TYPE CASES O 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x45mm

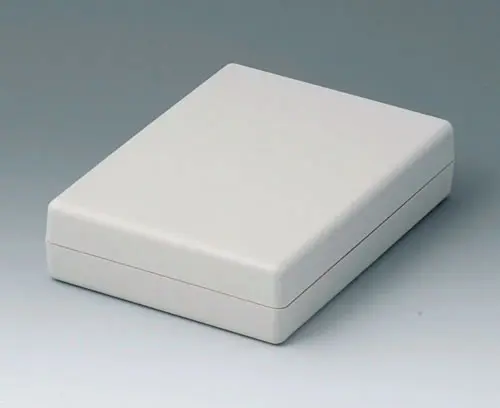

A9413331
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413331
SHELL-TYPE CASES G 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x45mm

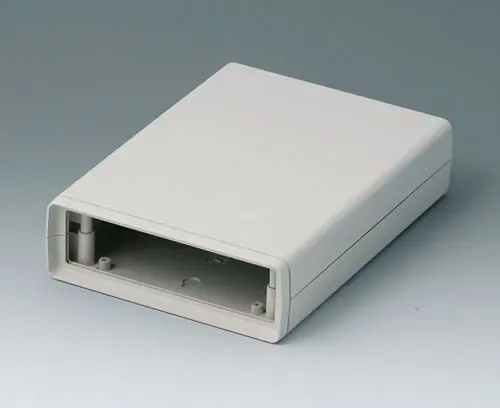

A9413333
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413333
SHELL-TYPE CASES V 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x45mm
A9413340
SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413340
SHELL-TYPE CASES O 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x68mm

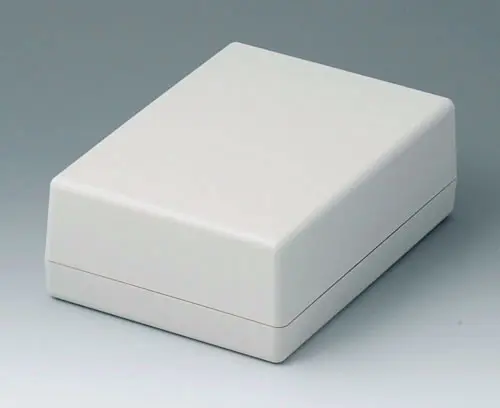

A9413341
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413341
SHELL-TYPE CASES G 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x68mm
A9413343
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413343
SHELL-TYPE CASES V 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x68mm

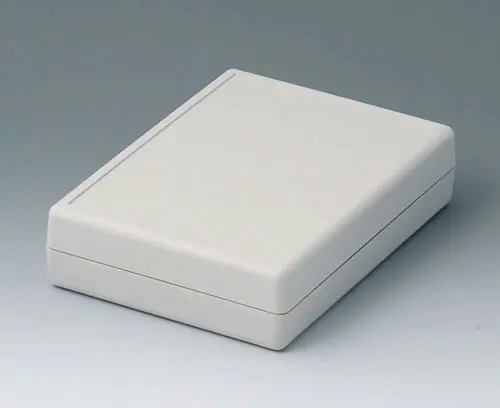

A9413351
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413351
SHELL-TYPE CASES G 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x45.5mm

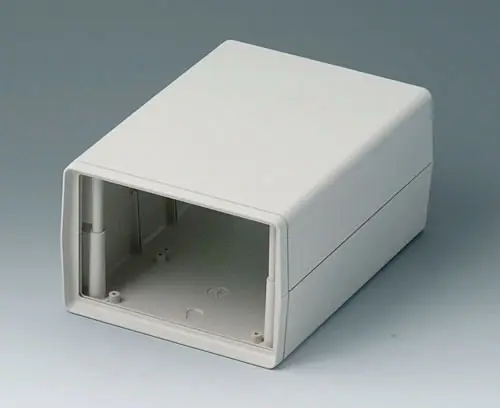

A9413440
SHELL-TYPE CASES O 190, Vers. I
Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413440
SHELL-TYPE CASES O 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x91mm
A9413441
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413441
SHELL-TYPE CASES G 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x91mm

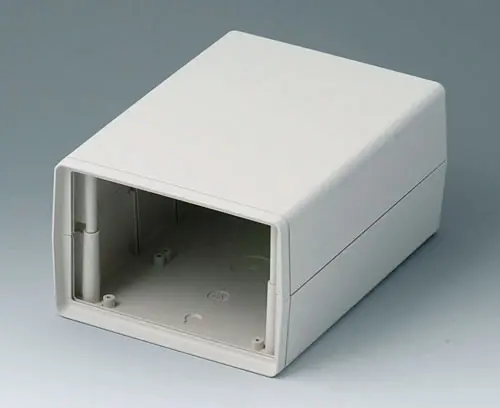

A9413443
SHELL-TYPE CASES V 190, Vers. I
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version Without battery compartment
Supply 1 top and base part, assembly kit
A9413443
SHELL-TYPE CASES V 190, Vers. I产品已添加到关注清单中
off-white RAL 9002
138x190x91mm
A9413638
SHELL-TYPE CASES V 190, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413638
SHELL-TYPE CASES V 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x45mm
A9413648
SHELL-TYPE CASES V 190, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413648
SHELL-TYPE CASES V 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x68mm
A9413737
SHELL-TYPE CASES G 190, Vers. V
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413737
SHELL-TYPE CASES G 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x45mm
A9413747
SHELL-TYPE CASES G 190, Vers. V
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413747
SHELL-TYPE CASES G 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x68mm
A9413757
SHELL-TYPE CASES G 190, Vers. V
Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.
Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply 1 top and base part, battery compartment lid, assembly kit
A9413757
SHELL-TYPE CASES G 190, Vers. V产品已添加到关注清单中
off-white RAL 9002
138x190x45.5mm
材料
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4.7 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Germany
