DIN 标准导轨接线盒
A9413331
SHELL-TYPE CASES G 190, Vers. I
Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWithout battery compartment
Supply1 top and base part, assembly kit
添加到购物车内
“保护等级” 附件
A9113150
Contact-strips V, O, G 190
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9113150
Contact-strips V, O, G 190产品已添加到关注清单中
A9113630

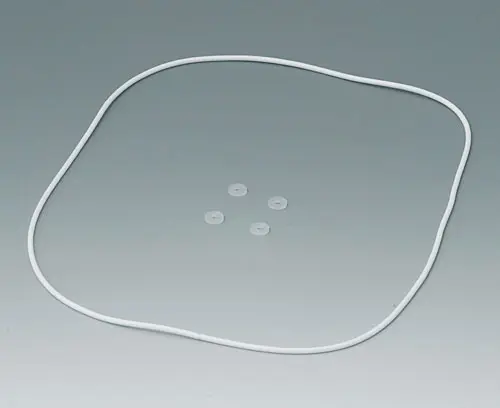

Sealing kit G 190
Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.
Supply 1 O-ring, 4 rubber disks
A9113630
Sealing kit G 190产品已添加到关注清单中
“挂墙支架” 配件
A9204108

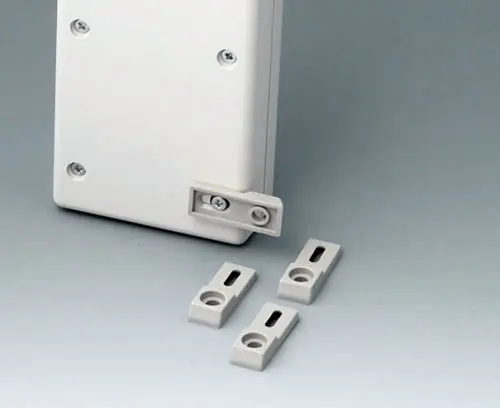

Wall mounting brackets
Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.
Supply 4 wall mounting brackets
A9204108
Wall mounting brackets产品已添加到关注清单中
pebble grey RAL 7032
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracket产品已添加到关注清单中
anthracite grey RAL 7016
100x100x20mm
B1360048
Wall suspension elements
Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.
Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit
B1360048
Wall suspension elements产品已添加到关注清单中
pebble grey RAL 7032
“螺钉” 附件
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)产品已添加到关注清单中
附件
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mm产品已添加到关注清单中
Customising options for A9413331
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
防护等级
Necessary accessories: sealing kit
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
宽度
138 mm
深度
190 mm
高度
45 mm
电路板长度，下盒
180 mm
电路板宽度，下盒
118 mm
电路板长度，上盒
180 mm
电路板宽度，上盒
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 285 KB
- AutoCAD DWG-File 666 KB
- AutoCAD DXF-File 2,423 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 2,007 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008526.x_t 3,260 KB
- 00008526.STEP 10,961 KB
- 00008526.SAT 11,334 KB
Weight/1 part
242 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
