A9066329 SMART-CASE M, Vers. III

A9066329

SMART-CASE M, Vers. III

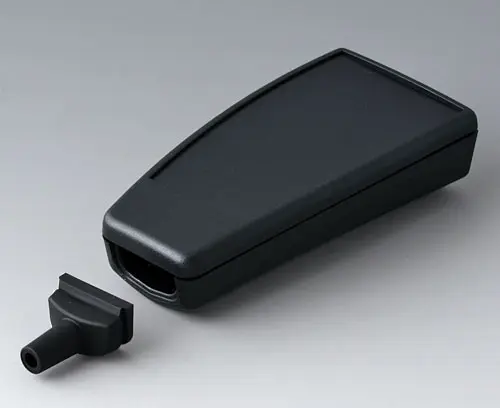

Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply

Case-top and base, cable strain, assembly kit

  • 适配系统部件
  • 按客户要求修改加工

“保护等级” 附件

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

关闭

A9166004

Set of pull-relief
产品已添加到关注清单中
PA 6
volcano

“挂墙支架” 配件

A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

A9166005

Adhesive foil M
产品已添加到关注清单中
A9166309 Holder M

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

关闭

A9166309

Holder M
产品已添加到关注清单中
ABS (UL 94 HB)
black RAL 9005
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

关闭

A9167029

Holding clamp
产品已添加到关注清单中
PA 6 (UL 94 HB)
black RAL 9005

“手提” 盒附件

A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

关闭

A9167019

Belt/pocket clip
产品已添加到关注清单中
PA 6 (UL 94 HB)
black RAL 9005

“螺钉” 附件

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
产品已添加到关注清单中

Customising options for A9066329

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
材料
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Cable gland
防护等级
颜色
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
96 mm
Width
47 mm
Height
24 mm
电路板长度,下盒
58 mm
电路板宽度,下盒
38 mm
电路板长度,上盒
61 mm
电路板宽度,上盒
40 mm
Keypad length
74.6 mm
Keypad width
40.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
38 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
