DIN 标准导轨接线盒

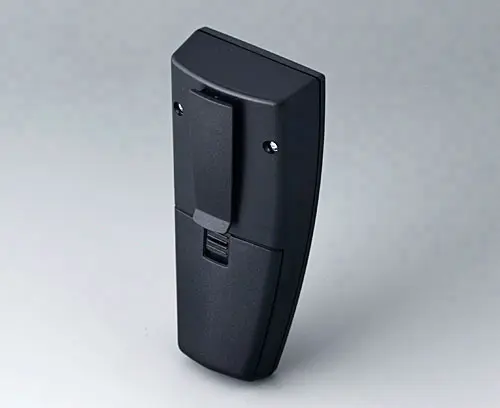

A9167019

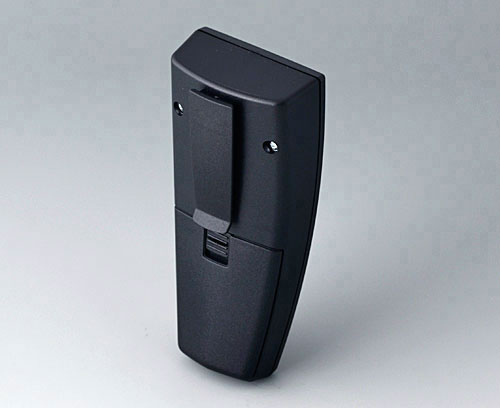

Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 Clip, assembly kit
添加到购物车内

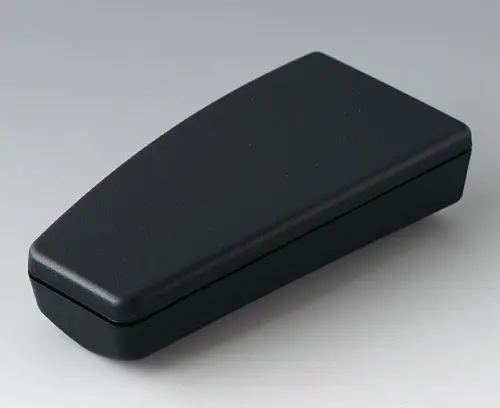

A9066109
SMART-CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066109
SMART-CASE M, Vers. I产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066119
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066119
SMART-CASE M, Vers. II产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066129
SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066129
SMART-CASE M, Vers. III产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066139
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066139
SMART-CASE M, Vers. IV产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066149
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066149
SMART-CASE M, Vers. V产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066209
SMART CASE M, Vers. I
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top without recessed operating area
Supply Base and top part, 1 screw
A9066209
SMART CASE M, Vers. I产品已添加到关注清单中
black RAL 9005
96x47x24mm

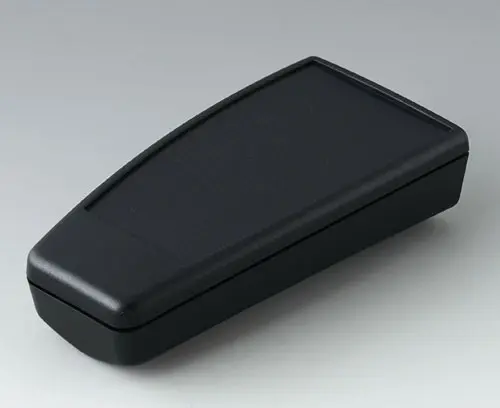

A9066219
SMART-CASE M, Vers. II
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066219
SMART-CASE M, Vers. II产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066319
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066319
SMART-CASE M, Vers. VI产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066329

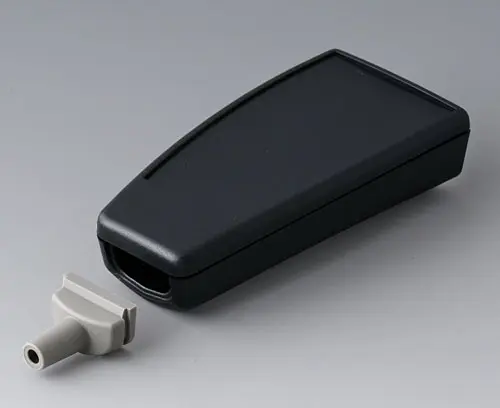

SMART-CASE M, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9066329
SMART-CASE M, Vers. III产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9066339
SMART-CASE M, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9066339
SMART-CASE M, Vers. IV产品已添加到关注清单中
black RAL 9005
96x47x24mm

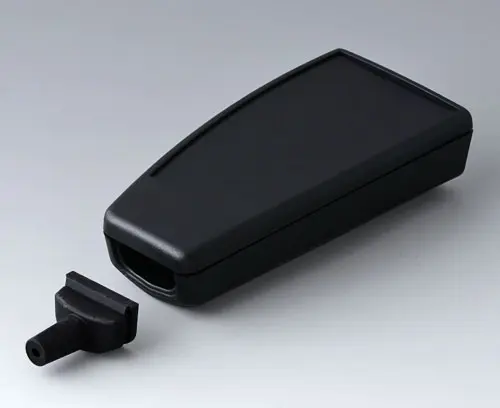

A9066349
SMART-CASE M, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9066349
SMART-CASE M, Vers. V产品已添加到关注清单中
black RAL 9005
96x47x24mm

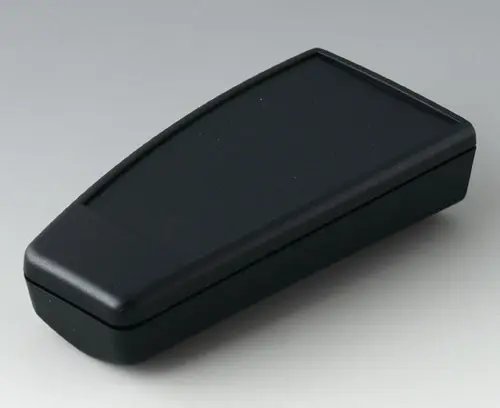

A9066419
SMART-CASE M, Vers. VI
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Case-top with recessed operating area
Supply Base and top part, 1 screw
A9066419
SMART-CASE M, Vers. VI产品已添加到关注清单中
black RAL 9005
96x47x24mm
A9067109
SMART-CASE L, Vers. I
Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067109
SMART-CASE L, Vers. I产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
A9067119
SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067119
SMART-CASE L, Vers. II产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067129
SMART-CASE L, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067129
SMART-CASE L, Vers. III产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067139
SMART-CASE L, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067139
SMART-CASE L, Vers. IV产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067149
SMART-CASE L, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067149
SMART-CASE L, Vers. V产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067209
SMART-CASE L, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9067209
SMART-CASE L, Vers. I产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
A9067219
SMART-CASE L, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9067219
SMART-CASE L, Vers. II产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067329
SMART-CASE L, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9067329
SMART-CASE L, Vers. III产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067339
SMART-CASE L, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9067339
SMART-CASE L, Vers. IV产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9067349
SMART-CASE L, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9067349
SMART-CASE L, Vers. V产品已添加到关注清单中
black RAL 9005
140x62.7x30.5mm
,
A9068109
SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068109
SMART-CASE XL, Vers. I产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
A9068119
SMART-CASE XL, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068119
SMART-CASE XL, Vers. II产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,
A9068129

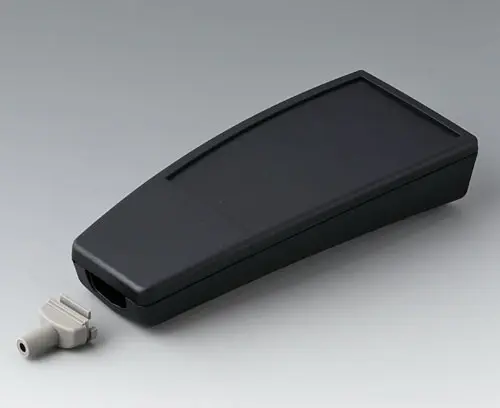

SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068129
SMART-CASE XL, Vers. III产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,

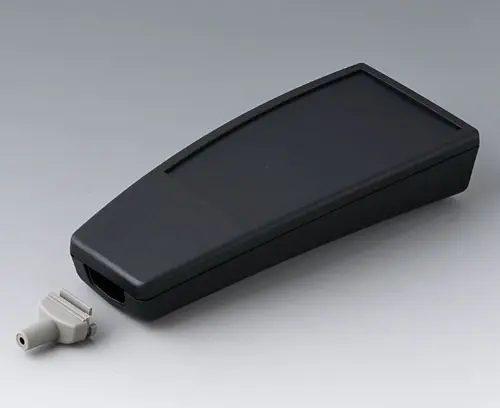

A9068139
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068139
SMART-CASE XL, Vers. IV产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,
A9068149

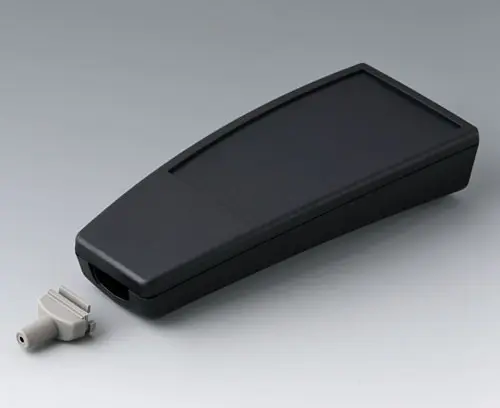

SMART-CASE XL, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068149
SMART-CASE XL, Vers. V产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,
A9068209
SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
Supply Case-top and base, battery compartment lid, assembly kit
A9068209
SMART-CASE XL, Vers. I产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
A9068219
SMART-CASE XL, Vers. II
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
Version Without battery compartment
Supply Case-top and base, assembly kit
A9068219
SMART-CASE XL, Vers. II产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,
A9068329
SMART-CASE XL, Vers. III
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)
Supply Case-top and base, cable strain, assembly kit
A9068329
SMART-CASE XL, Vers. III产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,

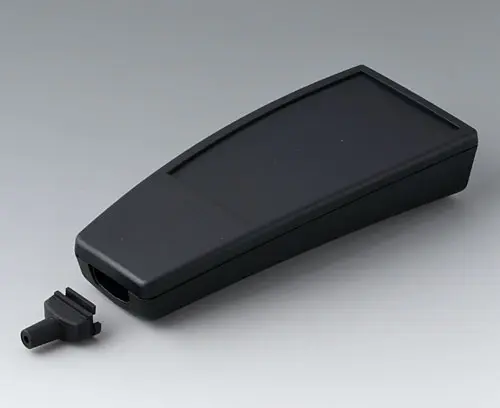

A9068339
SMART-CASE XL, Vers. IV
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)
Supply Case-top and base, cable strain, assembly kit
A9068339
SMART-CASE XL, Vers. IV产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,
A9068349
SMART-CASE XL, Vers. V
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)
Supply Case-top and base, cable strain, assembly kit
A9068349
SMART-CASE XL, Vers. V产品已添加到关注清单中
black RAL 9005
168x74.4x35.4mm
,
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 174 KB
- AutoCAD DWG-File 328 KB
- AutoCAD DXF-File 684 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
