SOFT-CASE M
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
VersionWith battery compartment for 2 x AAA, accessible from the outside
SupplyTop and bottom part, battery compartment lid, assembly kit
添加到购物车内
“中间环” 配件
A9151011
Intermediate ring M
Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring
A9151011
Intermediate ring M产品已添加到关注清单中
matt chromed
68x108x16mm
A9151017
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151017
Intermediate ring M产品已添加到关注清单中
off-white RAL 9002
68x108x16mm
A9151018
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151018
Intermediate ring M产品已添加到关注清单中
lava
68x108x16mm
A9151118
Intermediate protection ring M
Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring
A9151118
Intermediate protection ring M产品已添加到关注清单中
volcano
68x108x16mm
A9151219
Intermediate ring M
For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring
A9151219
Intermediate ring M产品已添加到关注清单中
black RAL 9005
68x108x16mm
“电池” 配件

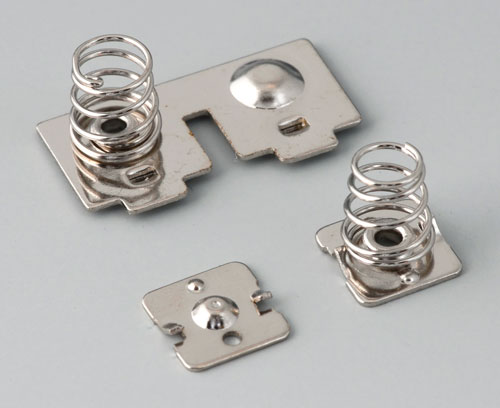

A9151010
Set of battery clips, 2 x AAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9151010
Set of battery clips, 2 x AAA产品已添加到关注清单中
nickel-plated
“挂墙支架” 配件

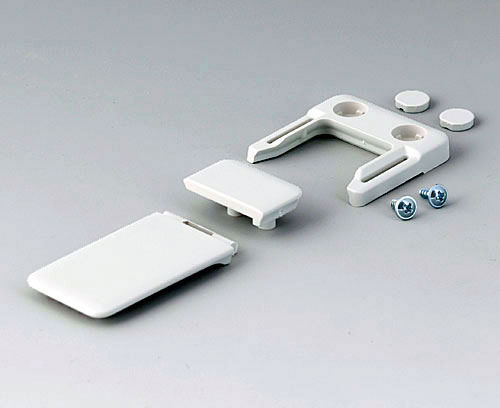

A9152047
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152047
Combi-Clip产品已添加到关注清单中
off-white RAL 9002
45x27mm
“手提” 盒附件
A9100001
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.
Supply 1 ring eyelet
A9100001
Ring eyelet产品已添加到关注清单中
volcano
A9152047
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152047
Combi-Clip产品已添加到关注清单中
off-white RAL 9002
45x27mm
“螺钉” 附件
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)产品已添加到关注清单中
附件
A9152057
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152057
Tilt foot bar产品已添加到关注清单中
off-white RAL 9002
Customising options for A9051117
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
防护等级
颜色
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
65 mm
宽度
105 mm
高度
19 mm
电路板长度，下盒
26 mm
电路板宽度，下盒
96 mm
电路板长度，上盒
56 mm
电路板宽度，上盒
96 mm
Keypad length
46.7 mm
Keypad width
70.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 518 KB
- AutoCAD DWG-File 1,156 KB
- AutoCAD DXF-File 4,405 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 2,132 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007955.x_t 9,764 KB
- 00007955.STEP 23,378 KB
- 00007955.SAT 19,753 KB
Weight/1 part
54 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
