DIN 标准导轨接线盒
A9053118
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
VersionWith battery compartment for 4 x AA, accessible from the outside
SupplyTop and bottom part, battery compartment lid, assembly kit
添加到购物车内
“中间环” 配件

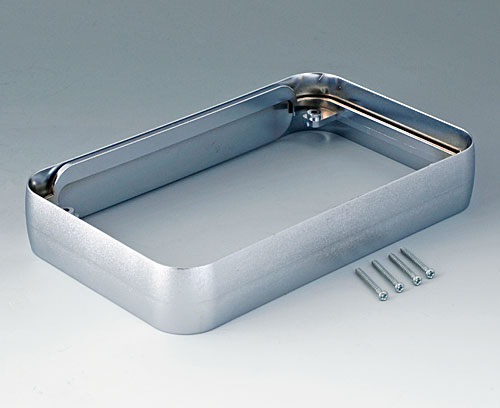

A9153011
Intermediate ring XL
Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153011
Intermediate ring XL产品已添加到关注清单中
matt chromed
96x154x26mm
A9153017
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153017
Intermediate ring XL产品已添加到关注清单中
off-white RAL 9002
96x154x26mm

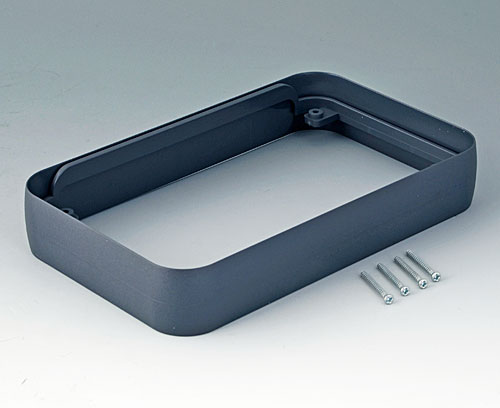

A9153018
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153018
Intermediate ring XL产品已添加到关注清单中
lava
96x154x26mm

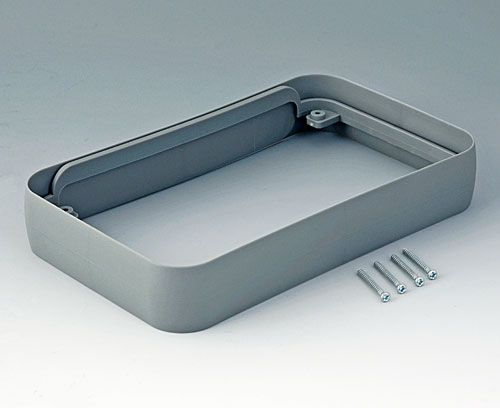

A9153118
Intermediate ring XL
Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153118
Intermediate ring XL产品已添加到关注清单中
volcano
96x154x26mm
A9153219
Intermediate ring XL
For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153219
Intermediate ring XL产品已添加到关注清单中
black RAL 9005
96x154x26mm
“电池” 配件

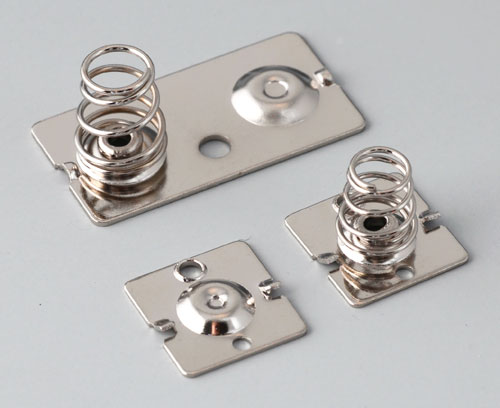

A9152010
Set of battery clips, 2/4 x AA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9152010
Set of battery clips, 2/4 x AA产品已添加到关注清单中
nickel-plated
“挂墙支架” 配件
A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-Clip产品已添加到关注清单中
lava
45x27mm
“手提” 盒附件
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyelet产品已添加到关注清单中
volcano
A9152048
Combi-Clip
Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply 1 set
A9152048
Combi-Clip产品已添加到关注清单中
lava
45x27mm
“螺钉” 附件
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)产品已添加到关注清单中
附件
A9152058
Tilt foot bar
Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.
Supply 1 tilt foot bar, assembly kit
A9152058
Tilt foot bar产品已添加到关注清单中
lava
Customising options for A9053118
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 应用示例
- 采购有关数据
材料
防护等级
颜色
lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
92 mm
宽度
150 mm
高度
28 mm
电路板长度，下盒
30 mm
电路板宽度，下盒
140 mm
电路板长度，上盒
82 mm
电路板宽度，上盒
140 mm
Keypad length
67.15 mm
Keypad width
101.05 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 598 KB
- AutoCAD DWG-File 1,249 KB
- AutoCAD DXF-File 4,758 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 2,196 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 0000927A.x_t 9,687 KB
- 0000927A.STEP 22,860 KB
- 0000927A.SAT 19,315 KB
Weight/1 part
117 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9053118请务必索取报价！
