B2804027

STYLE-CASE L

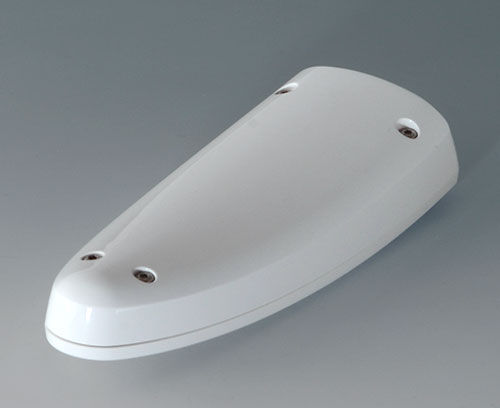

Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply

Top and bottom part, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 B2804027

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“保护等级” 附件

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

A9199005

Strain relief
产品已添加到关注清单中

volcano
B2904011 Sealing L

B2904011

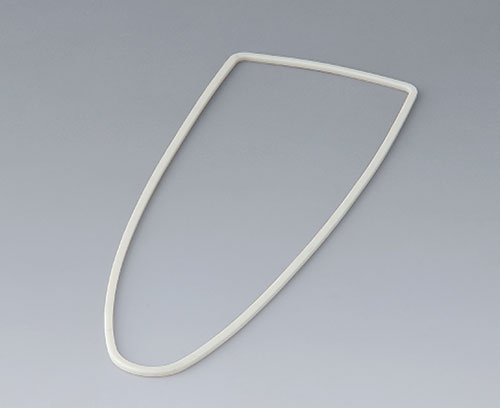

Sealing L Application: for increasing the protection class, of STYLE-CASE L.

Supply 1 sealing

B2904011

Sealing L
产品已添加到关注清单中
C2353849 Flexible cable grommet Ø 5,3

C2353849

Flexible cable grommet Ø 5,3

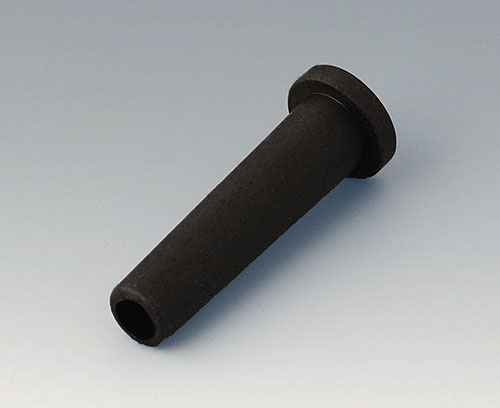

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

C2353849

Flexible cable grommet Ø 5,3
产品已添加到关注清单中
black

“挂墙支架” 配件

B2904031 Adhesive foil L

B2904031

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

B2904031

Adhesive foil L
产品已添加到关注清单中
B2904037 Holder L

B2904037

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

B2904037

Holder L
产品已添加到关注清单中

traffic white RAL 9016

“螺钉” 附件

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
产品已添加到关注清单中

Customising options for B2804027

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

防护等级

Necessary accessories: sealing kit,
颜色
traffic white RAL 9016
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
166 mm
宽度
64 mm
高度
31 mm
电路板长度，下盒
124 mm
电路板宽度，下盒
34 mm
电路板长度，上盒
68 mm
电路板宽度，上盒
50 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
94 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B2804027请务必索取报价！
