B2904037 Holder L

B2904037

Holder L

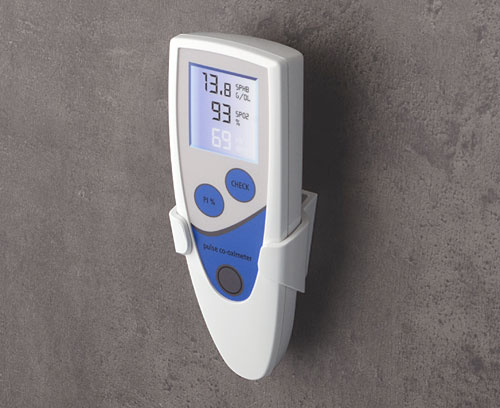

Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply

1 holder

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

B2804017 STYLE-CASE L

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

B2804017

STYLE-CASE L
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
B2804027 STYLE-CASE L

B2804027

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

关闭

B2804027

STYLE-CASE L
产品已添加到关注清单中
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40

附件

B2904031 Adhesive foil L

B2904031

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

关闭

B2904031

Adhesive foil L
产品已添加到关注清单中

Customising options for B2904037

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 采购有关数据
颜色
traffic white RAL 9016
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
