DIN 标准导轨接线盒
EE166059
SYNERGY E160

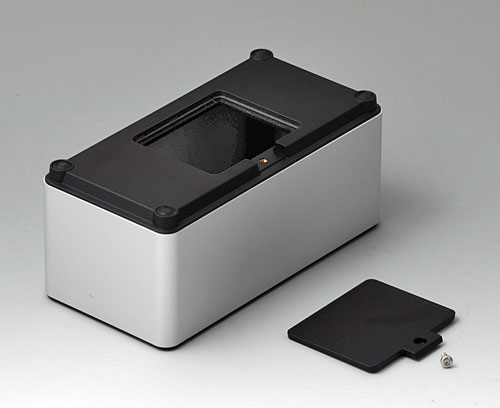

4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.
SupplyTop part, bottom part, lid, aluminium profile, assembly kit
添加到购物车内
“电池” 配件
A9193033
Polarity reversal protection device, positive terminal AA
For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193033
Polarity reversal protection device, positive terminal AA产品已添加到关注清单中
off-white RAL 9002
A9193034
Polarity reversal protection device, positive terminal AAA
For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.
Supply Polarity reversal protection device
A9193034
Polarity reversal protection device, positive terminal AAA产品已添加到关注清单中
off-white RAL 9002
A9193035
Battery clip, AA
For AA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193035
Battery clip, AA产品已添加到关注清单中
nickel-plated
A9193036
Battery clip, AAA
For AAA round cells. For installation on PCBs. 2 pcs required per round cell.
Supply 1 battery clip
A9193036
Battery clip, AAA产品已添加到关注清单中
nickel-plated
A9193037
Button cell holder, Ø 20 mm
For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193037
Button cell holder, Ø 20 mm产品已添加到关注清单中
A9193038
Button cell holder, Ø 23 mm
For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193038
Button cell holder, Ø 23 mm产品已添加到关注清单中
A9193039
Button cell holder, Ø 12 mm
For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193039
Button cell holder, Ø 12 mm产品已添加到关注清单中
A9193040
Button cell holder, Ø 16 mm
For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.
Version Horizontal
Supply 1 button cell holder
A9193040
Button cell holder, Ø 16 mm产品已添加到关注清单中
EZ040609
Battery compartment, 3 x AA
For 3 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.
Supply 1 battery compartment, set of battery clips
EZ040609
Battery compartment, 3 x AA产品已添加到关注清单中
black RAL 9005
“挂墙支架” 配件
EZ030109
Wall suspension element
Optional wall mounting with only one screw.
Supply 1 holder and cover plate, 2 anti-slide feet
EZ030109
Wall suspension element产品已添加到关注清单中
black RAL 9005
“螺钉” 附件
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)产品已添加到关注清单中
EZ031209
Extender kit
For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.
Supply 4 extender, 4 screws (Torx 8)
EZ031209
Extender kit产品已添加到关注清单中
black RAL 9005
Customising options for EE166059
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
材料
Frame
Plastic parts
防护等级
颜色
Frame
matt anodised,
Plastic parts black RAL 9005
Plastic parts black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
长度
160 mm
宽度
80 mm
高度
70 mm
电路板长度，下盒
144.5 mm
电路板宽度，下盒
64.5 mm
电路板长度，上盒
144.5 mm
电路板宽度，上盒
64.5 mm
Keypad length
142.1 mm
Keypad width
62.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 440 KB
- AutoCAD DWG-File 887 KB
- AutoCAD DXF-File 3,410 KB
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 1,155 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00015575.x_t 6,555 KB
- 00015575.step 12,521 KB
- 00015575.sat 18,775 KB
Weight/1 part
286 g
Customs tariff number
(OKW product)
(OKW product)
76042100
Country of manufacture
Other country
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 EE166059请务必索取报价！
