A5116000

Nut cover 16, without line

Suitable for spindle-shaped knob 16. Nut cover simply to pin up.

Supply

1 nut cover

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for A5116000

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

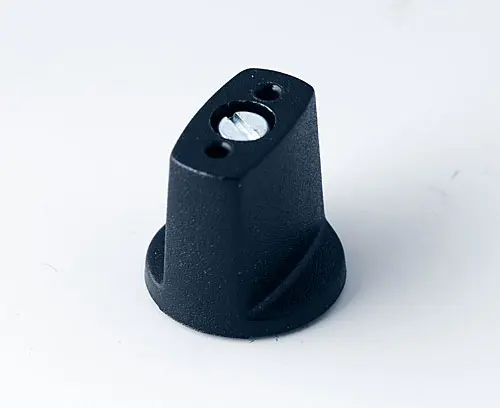

A2316040 SPINDLE-SHAPED KNOB 16, without line

A2316040

SPINDLE-SHAPED KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2316040

SPINDLE-SHAPED KNOB 16, without line
product added to your basket

black RAL 9005
16x16mm
Bore hole 4mm

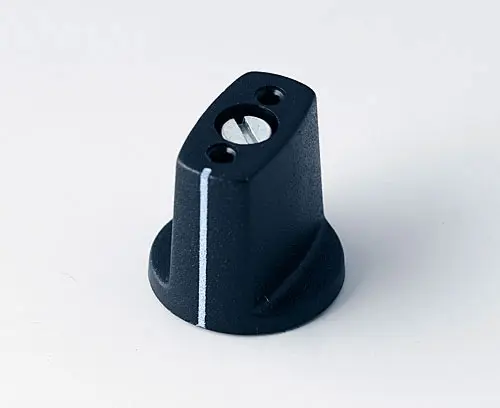

A2416030 SPINDLE-SHAPED KNOB 16, with line

A2416030

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.5 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2416030

SPINDLE-SHAPED KNOB 16, with line
product added to your basket

black RAL 9005
16x16mm
Bore hole 3mm

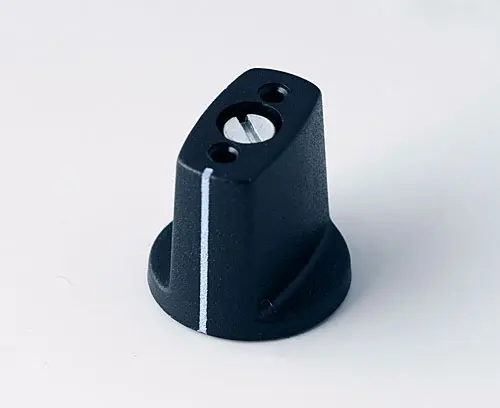

A2416040 SPINDLE-SHAPED KNOB 16, with line

A2416040

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2416040

SPINDLE-SHAPED KNOB 16, with line
product added to your basket

black RAL 9005
16x16mm
Bore hole 4mm
A2416048 SPINDLE-SHAPED KNOB 16, with line

A2416048

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

A2416048

SPINDLE-SHAPED KNOB 16, with line
product added to your basket

dusty grey RAL 7037
16x16mm
Bore hole 4mm
Material

Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
0.3 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
