EVOTEC range extended by a smaller version

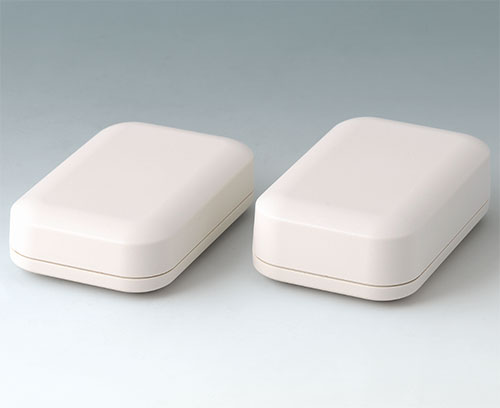

EVOTEC enclosures size 80

The OKW EVOTEC table top enclosure range has been supplemented by a further version, size 80. This extends the family of enclosures to a total of 5 standard sizes and leaves plenty of scope for individual customer requirements.

EVOTEC is characterised by soft contours. The case is elegant, ergonomic, but robust enough for harsh working environments. Possible applications include measuring and control engineering, IoT/IIoT, medical field and laboratory technology as well as environmental technology. The smallest size is 80 x 50 x 22 mm (L x W x H), and the top part has a flat surface. Four other standard sizes are also available: 100 (100 x 62 mm), 150 (150 x 93 mm), 200 (200 x 124 mm) and 250 (250 x 155 mm). The latter two versions are also available with an operating panel ergonomically inclined by 12°. These are available without or alternatively with a recessed area for decor foils or membrane keypads.

All EVOTEC enclosures have fastening pillars in the top and bottom parts for installing PCBs. Self-adhesive rubber feet provide stability on flat surfaces. The enclosures are assembled using stainless steel Torx screws. The standard EVOTEC is made of UV-resistant ASA+PC-FR (UL 94 V-0) in off-white (RAL 9002). The enclosures provide special protection against dust and splash water. Thanks to an optionally available seal, the range has the protection class IP65. In conjunction with the material, this offers the built-in electronics a high-quality safety standard. Other accessories include a wall suspension element, a DIN rail fastening element and self-tapping screws. In order to meet the customer's requirements, the enclosures can be customised on request: painting in company colours, printing of the company logo, mechanical processing for interfaces, laser marking and much more.

The different control panels offer great scope for creativity to meet individual requirements. The table top enclosure can also be used for wall-mounted applications such as access and security control, a machine control unit or data acquisition equipment.

Link website EVOTEC
