EVOTEC enclosure range: New size 125

EVOTEC enclosure range: New size 125

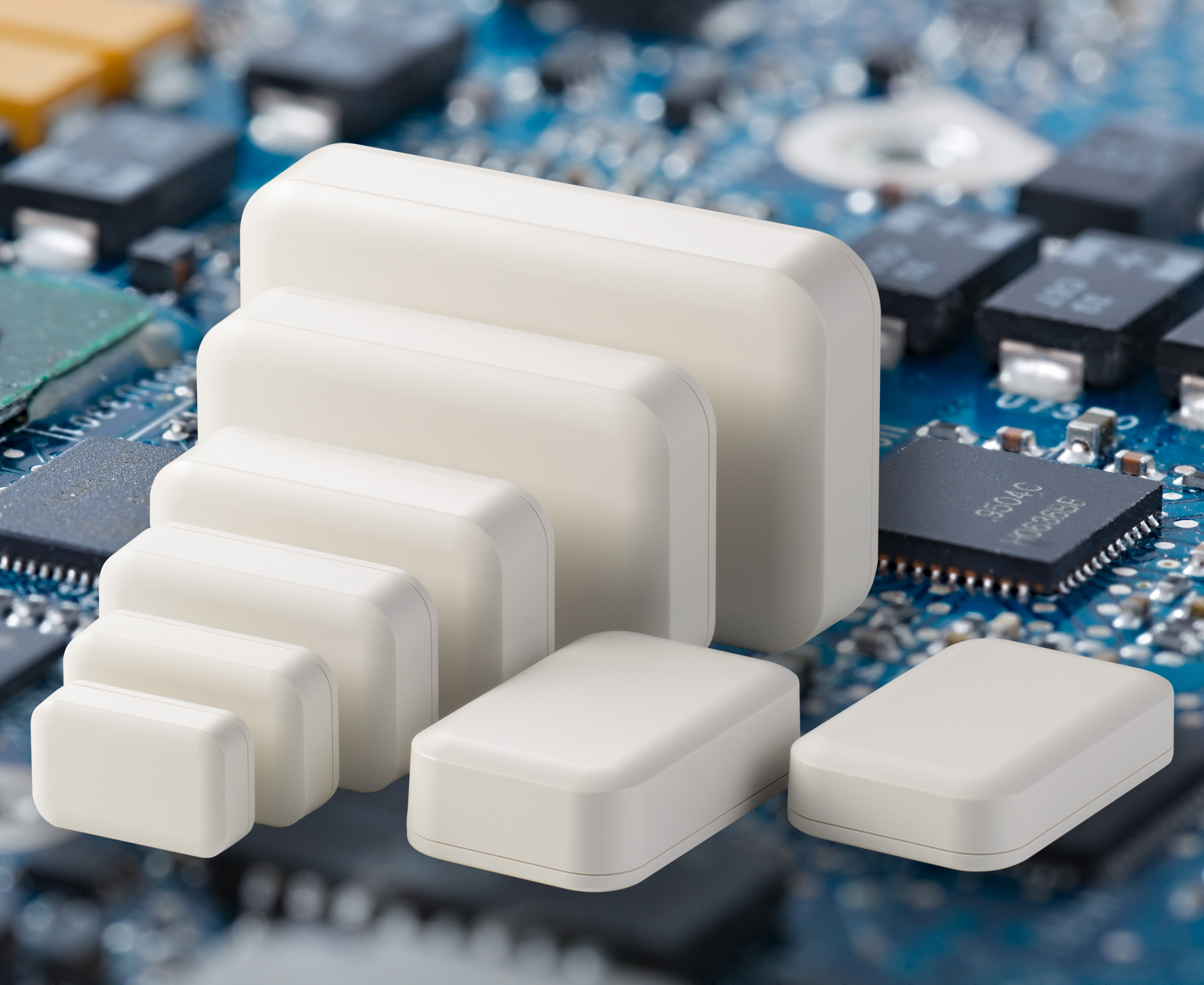

The EVOTEC range of table-top enclosures, already consisting of 5 standard enclosures, has been supplemented by a further version. The new "EVOTEC 125" version optimally rounds off the product portfolio between the sizes 100 and 150.

The EVOTEC enclosure in the standard colour off-white (RAL 9002) is optionally available with a flat top part or as a desk-top version. The following sizes are available: the smallest size with the dimensions 80 x 50 x 22/26 mm (L x W x H), the top part has a flat surface. Four other standard sizes are also available: 100 (100 x 62 x 26/31 mm), 150 (150 x 93 x 35/45 mm), 200 (200 x 124 x 45 mm) and 250 (250 x 155 x 54 mm). The last three versions are also available with an operating surface ergonomically inclined by 12°. There are two more new flat versions with the following dimensions:

  • 125 x 78 x 30 mm (for compact installations with a flat top part)
  • 125 x 78 x 37 mm (for more installation volume with a high top part)

The housings are made of UV-resistant ASA+PC-FR material. Outdoor applications are made possible by an optional seal (protection class IP 65). Non-slip rubber feet ensure reliable desk-top positioning. Other accessories include self-tapping screws for mounting PCBs, a wall suspension element for sizes 200/250 and mounting hardware for standard DIN rails.

The variable plastic enclosures have a modern appearance, coupled with useful features: their soft contours make them look elegant and the straight, raised surfaces allow the easy integration of plug/network connections. The flat enclosures can be used horizontally or vertically, depending on the application. Various options for customer-specific modification are available in the in-house service centre, including mechanical processing, painting, printing and laser marking, EMC protection measures and assembly work to complete the units.

Link website EVOTEC
