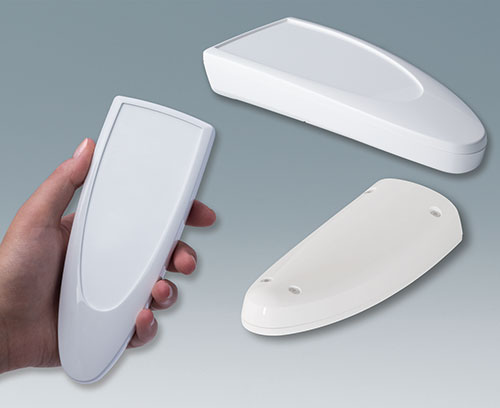

STYLE-CASE enclosure for mobile electronics applications

AltText

The STYLE-CASE range of hand-held enclosures by OKW Gehäusesysteme has been extended by a new variant. Up to now, all enclosures were only available with a battery compartment fitted. In addition to the sizes S and M, the size L is now also available without a battery compartment. This offers even more space for the internal electronics.

The ergonomic STYLE-CASE is particularly suitable for design-oriented remote controls of all kinds, especially for medical technology and social applications, as well as in the office, at home and in industry. The enclosures are a special highlight for modern terminals thanks to their highly polished finish. The recess in the top part provides perfect protection for decor foils or membrane keypads. To improve its protection class (IP65), a sealing kit is available for the enclosure and the battery compartment (as an optional accessory). Assembly is effected using Torx stainless steel screws at the back. PCBs and components can be mounted inside using the existing fastening pillars.

The standard STYLE-CASE comes in three sizes - S (123 x 48 x 24 mm), M (147 x 56 x 27 mm) and L (166 x 64 x 31 mm). You can choose between the two plastics ASA in traffic white (RAL 9016) and the infrared-permeable material PMMA (Perspex) in black. Both materials have UL 94 HB rating for flammability. Each housing consists of an upper part, a lower part including the battery compartment lid and an integrated battery compartment for 2 x AA round cells. The new size L version is only available in traffic white ASA. It is the first enclosure in this series that does not have a battery compartment. Thanks to suitable accessories such as strain relief and a flexible anti-kink sleeve (Ø 5.3 mm), this version is ideal for wired applications. An optional wall suspension element allows for secure storage of the enclosures. In order not to damage the mounting surface, the accessory can also be fitted using a suitable adhesive foil instead of drilling holes.

The standard enclosures can be customised. Options include CNC processing, painting, decor foils, EMC shielding, printing / laser marking, packaging and assembly.

Link website STYLE-CASE
