COMTEC 120 H, Vers. I

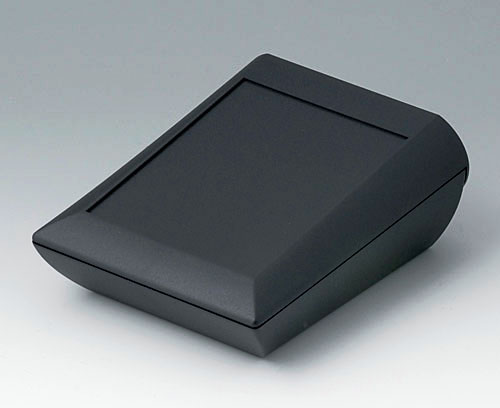

Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version

Without battery compartment

Supply

1 top and bottom part, assembly kit

2D PDF 视图
3 维 PDF 版视图
3D/2D 图纸资料下载

请制作 PDF 数据表用于 A0612109

请选择产品信息以输入数据表。

添加到购物车内 添加到购物车内 添加到购物车内
产品已添加到关注清单中
继续查询或 开启您的购物车

“挂墙支架” 配件

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

B1350048

Wall suspension elements
产品已添加到关注清单中

pebble grey RAL 7032

“螺钉” 附件

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

A9199008

Set of screws
产品已添加到关注清单中

Customising options for A0612109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

材料

防护等级
颜色
black RAL 9005
标准根据
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
宽度
120 mm
深度
150 mm
高度
62.8 mm
电路板长度，下盒
123 mm
电路板宽度，下盒
94 mm
电路板长度，上盒
137 mm
电路板宽度，上盒
105 mm
Keypad length
109.85 mm
Keypad width
87.85 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
162 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A0612109请务必索取报价！
