AltText

B2129307

Front / rear panel D, flat

For case without side panels.

Supply

1 front panel

  • 应用于
  • 按客户要求修改加工
AltText

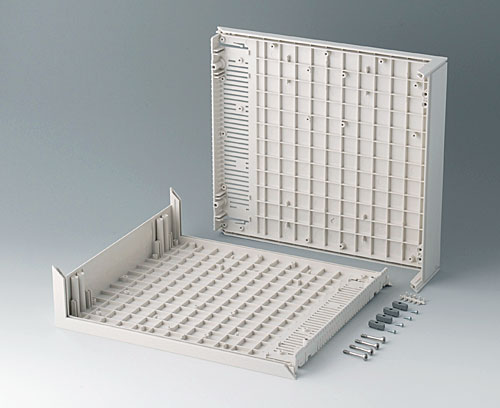

B2010007

L-shells D 220, without holes Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

关闭

B2010007

L-shells D 220, without holes
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
AltText

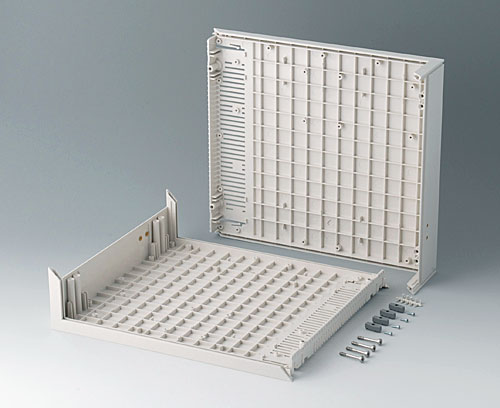

B2010107

L-shells D 220, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

关闭

B2010107

L-shells D 220, with holes for handle
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
AltText

B2011007

L-shells D 160, without holes Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

关闭

B2011007

L-shells D 160, without holes
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
AltText

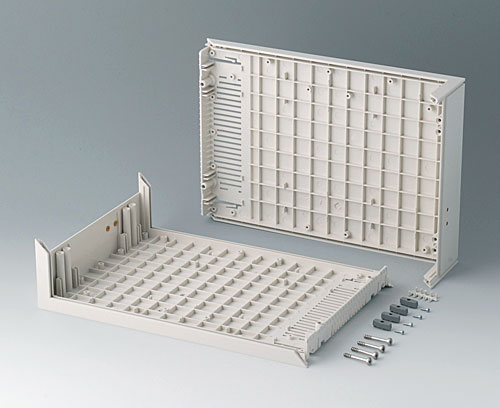

B2011107

L-shells D 160, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

关闭

B2011107

L-shells D 160, with holes for handle
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
AltText

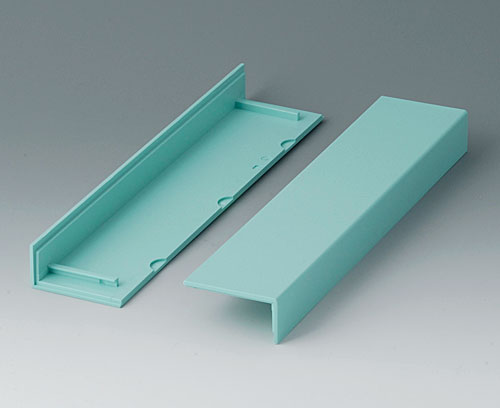

B2020005

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

关闭

B2020005

Side trims 220, without ventilation
产品已添加到关注清单中
ABS
lagoon
AltText

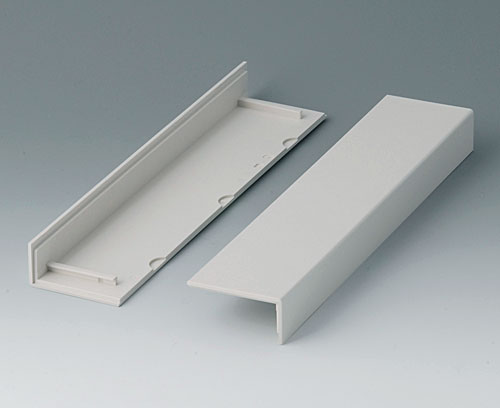

B2020007

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

关闭

B2020007

Side trims 220, without ventilation
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

B2021005

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

关闭

B2021005

Side trims 220, with ventilation
产品已添加到关注清单中
ABS
lagoon
AltText

B2021007

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

关闭

B2021007

Side trims 220, with ventilation
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

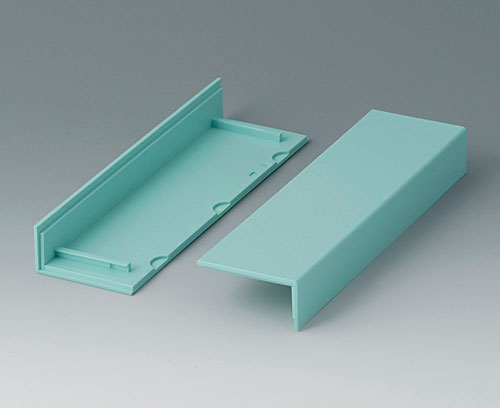

B2022005

Side trims 160, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

关闭

B2022005

Side trims 160, without ventilation
产品已添加到关注清单中
ABS
lagoon
AltText

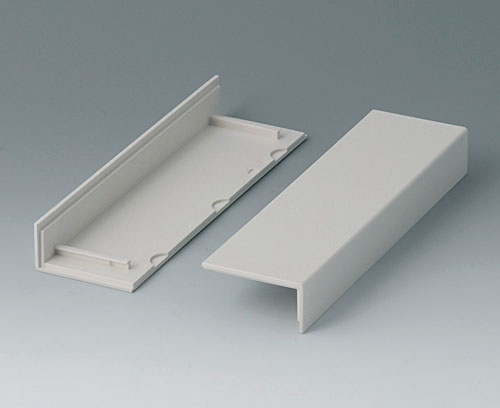

B2022007

Side trims 160, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

关闭

B2022007

Side trims 160, without ventilation
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

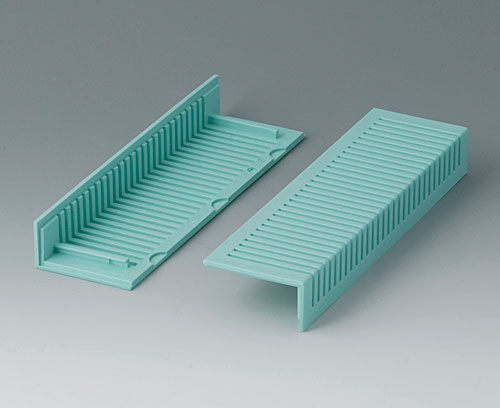

B2023005

Side trims 160, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

关闭

B2023005

Side trims 160, with ventilation
产品已添加到关注清单中
ABS
lagoon
AltText

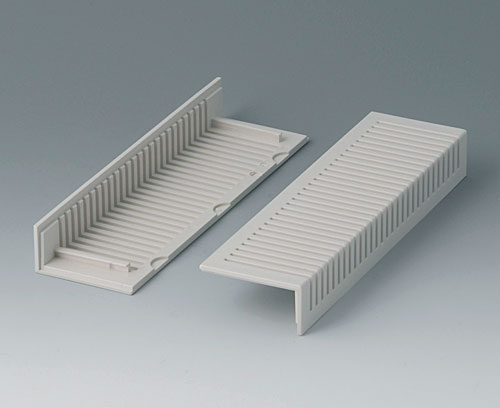

B2023007

Side trims 160, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

关闭

B2023007

Side trims 160, with ventilation
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

B2030007

Side panels 220, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

关闭

B2030007

Side panels 220, without holes
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

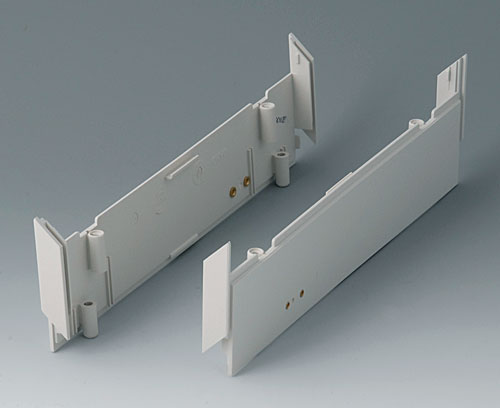

B2030107

Side panels 220, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

关闭

B2030107

Side panels 220, with holes for handle
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

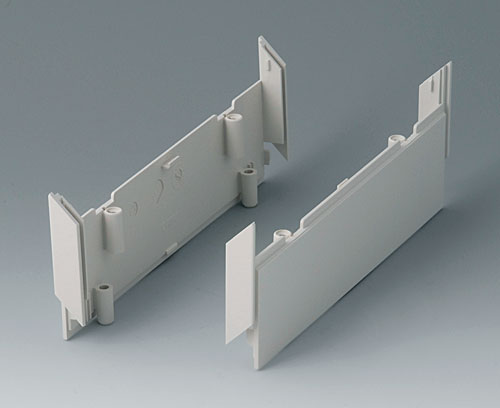

B2031007

Side panels 160, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

关闭

B2031007

Side panels 160, without holes
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

B2031107

Side panels 160, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

关闭

B2031107

Side panels 160, with holes for handle
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
AltText

B2129507

Handle bar D For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.

Supply 2 side arms, 1 Al-profile, antislipping device, lid, assembly kit

关闭

B2129507

Handle bar D
产品已添加到关注清单中
PA 6
off-white RAL 9002
AltText

B2210005

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

关闭

B2210005

MEDITEC D 220, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

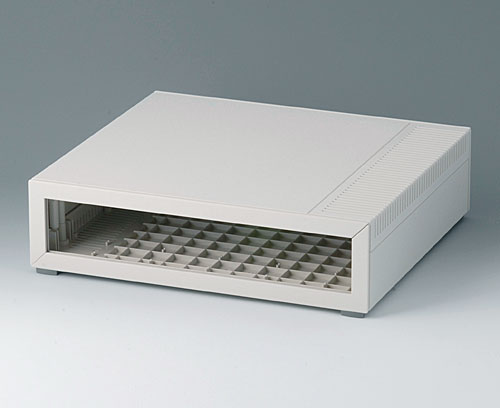

B2210007

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

关闭

B2210007

MEDITEC D 220, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

B2210015

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

关闭

B2210015

MEDITEC D 220, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

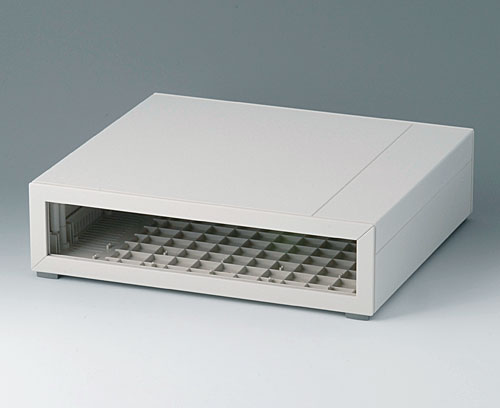

B2210017

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

关闭

B2210017

MEDITEC D 220, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

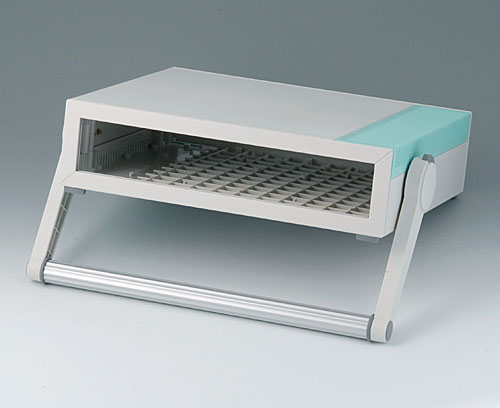

B2210105

MEDITEC D 220, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar

关闭

B2210105

MEDITEC D 220, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

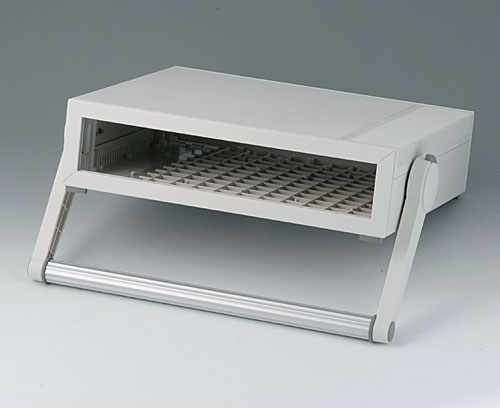

B2210107

MEDITEC D 220, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar

关闭

B2210107

MEDITEC D 220, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

B2210115

MEDITEC D 220, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar

关闭

B2210115

MEDITEC D 220, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

B2210117

MEDITEC D 220, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar

关闭

B2210117

MEDITEC D 220, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
AltText

B2211005

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

关闭

B2211005

MEDITEC D 160, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

B2211007

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

关闭

B2211007

MEDITEC D 160, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

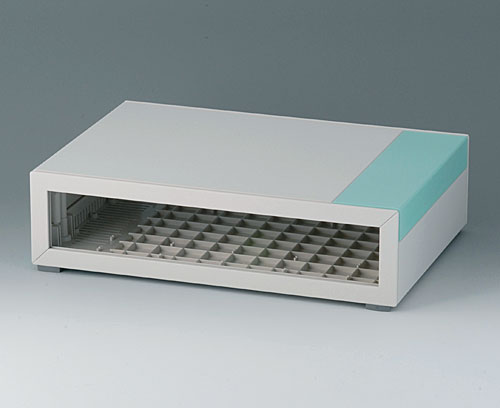

B2211015

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

关闭

B2211015

MEDITEC D 160, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

B2211017

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

关闭

B2211017

MEDITEC D 160, without handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

B2211105

MEDITEC D 160, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar

关闭

B2211105

MEDITEC D 160, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

B2211107

MEDITEC D 160, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar

关闭

B2211107

MEDITEC D 160, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

B2211115

MEDITEC D 160, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet, 1 handle bar

关闭

B2211115

MEDITEC D 160, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
AltText

B2211117

MEDITEC D 160, with handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet, 1 handle bar

关闭

B2211117

MEDITEC D 160, with handle bar
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40

Customising options for B2129307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
off-white RAL 9002
Width
271.6 mm
Height
55.6 mm
Thickness
3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
47 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
