Meditec 医疗器械盒
大型塑料机盒

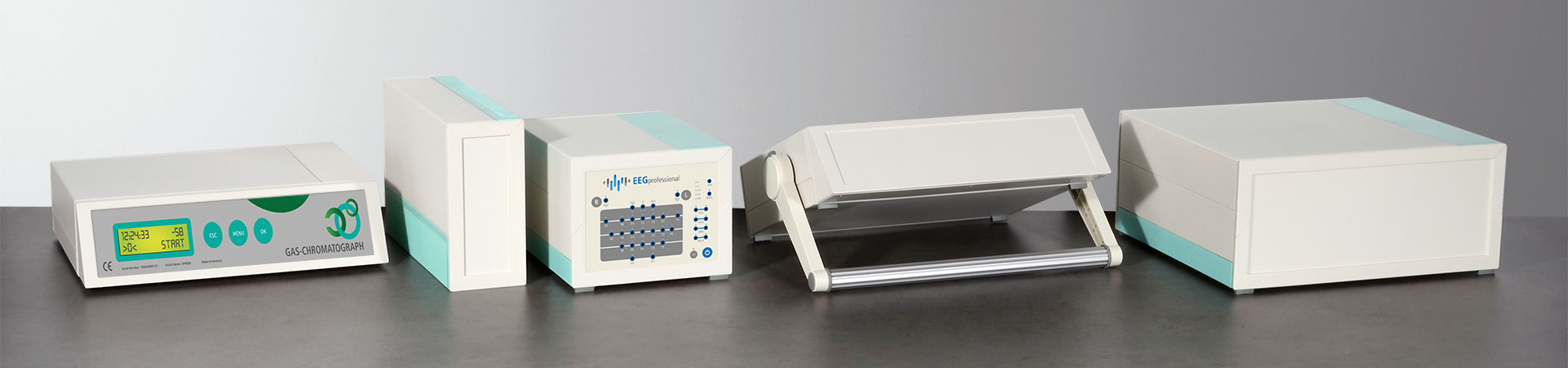

令人信服的设计款式表现了 MEDITEC 医疗器械盒系列的特征，是为提供高精功能组件的豪华版的大型机盒系统的基础。
- 优雅并实用的设计款式
- 适合用于桌面、墙壁和移动式的多种应用

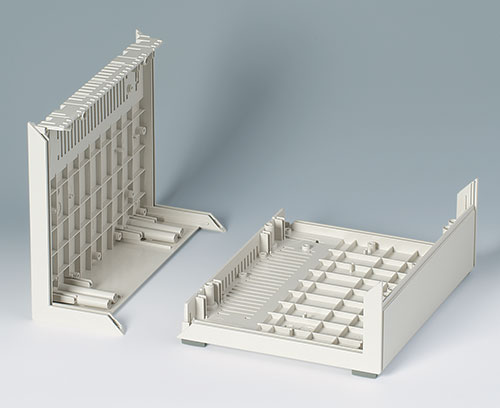

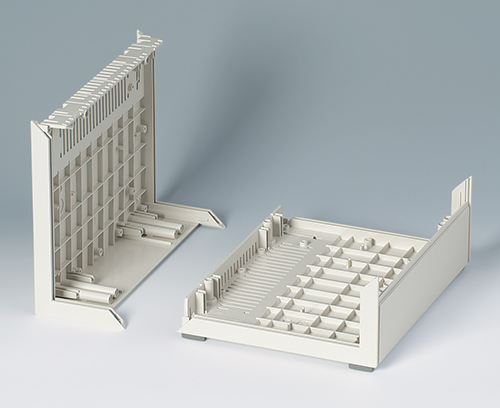

- 通过内设格栅状肋条达到高稳定性
- 简易装配的壳体设计

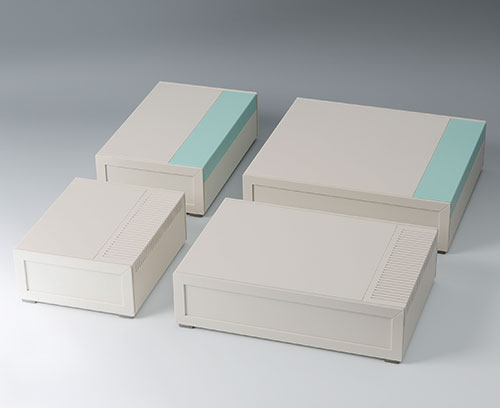

- 4 种规格，符合欧洲卡格式，单卡、双卡和特长型

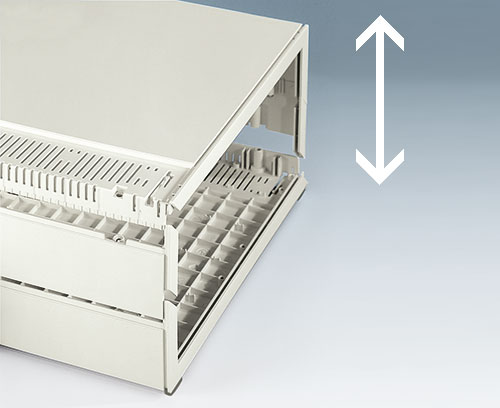

- 2 个标准高度，如需要其它高度，可以使用连接器将两个中间壳体连接达到

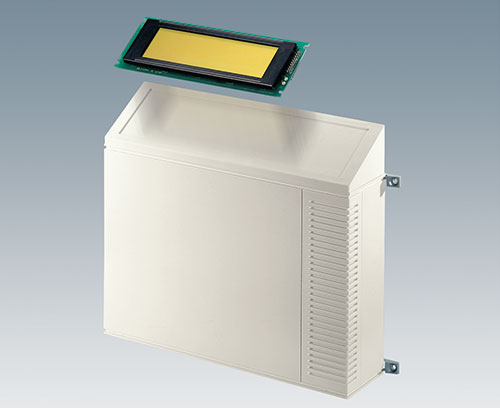

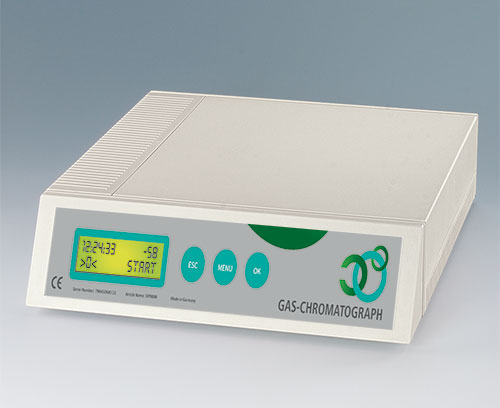

- 符合人体工程学的倾斜操作面; 当使用中间壳体时，侧板条能最佳地封闭接口

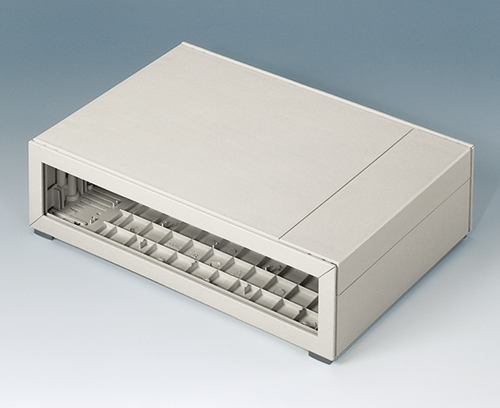

- 塑料前/后板具有相同的表面质量，可进行灵活加工

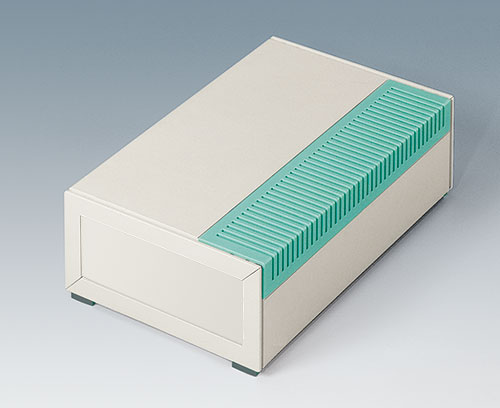

- 无或带通风槽的侧板可推入; 与壳体相同颜色或海蓝色可选，如有需要也可选特殊颜色
- 机盒稳固脚包含在供货范围内

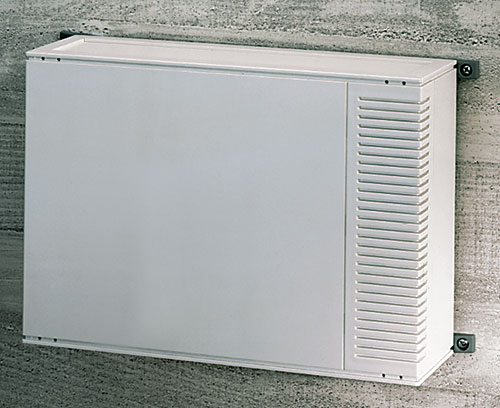

- 灵活挂墙支架带固定片

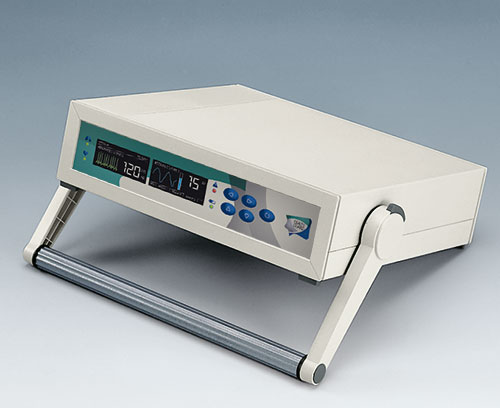

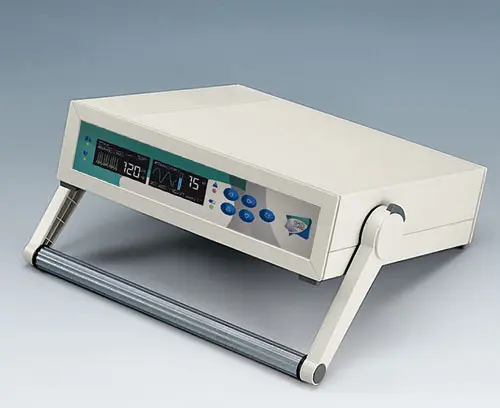

- 可带提手型; 利于路途的携带，如果需要，调节机构允许 30° 倾斜，使用户在现场有一个有利的设置角度

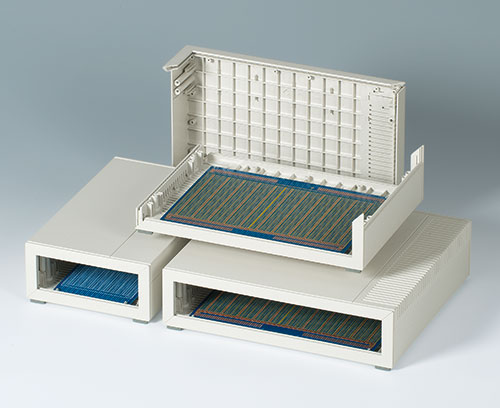

- 固定柱用于固定电路板和元器件

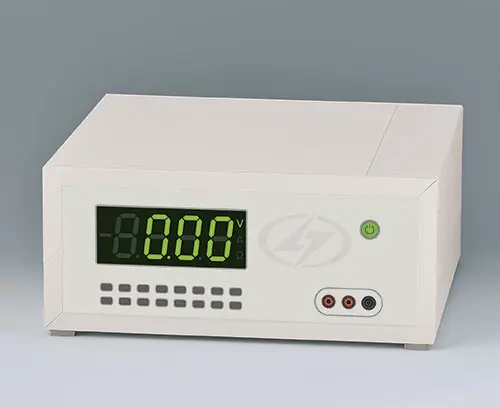

应用范围

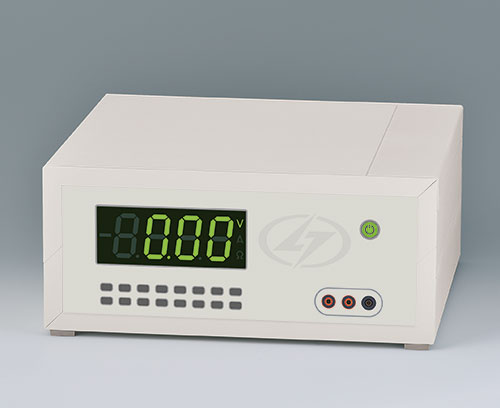

实验室和医疗技术领域。 保健领域。 工艺工程控制。 测量和控制技术。 计算机外围设备。 调制解调器和界面接口。 通信和网络技术。 数据收集。
请选择所需的产品类型或尺寸，或点击产品列表末尾的“选择所有产品”按键。
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screws产品已添加到关注清单中
B2030007
Side panels 220, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030007
Side panels 220, without holes产品已添加到关注清单中
off-white RAL 9002
B2030107
Side panels 220, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030107
Side panels 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
B2031007
Side panels 160, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031007
Side panels 160, without holes产品已添加到关注清单中
off-white RAL 9002
B2031107
Side panels 160, with holes for handle
Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031107
Side panels 160, with holes for handle产品已添加到关注清单中
off-white RAL 9002
B2116007
Sloping control panel E
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version E (for MEDITEC E160 or E220)
Supply 1 angle, 1 cover, assembly kit
B2116007
Sloping control panel E产品已添加到关注清单中
off-white RAL 9002
B2116307
Front / rear panel E, flat
For case without side panels.
Supply 1 front panel
B2116307
Front / rear panel E, flat产品已添加到关注清单中
off-white RAL 9002
141.6x55.6x3mm
B2116407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2116407
Front / rear panel Z1产品已添加到关注清单中
off-white RAL 9002
141.6x105.6x3mm
B2116507
Handle bar E
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply 2 side arms, 1 al-profile, antislipping device, lid, assembly kit
B2116507
Handle bar E产品已添加到关注清单中
off-white RAL 9002
B2116707
Infill panel E

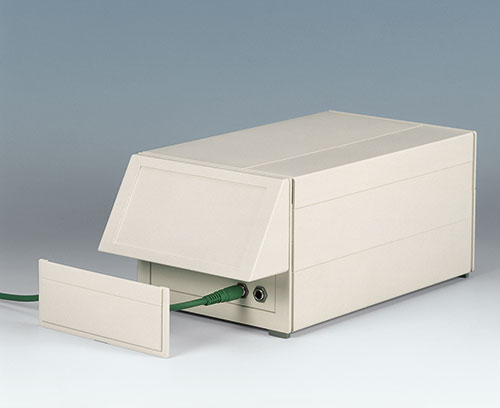

When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version E
Supply 1 front cover (for locking)
B2116707
Infill panel E产品已添加到关注清单中
off-white RAL 9002
142x55x5mm
B2129007
Sloping control panel D
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version D (for MEDITEC D160 or D220)
Supply 1 angle, 1 cover, assembly kit
B2129007
Sloping control panel D产品已添加到关注清单中
off-white RAL 9002
B2129307
Front / rear panel D, flat
For case without side panels.
Supply 1 front panel
B2129307
Front / rear panel D, flat产品已添加到关注清单中
off-white RAL 9002
271.6x55.6x3mm
B2129407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2129407
Front / rear panel Z1产品已添加到关注清单中
off-white RAL 9002
271.6x105.6x3mm
B2129507
Handle bar D
For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.
Supply 2 side arms, 1 Al-profile, antislipping device, lid, assembly kit
B2129507
Handle bar D产品已添加到关注清单中
off-white RAL 9002
B2129707
Infill panel D
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version D
Supply 1 front cover (for locking)
B2129707
Infill panel D产品已添加到关注清单中
off-white RAL 9002
272x55x5mm
B2133012
Wall mounting brackets
Wall mounting brackets for simple external wall assembly.
Supply 4 Wall mounting brackets, screws
B2133012
Wall mounting brackets产品已添加到关注清单中
volcano
B2134012
Stacking elements
Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.
Supply 4 stacking elements
B2134012
Stacking elements产品已添加到关注清单中
volcano
B2135017
Connectors
For secure connection of 2 side panels. Screwless assembly, simply pin and lock.
Supply 4 connectors
B2135017
Connectors产品已添加到关注清单中
off-white RAL 9002
