DIN 标准导轨接线盒
B2133012

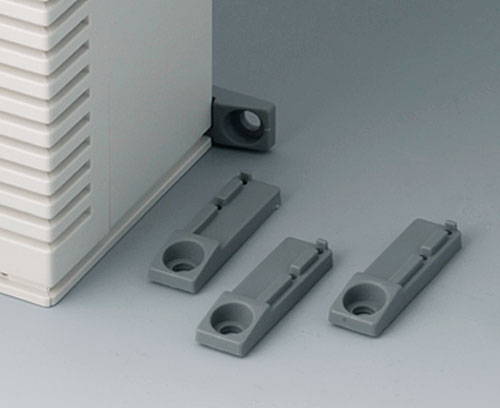

Wall mounting brackets
Wall mounting brackets for simple external wall assembly.
Supply4 Wall mounting brackets, screws
添加到购物车内
系统组件使产品完整
B2010007
L-shells D 220, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010007
L-shells D 220, without holes产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2010107
L-shells D 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010107
L-shells D 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2011007
L-shells D 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011007
L-shells D 160, without holes产品已添加到关注清单中
off-white RAL 9002
290x200x74mm
B2011107
L-shells D 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2011107
L-shells D 160, with holes for handle产品已添加到关注清单中
off-white RAL 9002
290x200x74mm
B2012007
L-shells E 220, without holes
Component as separate parts: L-shells without hole. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012007
L-shells E 220, without holes产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2012107
L-shells E 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012107
L-shells E 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2013007
L-shells E 160, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013007
L-shells E 160, without holes产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2013107
L-shells E 160, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of Eurocards 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2013107
L-shells E 160, with holes for handle产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2020005
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020005
Side trims 220, without ventilation产品已添加到关注清单中
lagoon
B2020007
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020007
Side trims 220, without ventilation产品已添加到关注清单中
off-white RAL 9002
B2021005
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021005
Side trims 220, with ventilation产品已添加到关注清单中
lagoon
B2021007
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021007
Side trims 220, with ventilation产品已添加到关注清单中
off-white RAL 9002
B2022005
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2022005
Side trims 160, without ventilation产品已添加到关注清单中
lagoon
B2022007
Side trims 160, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2022007
Side trims 160, without ventilation产品已添加到关注清单中
off-white RAL 9002
B2023005
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023005
Side trims 160, with ventilation产品已添加到关注清单中
lagoon
B2023007
Side trims 160, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.
Supply 2 side trims
B2023007
Side trims 160, with ventilation产品已添加到关注清单中
off-white RAL 9002
B2030007
Side panels 220, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030007
Side panels 220, without holes产品已添加到关注清单中
off-white RAL 9002
B2031007
Side panels 160, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.
Supply 2 side panel, set of screws
B2031007
Side panels 160, without holes产品已添加到关注清单中
off-white RAL 9002
B2210005
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2210005
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210007
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2210007
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210015
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2210015
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210017
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2210017
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210205
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2210205
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2210207
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2210207
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2210215
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2210215
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2210217
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2210217
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2211005
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2211005
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x74mm
B2211007
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2211007
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x74mm
B2211015
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2211015
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x74mm
B2211017
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2211017
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x74mm
B2211205
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2211205
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x124mm
B2211207
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2211207
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x124mm
B2211215
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2211215
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x124mm
B2211217
MEDITEC D 160, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2211217
MEDITEC D 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x200x124mm
B2212005
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2212005
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212007
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2212007
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212015
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2212015
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212017
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2212017
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212205
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2212205
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212207
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2212207
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212215
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2212215
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212217
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2212217
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2213005
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2213005
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2213007
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2213007
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2213015
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2213015
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2213017
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit and 4 case-feet
B2213017
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x74mm
B2213205
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2213205
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
B2213207
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2213207
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
B2213215
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2213215
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
B2213217
MEDITEC E 160, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit and 4 case-feet
B2213217
MEDITEC E 160, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x200x124mm
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 98 KB
- AutoCAD DWG-File 321 KB
- AutoCAD DXF-File 880 KB
Weight/1 part
14 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
