DIN 标准导轨接线盒
B2030007
Side panels 220, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply2 side panels, set of screws
添加到购物车内
系统组件使产品完整
B2010007
L-shells D 220, without holes
Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010007
L-shells D 220, without holes产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2010107
L-shells D 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2010107
L-shells D 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2012007
L-shells E 220, without holes
Component as separate parts: L-shells without hole. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012007
L-shells E 220, without holes产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2012107
L-shells E 220, with holes for handle
Component as separate parts: L-shells with hole for handle. Ideal for the instalation of Eurocards 100 x 220 mm or 100 x 160 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.
Supply 2 L-shells, incl. assembly kit, 4 case feet
B2012107
L-shells E 220, with holes for handle产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2020005
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020005
Side trims 220, without ventilation产品已添加到关注清单中
lagoon
B2020007
Side trims 220, without ventilation
Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2020007
Side trims 220, without ventilation产品已添加到关注清单中
off-white RAL 9002
B2021005
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021005
Side trims 220, with ventilation产品已添加到关注清单中
lagoon
B2021007
Side trims 220, with ventilation
Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.
Supply 2 side trims
B2021007
Side trims 220, with ventilation产品已添加到关注清单中
off-white RAL 9002
B2030007
Side panels 220, without holes
Side panels without hole for 50 mm additional height. Suitable for Meditec D220/E220.
Supply 2 side panels, set of screws
B2030007
Side panels 220, without holes产品已添加到关注清单中
off-white RAL 9002
B2135017
Connectors
For secure connection of 2 side panels. Screwless assembly, simply pin and lock.
Supply 4 connectors
B2135017
Connectors产品已添加到关注清单中
off-white RAL 9002
B2210005

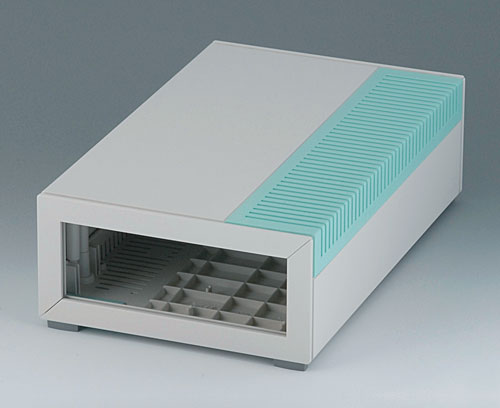

MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2210005
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210007
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2210007
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210015
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2210015
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210017
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2210017
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x74mm
B2210205
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2210205
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2210207
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2210207
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2210215
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2210215
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2210217
MEDITEC D 220, without handle bar
Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2210217
MEDITEC D 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
290x260x124mm
B2212005
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet
B2212005
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212007
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet
B2212007
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212015
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet
B2212015
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212017
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet
B2212017
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x74mm
B2212205
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2212205
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212207
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2212207
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212215
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet
B2212215
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
B2212217
MEDITEC E 220, without handle bar
Complete case. Ideally suited to accommodate single-Eurocards 100 x 220 mm or 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.
Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), 2 side panels, assembly kit, 4 case-feet
B2212217
MEDITEC E 220, without handle bar产品已添加到关注清单中
off-white RAL 9002
160x260x124mm
需加附件使产品完整
B2116007
Sloping control panel E
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version E (for MEDITEC E160 or E220)
Supply 1 angle, 1 cover, assembly kit
B2116007
Sloping control panel E产品已添加到关注清单中
off-white RAL 9002
B2116307
Front / rear panel E, flat
For case without side panels.
Supply 1 front panel
B2116307
Front / rear panel E, flat产品已添加到关注清单中
off-white RAL 9002
141.6x55.6x3mm
B2116407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2116407
Front / rear panel Z1产品已添加到关注清单中
off-white RAL 9002
141.6x105.6x3mm
B2116707
Infill panel E
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version E
Supply 1 front cover (for locking)
B2116707
Infill panel E产品已添加到关注清单中
off-white RAL 9002
142x55x5mm
B2129007
Sloping control panel D
Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.
Version D (for MEDITEC D160 or D220)
Supply 1 angle, 1 cover, assembly kit
B2129007
Sloping control panel D产品已添加到关注清单中
off-white RAL 9002
B2129307
Front / rear panel D, flat
For case without side panels.
Supply 1 front panel
B2129307
Front / rear panel D, flat产品已添加到关注清单中
off-white RAL 9002
271.6x55.6x3mm
B2129407
Front / rear panel Z1
For cases with 1 side panel per side.
Supply 1 front panel Z1
B2129407
Front / rear panel Z1产品已添加到关注清单中
off-white RAL 9002
271.6x105.6x3mm
B2129707
Infill panel D
When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.
Version D
Supply 1 front cover (for locking)
B2129707
Infill panel D产品已添加到关注清单中
off-white RAL 9002
272x55x5mm
“挂墙支架” 配件
B2133012
Wall mounting brackets
Wall mounting brackets for simple external wall assembly.
Supply 4 Wall mounting brackets, screws
B2133012
Wall mounting brackets产品已添加到关注清单中
volcano
“螺钉” 附件
A9199008
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.
Supply 4 screws
A9199008
Set of screws产品已添加到关注清单中
附件
B2134012
Stacking elements
Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.
Supply 4 stacking elements
B2134012
Stacking elements产品已添加到关注清单中
volcano
Customising options for B2030007
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- 技术数据
-
图纸或资料
- 采购有关数据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 161 KB
- AutoCAD DWG-File 330 KB
- AutoCAD DXF-File 912 KB
Weight/1 part
112 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 B2030007请务必索取报价！
