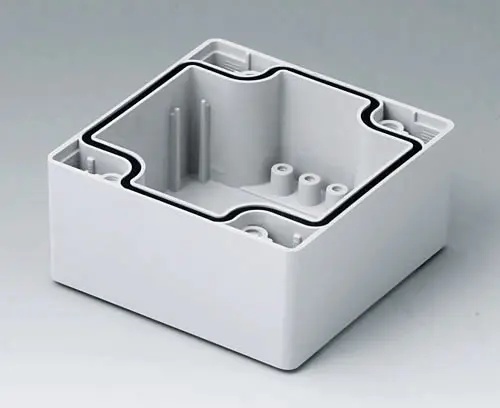

C2080802 Case shell 80, with groove

C2080802

Case shell 80, with groove

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with groove

  • 适配系统部件
  • 按客户要求修改加工

系统组件使产品完整

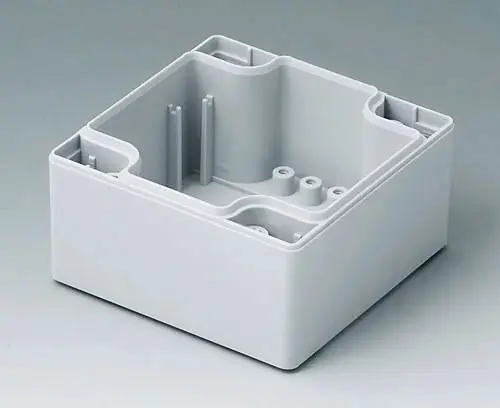

C1080802 Case shell 80, with tongue

C1080802

Case shell 80, with tongue Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with tongue

关闭

C1080802

Case shell 80, with tongue
产品已添加到关注清单中
PC (UL 94 HB)
light grey RAL 7035
80x80x40mm

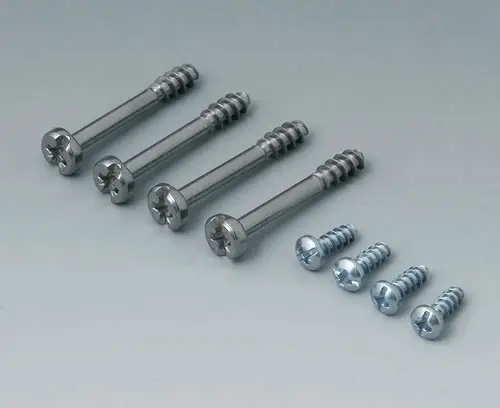

C2299001 Assembly kit

C2299001

Assembly kit Each 4 screws for case assembly, and for mounting PCBs.

Supply 1 assembly kit

关闭

C2299001

Assembly kit
产品已添加到关注清单中

需加附件使产品完整

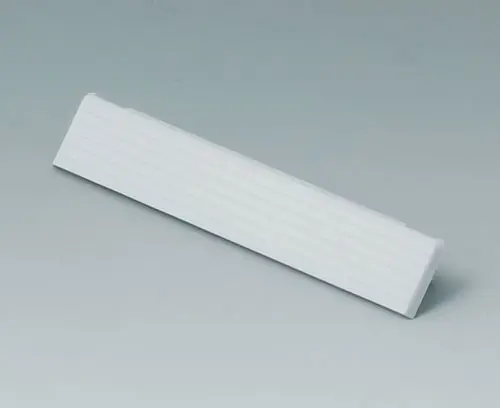

C2200801 Cover strips 80, without holes

C2200801

Cover strips 80, without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

关闭

C2200801

Cover strips 80, without holes
产品已添加到关注清单中
PC (UL 94 HB)
light grey RAL 7035
C2201082 Cover strips 80

C2201082

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201082

Cover strips 80
产品已添加到关注清单中
PC (UL 94 HB)
silver grey RAL 7001
C2201084 Cover strips 80

C2201084

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201084

Cover strips 80
产品已添加到关注清单中
PC (UL 94 HB)
red RAL 3020

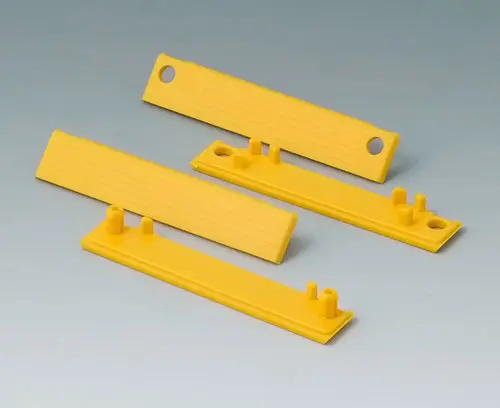

C2201085 Cover strips 80

C2201085

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201085

Cover strips 80
产品已添加到关注清单中
PC (UL 94 HB)
yellow RAL 1023

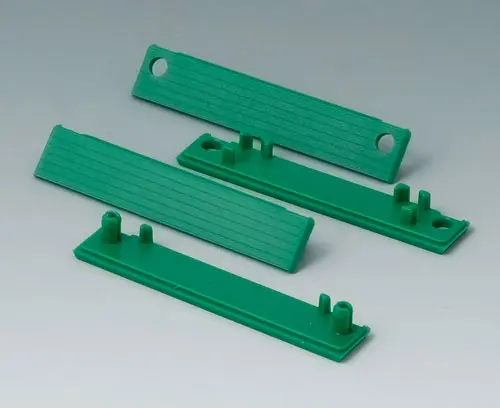

C2201086 Cover strips 80

C2201086

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201086

Cover strips 80
产品已添加到关注清单中
PC (UL 94 HB)
green RAL 6024
C2201087 Cover strips 80

C2201087

Cover strips 80 Optional supplies to the light grey coloured standard versions. Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug.

Supply 2 cover strips with holes, 2 cover strips without holes

关闭

C2201087

Cover strips 80
产品已添加到关注清单中
PC (UL 94 HB)
blue RAL 5017
C2210801 Cover strips 80, with holes

C2210801

Cover strips 80, with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

关闭

C2210801

Cover strips 80, with holes
产品已添加到关注清单中
PC (UL 94 HB)
light grey RAL 7035

“保护等级” 附件

C2299040 Security plug

C2299040

Security plug For use with lead tags.

Supply 1 plug

关闭

C2299040

Security plug
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035

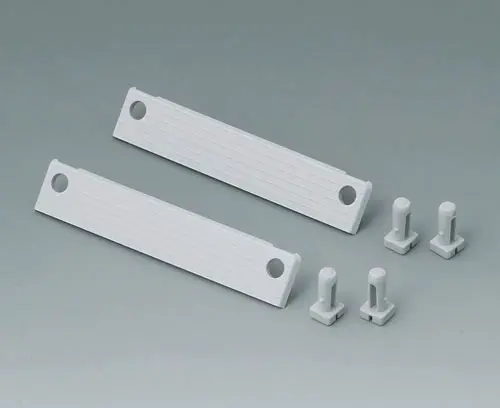

C2299048 Security kit width 80

C2299048

Security kit width 80 For use with lead tags.

Supply 4 plugs, 2 cover strips with holes for the top

关闭

C2299048

Security kit width 80
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2306917

Pressure equalisation element M6x0.75
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

关闭

C2310917

Pressure equalisation element M10x1
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56

“挂墙支架” 配件

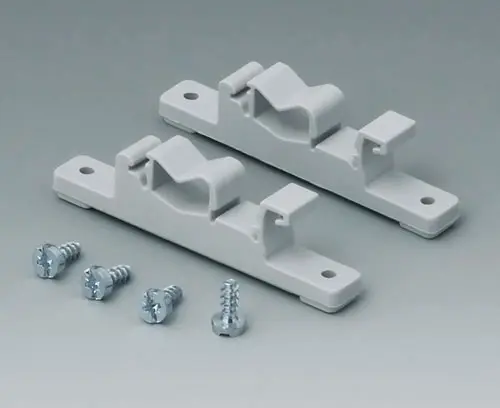

C2201088 Fastening elements to DIN-Rails

C2201088

Fastening elements to DIN-Rails For fastening the cases to DIN-rails according to DIN EN 60 715 TH35. For ROBUST-BOX width 80.

Supply 2 fastening elements, assembly kit

关闭

C2201088

Fastening elements to DIN-Rails
产品已添加到关注清单中
PA 6
light grey RAL 7035
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

关闭

C2299028

Wall mounting brackets
产品已添加到关注清单中
PA 6 (UL 94 HB)
light grey RAL 7035

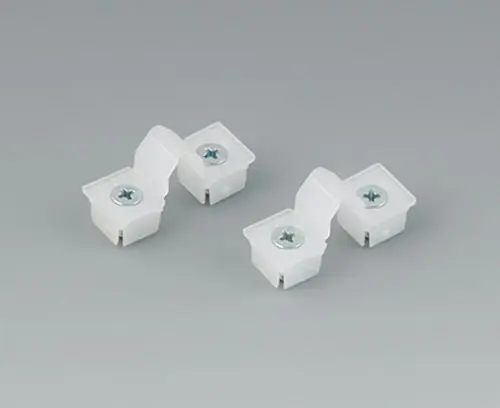

C2299031 Securing hinge for the cover

C2299031

Securing hinge for the cover For securing the cover (top part) when opening the enclosure.

Use with ROBUST BOX: the cover retention device can be mounted either on the right, left, top or bottom. Not suitable for sizes 200 x 300 mm and 240 x 360 mm.

Use with SOLID BOX: pre-moulded mounts for installation on the long sides of the bottom and top parts.

Supply 2 securing hinges

关闭

C2299031

Securing hinge for the cover
产品已添加到关注清单中
PP
natural-coloured

“螺钉” 附件

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
产品已添加到关注清单中
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
产品已添加到关注清单中
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

关闭

A0308132

Self-tapping screw 3 x 8 mm (T10)
产品已添加到关注清单中
Stainless steel

附件

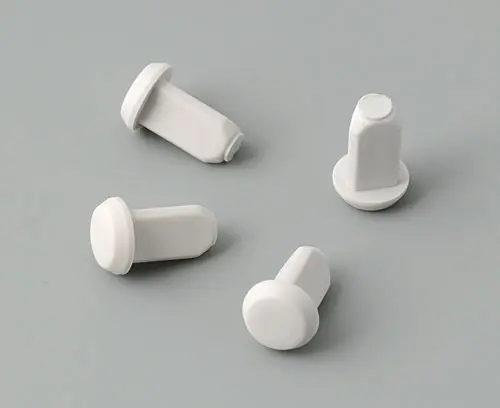

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

关闭

C2299018

Case feet
产品已添加到关注清单中
TPE (UL 94 HB)

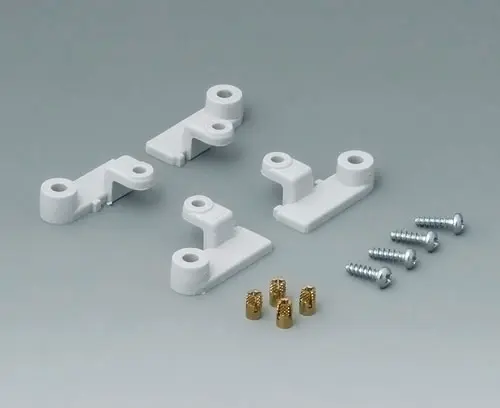

C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 80 mm and width 160 mm.

Supply 4 PCB support, assembly kit (threaded bushes, screws)

关闭

C2299068

PCB support
产品已添加到关注清单中
PC (UL 94 HB)
light grey RAL 7035

Customising options for C2080802

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
light grey RAL 7035
Length
80 mm
Width
80 mm
Height
40 mm
电路板长度,上盒
40 mm
电路板宽度,上盒
65 mm
Keypad length
42.4 mm
Keypad width
65.4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
91 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
